13MM-M100-4+55CM-520-33-O11-T15-P-6

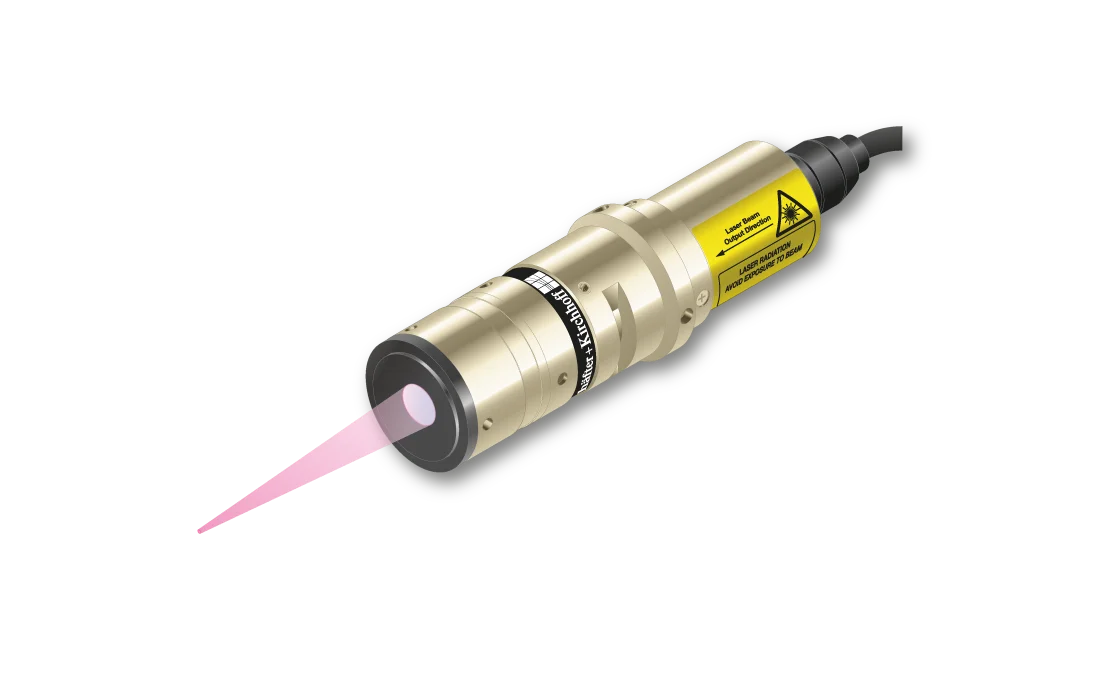

Laser Macro Focus Generator with approx. circular beam profile

13MM-M100-4+55CM-520-33-O11-T15-P-6

Macro
Focus

Features

Laser spot with approx. circular beam profile and extended depth of focus.

Spot diameter: 0.027 x 0.021 mm
Wavelength: 520 nm
Working distance: 84 mm
Depth of focus: 1.45 mm

Description

The laser diode beam source type 13MM-M100-4+55CM-520-33-O11-T15-P-6 produces a circular laser spot with extended depth of focus. The beam profile is approx. Gaussian. More precisely it has an elliptical intensity distribution clipped by a circular aperture.

The laser has integrated electronics type P with micro-controller for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.

Technical data

13MM-M100-4+55CM-520-33-O11-T15-P-6

Series

13MM

Order Code

13MM-M100-4+55CM-520-33-O11-T15-P-6

Line profile

Gaussian Intensity Distribution

Wavelength

520 +10/-5 nm

Laser output power

33 mW

Laser safety class

3B

Focussing range

80-110 mm

Working distance

84 mm

Spot height

0.021 mm

Spot width

0.027 mm

Depth of focus

1.45 mm

Diameter laser module

25/28 mm

Module length

84.3 mm

Installation length

198.3 mm

Cable length

1.5 m

Connector type

Lumberg SV50 IEC 61076-2-106

Supply voltage

5 ± 0.2 V

Max. current consumption

0.5 A

Working temperature

15 - 40 °C

Modulation inputs

Analog

TTL

Input resistance

9 kOhm

9 kOhm

Max. modulation frequency

0.01 kHz

250 kHz

Modulation delay ON/OFF

3000/3000 µs

0.5/0.2 µs

Rise / Fall time

40000/40000 µs

0.5/0.5 µs

Accessories

50HD-15

Hex key WS 1.5

9D-12

Screwdriver WS 1.2

13MK-25-36-10-F

13MK-25-36-10-F

Mounting Console with flat base plate

13MK-25-36-10-M

13MK-25-36-10-M

Mounting Console with base plate with dovetail profile

PS051003E

Power Supply 5 V
