48AT-A

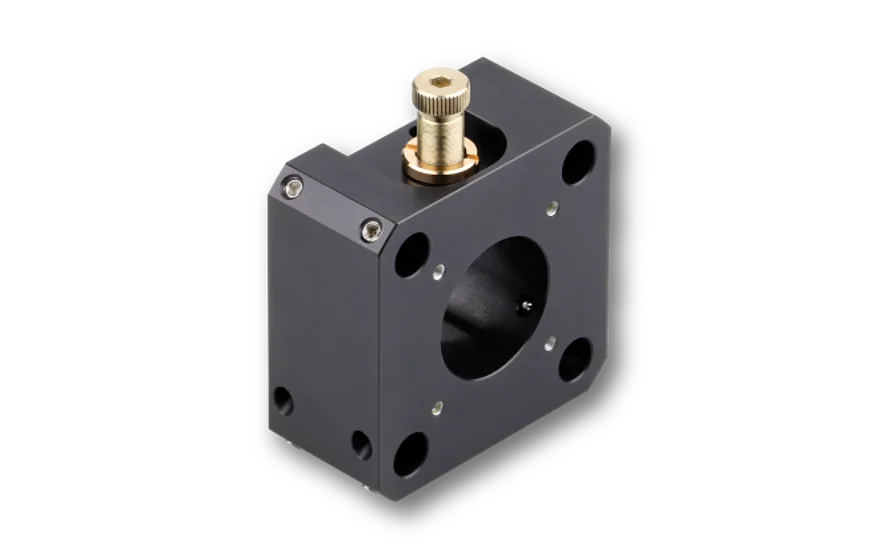

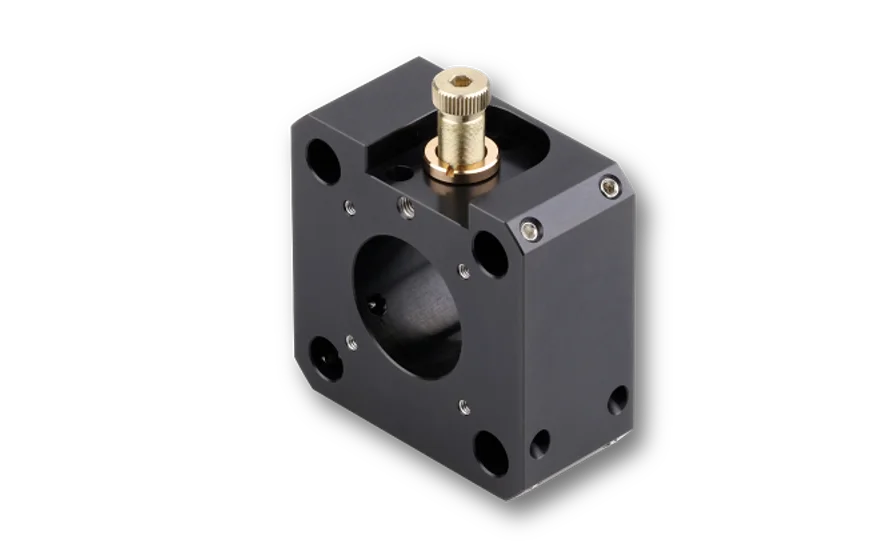

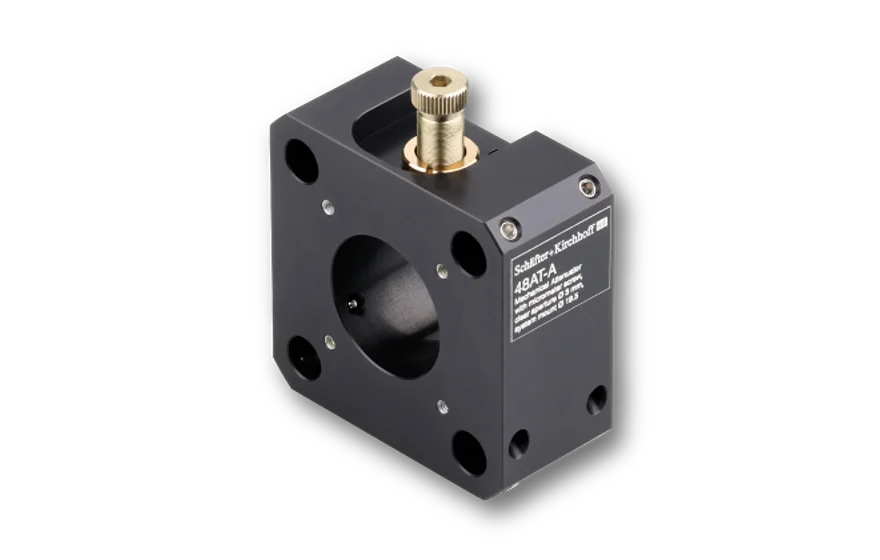

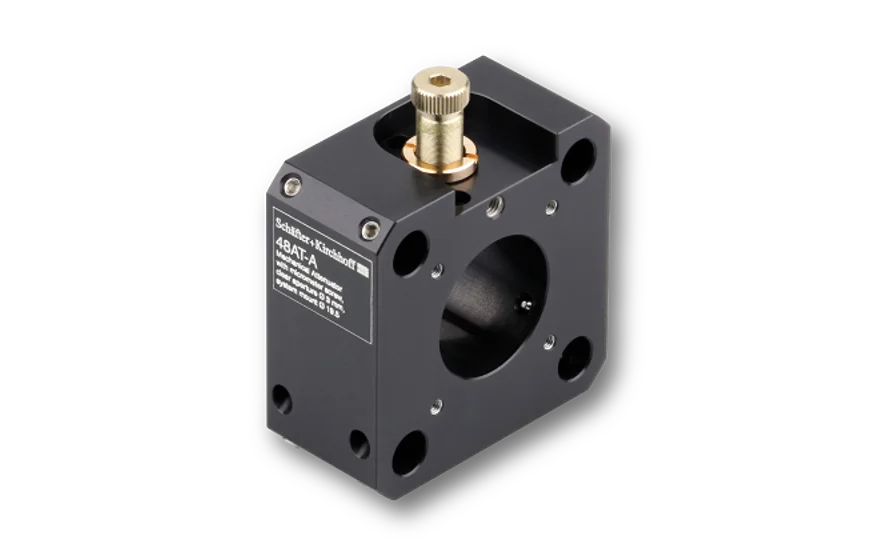

Mounting plate with integrated attenuator for the Schäfter+Kirchhoff multicube™ system

48AT-A

48AT-A

48AT-A

48AT-A

Features

Mounting plate with integrated attenuator for the Schäfter+Kirchhoff multicube™ system.

The attenuator allows for power attenuation in combination with a single-mode fiber coupling. The clear aperture is Ø 5 mm.

For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.

Description

Mounting plate with integrated attenuator for the Schäfter+Kirchhoff multicube™ system.

The attenuator allows for power attenuation in combination with a single-mode fiber coupling. The clear aperture is Ø 5 mm.

For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.

48AT-A

Technotes

Multicube Compatability
Compatability to other cage systems

FAQ

48AT
- Can I use the 48AT attenuator with multimode fibers?
  No you should not. If used with single-mode fibers the fibers serve as a mode filter and the exiting beam is still Gaussian with reduced power. In case of a multimode fiber not only the power is attenuated but also the intensity distribution ex fiber is affected.

Downloads

980120111901.pdf (Dimensional drawing)
