Features

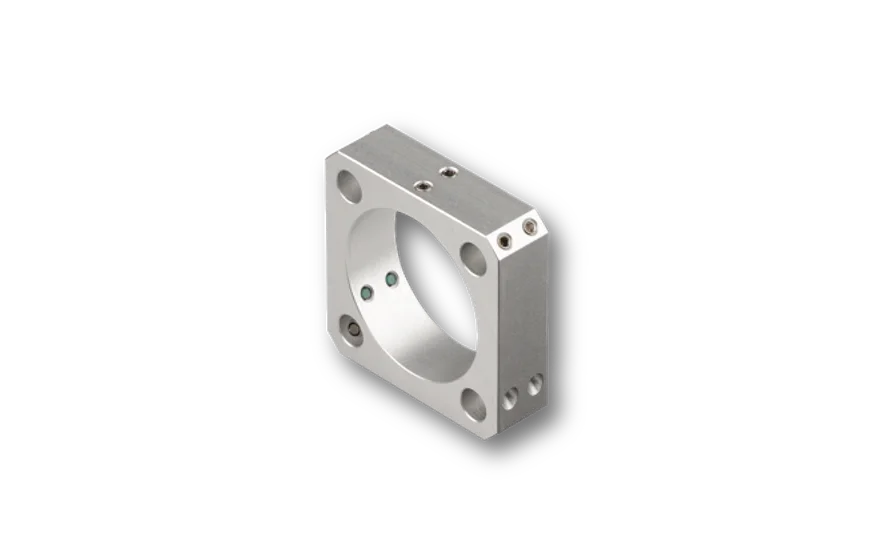

Mounting plate for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 32 mm outer diameters such as fiber collimators.
Technical data
48MC-MP-32
Order Code
48MC-MP-32
Dimensions
42 x 42 x 12 mm
Fitting bore
Ø 32 mm
Material
Black anodized aluminum
Weight
25.5 g
Dimensions (for a complete dimensional drawing please refer to the downloads section)
FAQ
- Compatability of the multicube system
- Is my system compatible to established 30 mm cage systems or microbench systems?The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
- Is my system compatible to established 60 mm cage systems?
The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.
If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.
