5AN-2.5-05

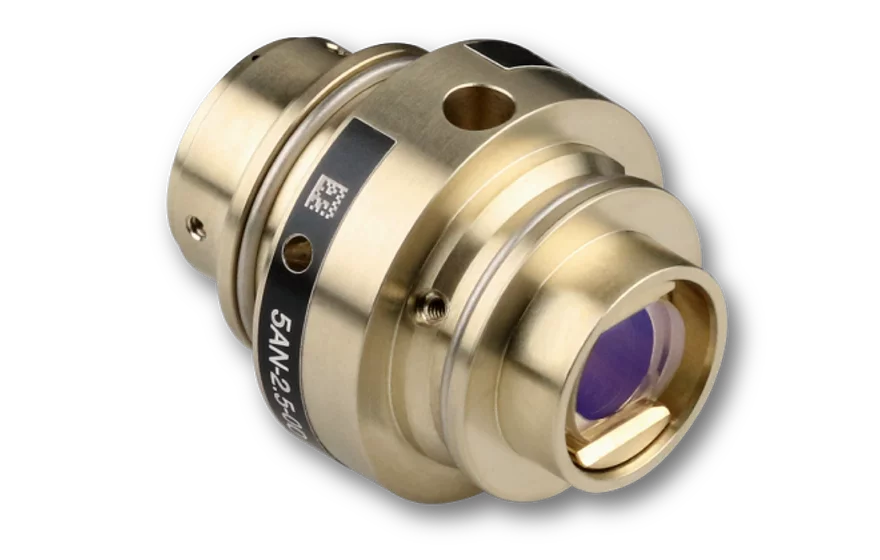

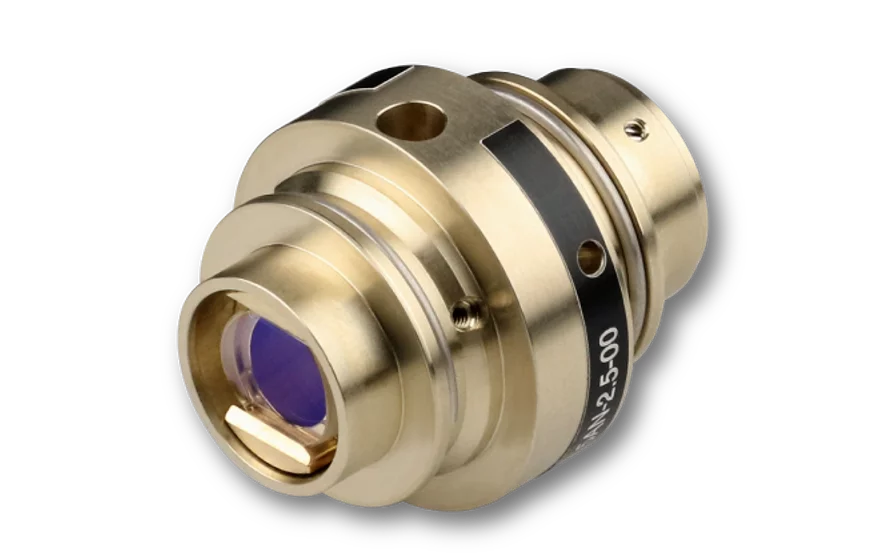

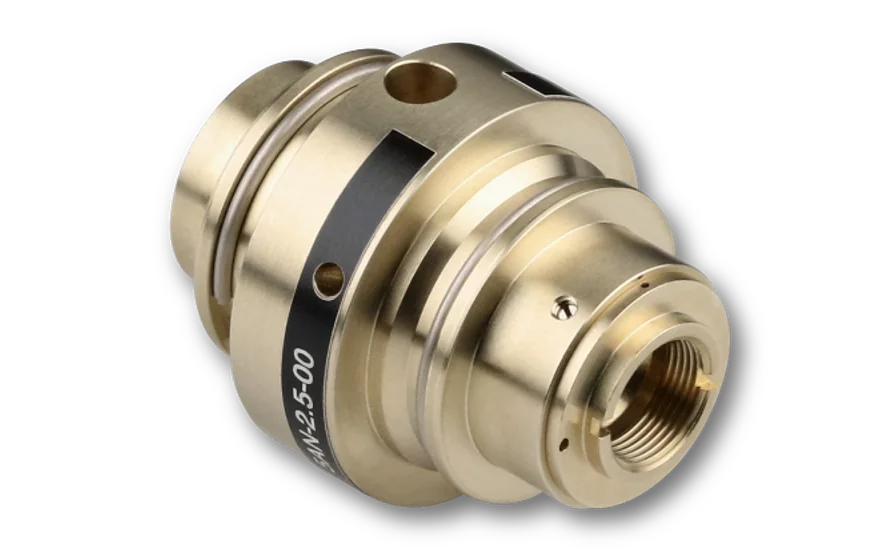

Anamorphic beam-shaping optics with form factor 0.4

5AN-2.5
5AN-2.5
5AN-2.5
5AN-2.5
5AN-2.5
5AN-2.5
5AN-2.5
5AN-2.5

Features

Anamorphic optics transform a collimated laser beam with elliptical cross section into a circular beam or vice versa.
  • Form factor 0.4
  • Wavelength range: 600 - 1020 nm
  • Integrated astigmatism correction
  • No lateral beam shift or beam deviation as with anamorphic prism pairs
  • Clear aperture: Ø 6.5 mm
  • Diffraction-limited optics pair
  • Ø 19.5 mm system mount: Full integration with ­­­multi­cube™ system / 30 mm cage system, collimators and adapters

Description

A circular beam profile may be preferred over the elliptical profile usually provided by laser diodes or by tapered amplifiers. Anamorphic Beam-shaping ­Optics act one-dimensionally on the profile of the colli­mated beam. They can be used to

  • Adjust the larger beam diameter to the dimension of the smaller one, producing a radially symmetric beam
  • Adjust the smaller beam diameter to the dimension of the larger one, producing a radially symmetric beam
  • Transform a circular beam into an elliptical beam
  • Enlarge one elliptical axis to produce a beam with a higher axis ratio

The Anamorphic Beam-shaping ­Optics type 5AN are cylinder lens systems and, therefore, can be additionally used to correct the astigmatic difference ∆As of the laser diode or tapered amplifier through a refocusing of the optical system. Coupling efficiencies to single-mode fibers of 80% or more are possible when using Anamorphic Beam-shaping ­Optics (depending on the beam characteristics of the laser diode or tapered amplifier).

Form Factor
The anamorphic effect is described by the form factor F, which ­indicates the relative diameter change of the parallel beam.
The target value is calculated from the ratio the beam diameters Ø⊥ and Ø|| of the ­collimated beam.

5AN-2.5

Technical data

5AN-2.5-05

Series
Order Code
5AN-2.5-05
Form factor
0.4
AR coating
05
Wavelength range
600 - 1020 nm
Clear aperture
Ø 6.5 mm
Mount
System mount
System mount

Ø 19.5 mm
Ø 19.5 mm
Outer diameter
Ø 25 mm
Housing material
Nickel silver / steel
Weight
68 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

5AN-2.5

Downloads

Dimensional drawing
930210390401.pdf (Dimensional drawing)
STEP model
930210390401.stp (STEP model)
STEP model
930210390401.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.
