5BL0.8-5

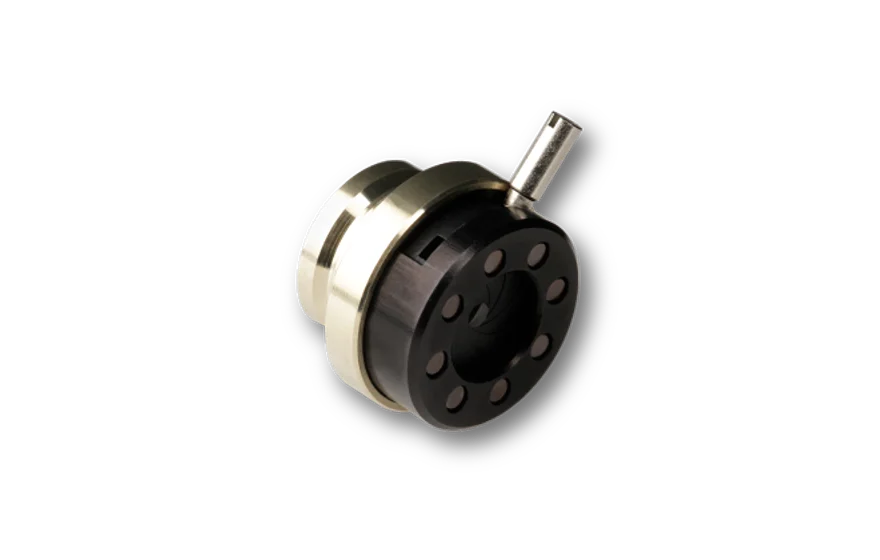

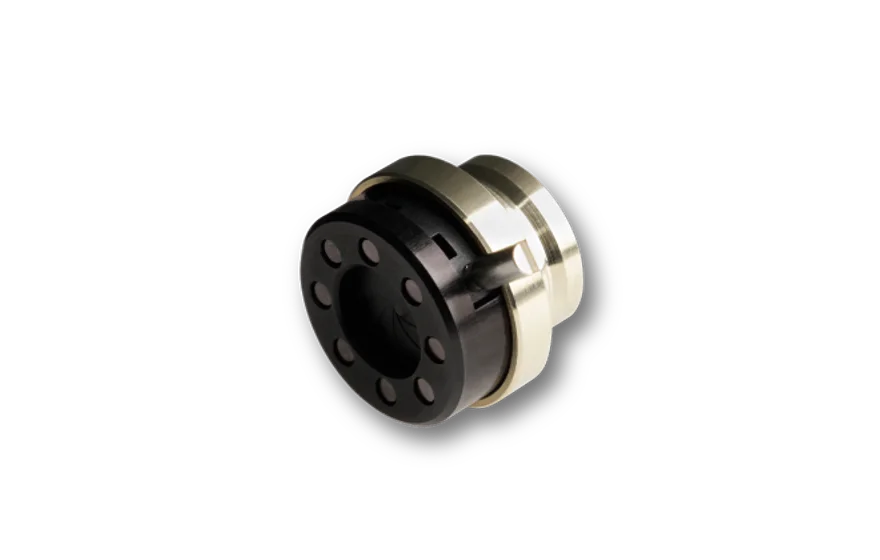

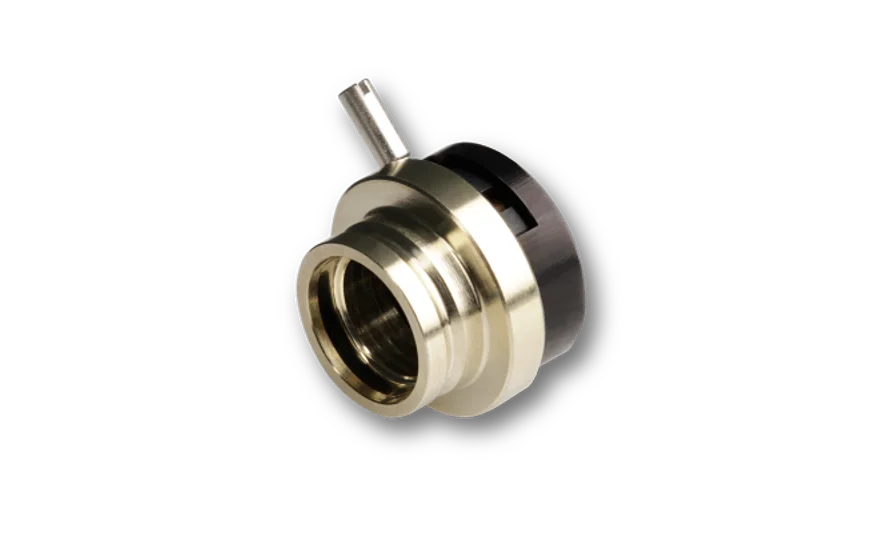

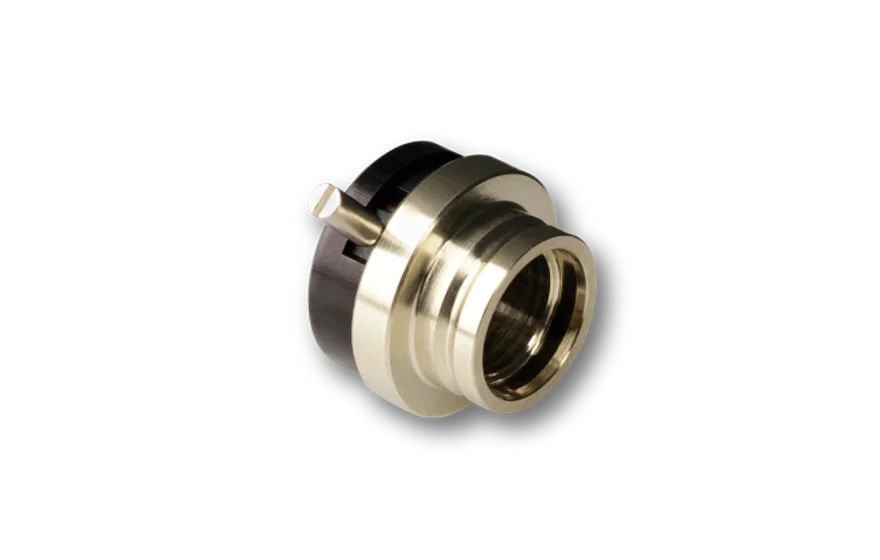

Iris diaphragm for fiber collimators with diameter Ø 12 mm

5BL08-5
5BL08-5
5BL08-5
5BL08-5
5BL08-5
5BL08-5
5BL08-5
5BL08-5

Features

Iris diaphragm with an variable aperture for fiber collimators series 60FC with an outer diameter Ø 12 mm.
  • System mount Ø 8 mm
  • min. aperure Ø 0.8 mm
  • max. aperture Ø 5 mm
Please note: In case of use with a single mode / PM-fiber, the Gaussian beam from the fiber collimator is truncated by the iris diaphragm or by the pinhole
