Features
Semi-telecentric laser line with constant line length of 4.8 mm and extended depth of focus.- Line length: 4.8 mm
- Line width: 140 µm
- Wavelength: 639 nm
- Working distance: 139 mm
- Depth of focus: 64.1 mm
Description

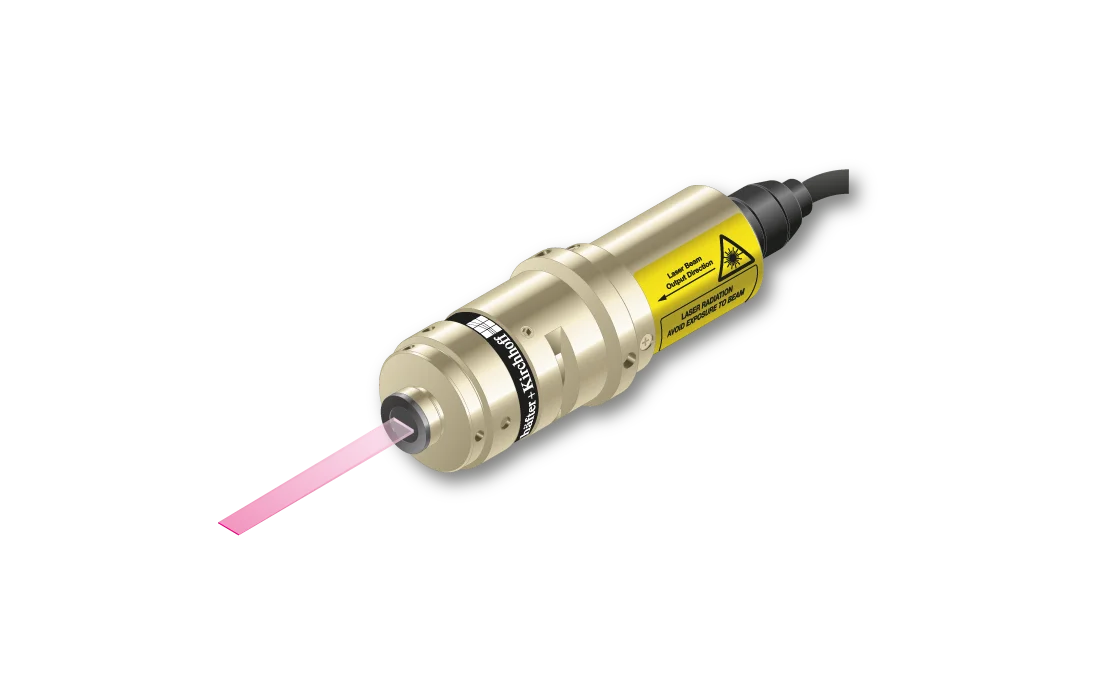

The laser diode beam source type 5LTM-150-11+55CM-639-13-H18-A8-C-6 produces a semi-telecentric laser line with 4.8 mm line length and extended depth of focus. The intensity profile is Gaussian in line direction clipped by an aperture with an edge intensity of 40 %. The line width is constant along the laser line. Across the laser line the intensity distribution is approx. Gaussian.
The laser has integrated electronics type C for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
For this laser type the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.
Technical data
5LTM-150-11+55CM-639-13-H18-A8-C-6
Series
5LTM
Order Code
5LTM-150-11+55CM-639-13-H18-A8-C-6
Line profile
Gaussian Intensity Distribution
Line type
Laser Macro Line
Wavelength
639 +10/-10 nm
Laser output power
13 mW
Laser safety class
3B
Focussing range
139-139 mm
Working distance
139 mm
Line length
4.8 mm
Line width
0.14 mm
Depth of focus
64.1 mm
Edge intensity
40 %
Diameter laser module
25/28 mm
Module length
78.5 mm
Installation length
247.5 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.2 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
100 kHz
100 kHz
Modulation delay ON/OFF
1/0.5 µs
2/1 µs
Rise / Fall time
3/2 µs
3/2 µs
Accessories
Screwdriver WS 1.2
Mounting Console with flat base plate
Mounting Console with base plate with dovetail profile
Power Supply 5 V
