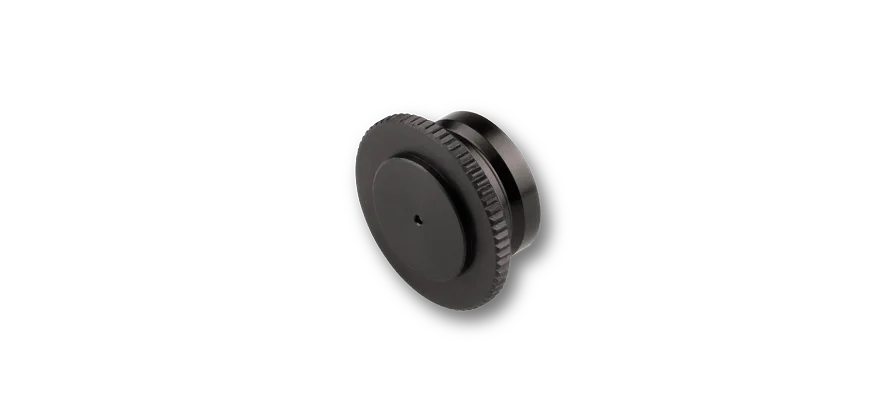

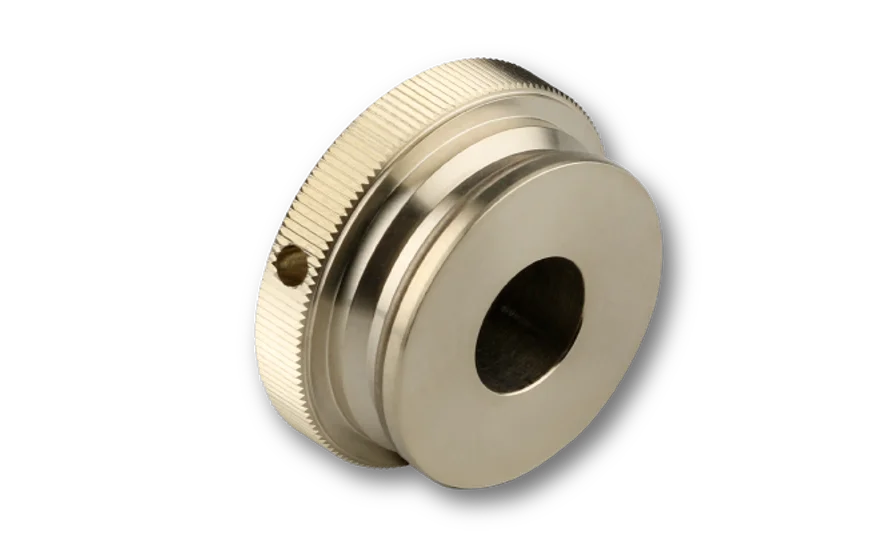

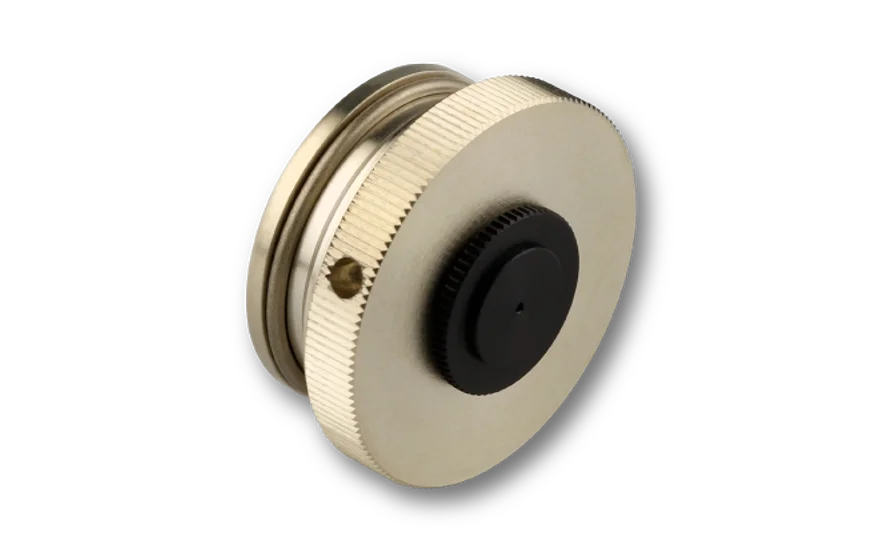

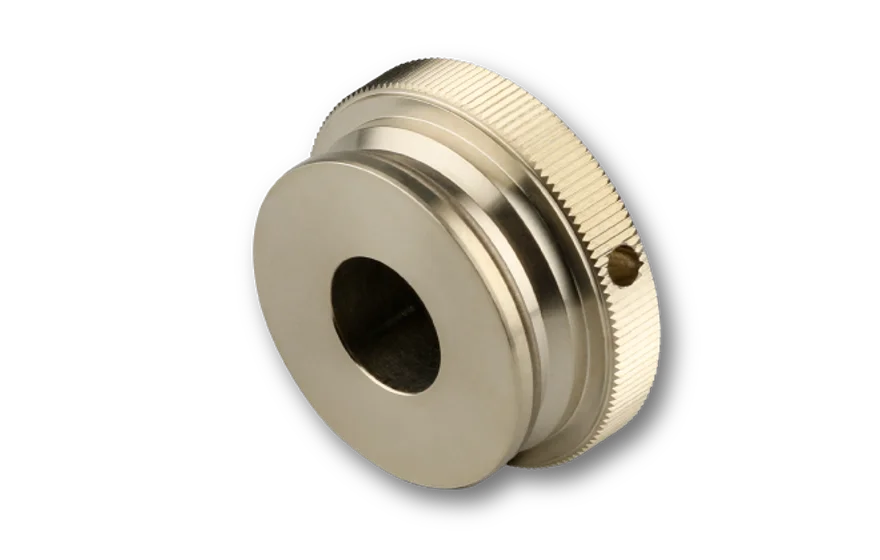

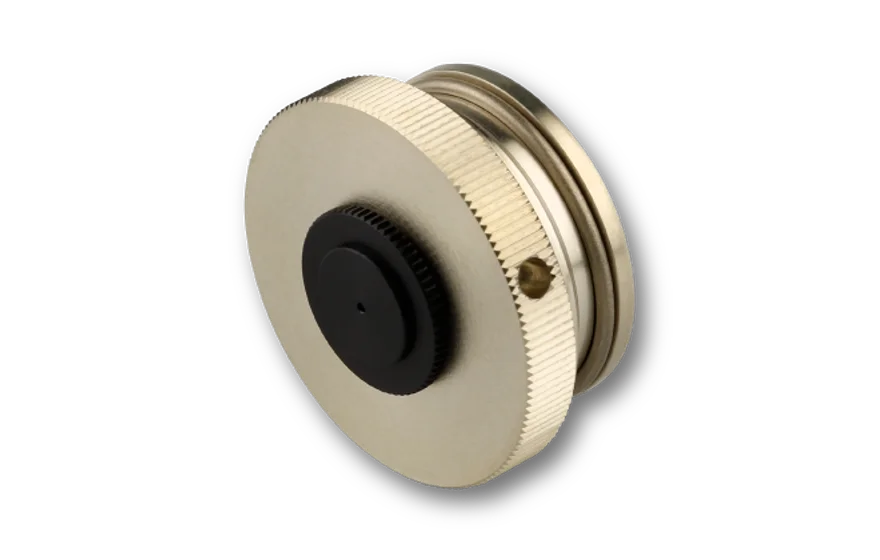

Apertures 13H

for Collimators with Ø 25 mm

13H05

Representative product images. Individual product images are found on the individual product pages.

Features

Apertures can be attached to Fiber Collimators of series 60FC-L and 60FC-T with outer Ø 25 mm in order to narrow down the collimated beam. They are available with fixed diameters Ø 0.5 mm to Ø 8 mm

Order options

Order Code	For Series	For Diameter	Aperture Ø	Mounting
13H0.4	60FC-L/T/Q	25 mm	0.4 mm	System mount Ø 19.5 mm
13H0.5	60FC-L/T/Q	25 mm	0.5 mm	System mount Ø 19.5 mm
13H0.8	60FC-L/T/Q	25 mm	0.8 mm	System mount Ø 19.5 mm
13H1.0	60FC-L/T/Q	25 mm	1.0 mm	System mount Ø 19.5 mm
13H2.0	60FC-L/T/Q	25 mm	2.0 mm	System mount Ø 19.5 mm
13H2.5	60FC-L/T/Q	25 mm	2.5 mm	System mount Ø 19.5 mm
13H3.0	60FC-L/T/Q	25 mm	3.0 mm	System mount Ø 19.5 mm
13H4.5	60FC-L/T/Q	25 mm	4.0 mm	System mount Ø 19.5 mm
13H5.0	60FC-L/T/Q	25 mm	5.0 mm	System mount Ø 19.5 mm
13H8.0	60FC-L/T/Q	25 mm	8.0 mm	System mount Ø 19.5 mm

Other diameters on request

Accessories

50HD-15

Hex key WS 1.5

Overview

Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
350 - 700 nm	01		01	01	01
390 - 670 nm													33
400 - 700 nm								01	01			01
420 - 700 nm										26	26
450 - 700 nm								04	04		04
600 - 1050 nm	02			02
600 - 1100 nm			02		02
630 - 980 nm													10
630 - 1080 nm							10				54
650 - 1050 nm								02	02
650 - 1150 nm		07
750 - 1550 nm									37	37
980 - 1550 nm						08	08						08
1050 - 1650 nm			03
1050 - 1550 nm	03			03	03
1050 - 1620 nm								03
Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
