Laser Beam Couplers series 60SMF-MAV

with fine threaded adjustment screws - for coupling into single-mode and polarization-maintaining fiber cables

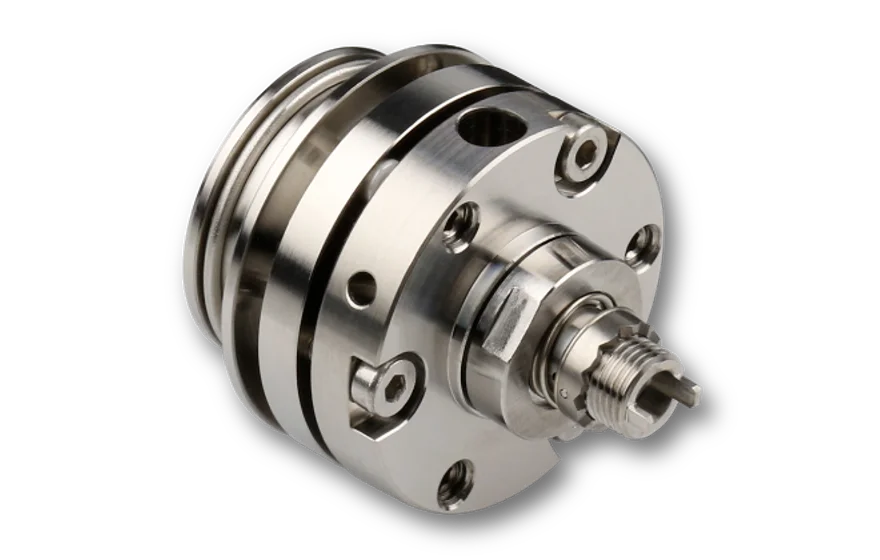

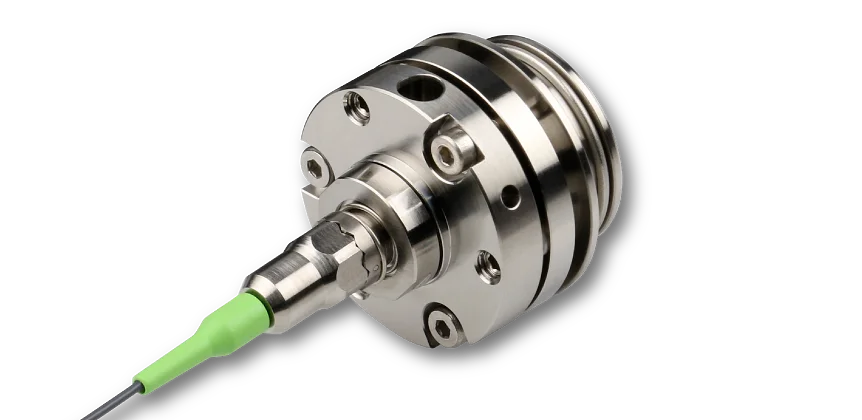

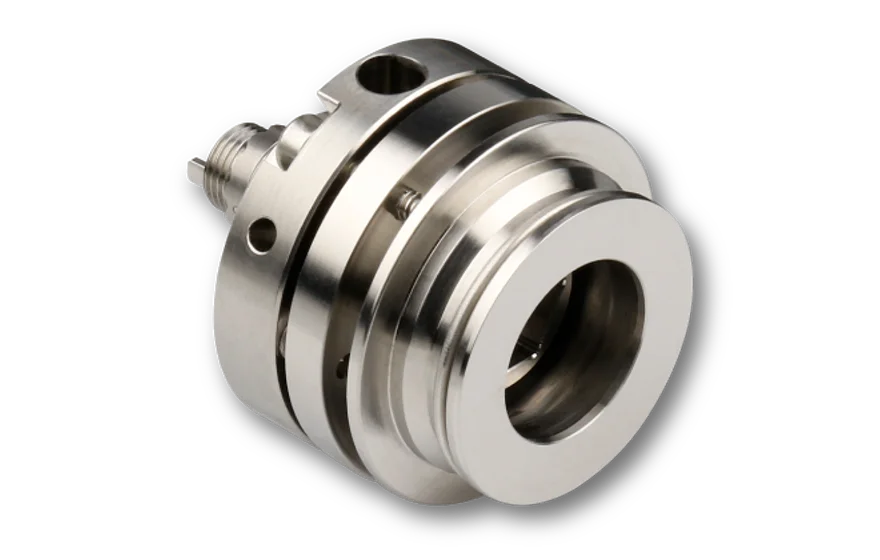

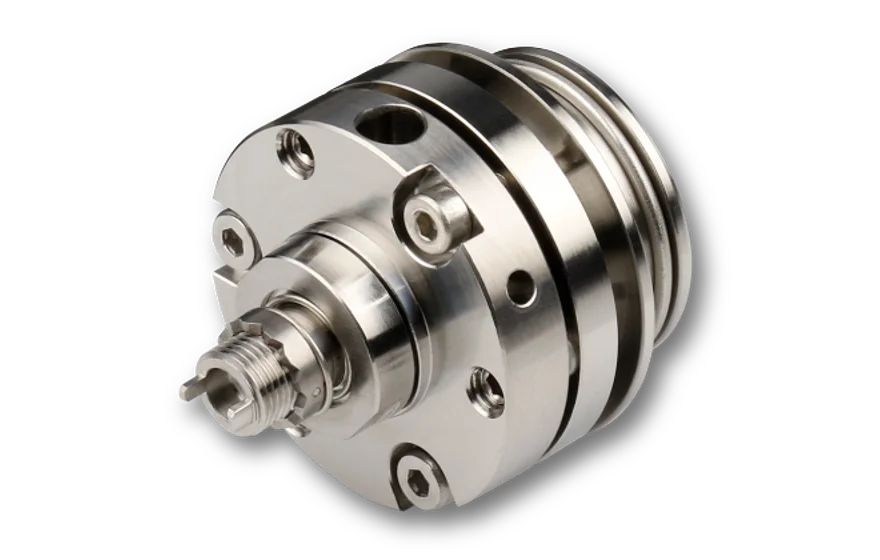

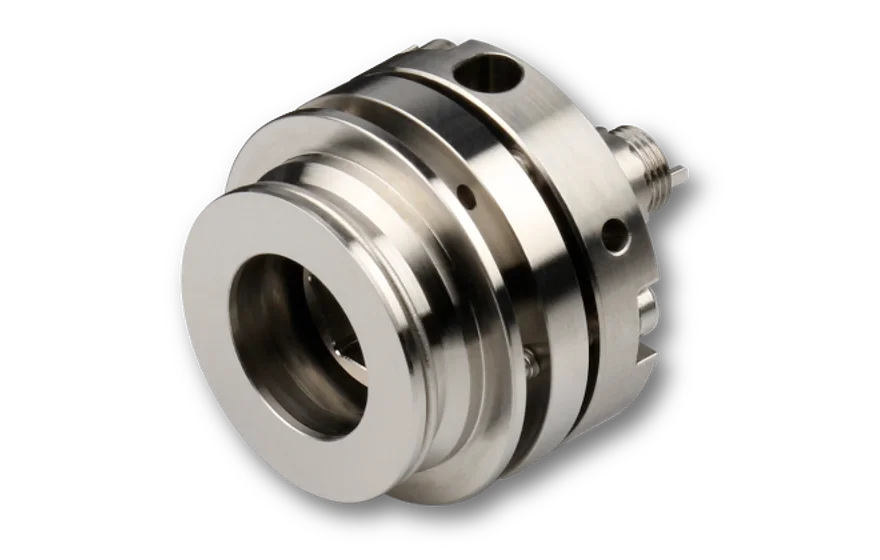

Representative product images. Individual product images are found on the individual product pages.


The fiber couplers series 60SMF with fine threaded adjustment screws are an improved, advanced version of the fiber couplers 60SMS. They are high precision fiber couplers optimized for high coupling efficiency, high pointing stability and long-term stability and provide efficient coupling of ­collimated laser radiation into ­single-mode and PM fiber cables.
  • All appreciated benefits of the well-established 60SMS laser beam coupler including its very high pointing stability and as well as the proven long-term stability.
  • Ceramic bearings and adjustment screws with fine thread to ensure an even more precise and easy adjustment.

  • For single-mode or PM fiber cables
  • System mount Ø 19.5 mm
  • Integrated TILT and focusing adjustment
  • Focal lengths up to 18 mm
  • Choice of aspheres, monochromats, achromats and apochromats
  • Various AR coatings for UV - IR
  • Mini AVIM type receptacle (PC or APC): compatible with fiber connectors type mini AVIM ® and midi AVIM ®
  • Amagnetic titanium
  • With integrated TILT adjustment


The fiber couplers series 60SMF with fine threaded adjustment screws are an improved, advanced version of the fiber couplers series 60SMS.They are designed for compact and long-term stable coupling of single-mode laser radiation into a single-mode or polarization-maintaining fiber. For multimode applications please use the series 60FC-A19.5 fiber couplers.

An optics for each application
A large variety of coupling optics allows that the optimum focal length and the best lens type for a single wavelength (asphere, monochromat) or a wavelength range (achromat or apochromat) can be selected for each application. All lenses are AR-coated. For an ideal Gaussian beam and standard fibers you can reach coupling efficiencies up to 80%.

High long-term stability
It‘s compact size as well as the high-resolution alignment mechanisms allow for a straight-forward, intuitive coupling procedure. The result is a fiber coupling with high thermal stability, pointing stability, that is vibration and shock-insensitive. Long-term stability tests (see figure on the right) have shown a power stability better than 3% for a temperature range of 15-35°C.

6 Degrees of freedom*
In order to achieve optimum coupling efficiency the fiber coupler needs to provide certain degrees of freedom. You need to adjust

  • the angle between laser beam and lens/fiber end-face
  • the z-position of the lens
  • adjust the polarization axis of the fiber to that of the laser source
  • center the lens with respect to the laser beam

The fiber coupler provides all degrees of freedom necessary. It has a TILT adjustment, an independent focus adjustment, can be rotated 360°, and allows for lateral adjustment* using e.g. the adapter 60A19.5-F.
The TILT adjustment is used to maximize the lateral overlap between the mode field of the fiber and the focussed laser spot using 3 adjustment screws. It has ceramic bearings and the adjustment screws have a super-fine thread to ensure an even more precise and easy adjustment. 3 locking screws are used for fine-adjustment and to lock the position for an optimum mechanical stability.
Independent to the TILT adjustment, the distance between fiber end-face and coupling optics is adjusted by means of an eccentric key. The final focus setting is locked by means of two radially arranged clamping screws. Since the focus adjustment is independent, the z-position of the mode field diameter can be placed much more precisely.
The polarization alignment of the fiber to the polarization axis of the laser source is performed by rotating the laser beam coupler. The separation of the fiber coupler and the adapter necessary for centering is essential to allow for a full 360° freedom of rotation. The coupler has a tight-fit cylinder that can be placed into a Ø 19.5 mm receptacle of a corresponding adapter.
The beam can be centered with respect to the aperture of the coupling optics using e.g. the adapter 60A19.5-F

Optimum lens performance
The angled polish of connectors of type APC causes the beam to exit in an angle and not parallel to the optical axis of the fiber. This is corrected by the pre-angled mechanical coupling axis of the coupler that compensates the beam deflection and you can use the lens centrically. This minimizes aberrations simply resulting from a non-ideal beam path through the lens.

Receptacle Type Mini AVIM ®
The fiber coupler has a receptacle of type mini AVIM ® and is available as PC (for fibers with 0°-polish) and APC (for fibers with 8°-polish). The receptacle type mini AVIM ® is compatible with fiber connectors type mini AVIM ® and midi AVIM ®. Compatible fiber cables can be found on

Material Options
The fiber couplers are available in amagnetic titanium. The linear coefficient of thermal expansion is close to that of the optics so that a thermal stability over a larger temperature range can be expected. Thefiber couplers are vacuum-compatible.

Fields of application: Avionics and space as well as ultra-compact and stable instruments.

An exemplary coupler can be found here



  • Adjustment
    • How much can I change the focus setting?
      For couplers and collimators with a focal length < 12 mm you can change the focus setting Â± 0.5 mm. For couplers and collimators with a focal length ≥ 12 mm you can change the focus setting ± 1.0 mm.
    • I am unsure how to correctly adjust my coupler/collimator. Where do I find details about the adjustment procedure?
      Please refer to the manual in the Downloads section for a detailed adjustment procedure.
  • Troubleshooting
    • Have you checked, if the fiber is correctly placed within the fiber receptacle of the coupler?
      The fiber connector might not be placed correctly within the receptacle of the coupler. Please refer to the adjustment instructions of the individual couplers for more details.
    • Have you tried another eccentric key?
      Please check, if the eccentric key is damaged or broken.

      Please also check, if you are using the appropriate eccentric key. The eccentric key type 60EX-5 has a larger stroke compared to the key type 60EX-4. The 60EX-5 is used for couplers with focal length ≥ 12 mm. The 60EX-4 is used for focal lenghts < 12 mm.

      In some very, very rare cases the stroke of the original eccentric key may be too small for the coupler in your applictation. (See FAQ "Difference between 60EX-4 and 60EX-5"). Try using the 60EX-5 in this case.
    • Have you checked the eccentric key for damage?
      The eccentric key might be damaged or broken. If that is the case, try another eccentric key of the same type and (or) contact Schäfter+Kirchhoff for replacement.
