Features
All screws to use with the multicube™ system including
- Hex grub screws
- Hex screws
- Grub screws
Order options
| Order Code | Size | Norm | Type | Head | Used for | Set |
|---|---|---|---|---|---|---|
| 48-M3-3-913-20 | M3 x 3 mm | DIN EN ISO 4026 (DIN 913) | Grub screw, flat | Allen key | Fixing rods to cubes and plates | 20 pcs. |
| 48-M3-3-913-50 | M3 x 3 mm | DIN EN ISO 4026 (DIN 913) | Grub screw, flat | Allen key | Fixing rods to cubes and plates | 50 pcs. |
| 48-M3-3-914-20 | M3 x 3 mm | DIN EN ISO 4027 (DIN 914) | Grub screw, conic | Allen key | Mounting components with system mount Ø 19.5 mm | 20 pcs. |
| 48-M3-3-914-50 | M3 x 3 mm | DIN EN ISO 4027 (DIN 914) | Grub screw, conic | Allen key | Mounting components with system mount Ø 19.5 mm | 50 pcs. |

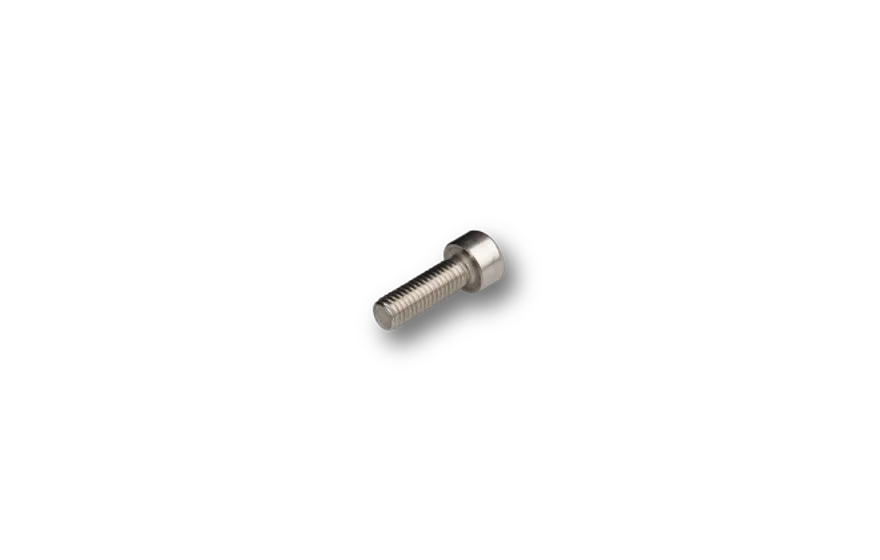

| 48-M2-8-912-20 | M2 x 8 mm | DIN EN ISO 4762 (DIN 912) | Cylinder head | Allen key | Mounting components using a clamp collar | 20 pcs. |
| 48-M2-8-912-50 | M2 x 8 mm | DIN EN ISO 4762 (DIN 912) | Cylinder head | Allen key | Mounting components using a clamp collar | 50 pcs. |
| 48-M1.6-1.5-553-20 | M1.6 x 1.5 mm | DIN EN 27434 (DIN 553) | Grub screw, conic | Slot type | Mounting components with system mount Ø 8 mm | 20 pcs. |
| 48-M1.6-1.5-553-50 | M1.6 x 1.5 mm | DIN EN 27434 (DIN 553) | Grub screw, conic | Slot type | Mounting components with system mount Ø 8 mm | 50 pcs. |
| 48-M1.6-3-553-20 | M1.6 x 3 mm | DIN EN 27434 (DIN 553) | Grub screw, conic | Slot type | 20 pcs. | |
| 48-M1.6-1.5-551-20 | M1.6 x 1.5 mm | DIN EN 24766 (DIN 551) | Grub screw, flat | Slot type | Fixing the fiber ferrule at 60FC fiber collimators and 60SMS laser beam couplers | 20 pcs. |
| 48-M1.6-1.5-551-50 | M1.6 x 1.5 mm | DIN EN 24766 (DIN 551) | Grub screw, flat | Slot type | Fixing the fiber ferrule at 60FC fiber collimators and 60SMS laser beam couplers | 50 pcs. |
| 48-M1.6-1.5-551-100 | M1.6 x 1.5 mm | DIN EN 24766 (DIN 551) | Grub screw, flat | Slot type | Fixing the fiber ferrule at 60FC fiber collimators and 60SMS laser beam couplers | 100 pcs. |
| 48-M1.6-3-551-20 | M1.6 x 3 mm | DIN EN 24766 (DIN 551) | Grub screw, flat | Slot type | 20 pcs. |
Overview
| Lens Code | A7.5 | A8 | A11 | A15 | A18 | M18 | M20 | M25 | M30 | M35 | M40 | M50 | M60 |
| Focal length f' | 7.5 | 8.0 | 11.0 | 15.3 | 18.4 | 18.4 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 50.0 | 60.0 |
| Numerical Apperture NA | 0.3 | 0.31 | 0.25 | 0.16 | 0.15 | 0.18 | 0.17 | 0.23 | 0.19 | 0.16 | 0.21 | 0.24 | 0.14 |
| Clear apert. max. [mm] | 4.5 | 4.93 | 5.5 | 5 | 5.5 | 6.6 | 6.8 | 11.4 | 11.4 | 11.5 | 17 | 24 | 17 |
| Correction - achrom. | X | X | X | X | X | ||||||||
| 350 - 700 nm | 01 | 01 | 01 | 01 | |||||||||
| 390 - 670 nm | 33 | ||||||||||||
| 400 - 700 nm | 01 | 01 | 01 | ||||||||||
| 420 - 700 nm | 26 | 26 | |||||||||||
| 450 - 700 nm | 04 | 04 | 04 | ||||||||||
| 600 - 1050 nm | 02 | 02 | |||||||||||
| 600 - 1100 nm | 02 | 02 | |||||||||||
| 630 - 980 nm | 10 | ||||||||||||
| 630 - 1080 nm | 10 | 54 | |||||||||||
| 650 - 1050 nm | 02 | 02 | |||||||||||
| 650 - 1150 nm | 07 | ||||||||||||
| 750 - 1550 nm | 37 | 37 | |||||||||||
| 980 - 1550 nm | 08 | 08 | 08 | ||||||||||
| 1050 - 1650 nm | 03 | ||||||||||||
| 1050 - 1550 nm | 03 | 03 | 03 | ||||||||||
| 1050 - 1620 nm | 03 | ||||||||||||
| Lens Code | A7.5 | A8 | A11 | A15 | A18 | M18 | M20 | M25 | M30 | M35 | M40 | M50 | M60 |
| Focal length f' | 7.5 | 8.0 | 11.0 | 15.3 | 18.4 | 18.4 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 50.0 | 60.0 |
| Numerical Apperture NA | 0.3 | 0.31 | 0.25 | 0.16 | 0.15 | 0.18 | 0.17 | 0.23 | 0.19 | 0.16 | 0.21 | 0.24 | 0.14 |
| Clear apert. max. [mm] | 4.5 | 4.93 | 5.5 | 5 | 5.5 | 6.6 | 6.8 | 11.4 | 11.4 | 11.5 | 17 | 24 | 17 |
| Correction - achrom. | X | X | X | X | X |
