USB3.0 Line Scan Cameras

USB3.0 interface

Features

Line Scan Camera with USB3.0 interface starting at 512 pixels up to 4096 pixels

Line frequency up to 52.6 kHz
Shading correction with permanently stored profiles
Programmeable Lookup Table
Window Function (ROI)
Line Trigger, Frame Trigger, Threshold Trigger
Advanced Synchronization Control
Thresholding (all monochrome models)
Integration Control for R, G, B (all color models)
Decoupling of line frequency
Extra signals for diagnosis
Data cable length up to 100m using active optical extension cable

Configurator

Description

Line scan cameras are semiconductor cameras used in many industrial environments, e.g. in machine vision applications. The single photosensitive line sensor contains – depending on type – up to 4096 picture elements (pixels). Light energy incident on the sensor is transformed into an electric signal for digitization within the camera. At 8-bit resolution, the A/D converter transmits the output voltage of each pixel into one of 256 brightness levels, at 12-bit resolution into 4096 brightness levels. Color line scan cameras provide three separate line signals for Red, Green and Blue with either 3 x 8-bit or 3 x 12-bit per pixel. The digitized output signal is transfered to a computer.

USB 3.0 line scan cameras are ideally suited for fast and high-resolution scanning. The plug & play capability predestine the USB 3.0 line scan cameras for use in mobile scanner applications, either controlled by a laptop or when the controlling PC is often changed. The locking screw of the connectors and an industrial housing design make them robust and suitable for industrial environments.By using standard components, these USB 3.0 camera systems are comparatively inexpensive and provide a beneficial price-performance ratio. An external grabber is not required. Most of the USB 3.0 cameras are satisfied by the integral USB power. An external power supply is only necessary for some high performance cameras with higher power consumption.
In combination with the Smart-Control-Box, the USB 3.0 cameras can be used as line sensors to provide fast and stand-alone measurement systems, e.g. for measuring object widths, rod diameter or edges as well as the thickness of transparent materials such as glass.

High performance cameras for industry and laborator
High value-for-money ratio

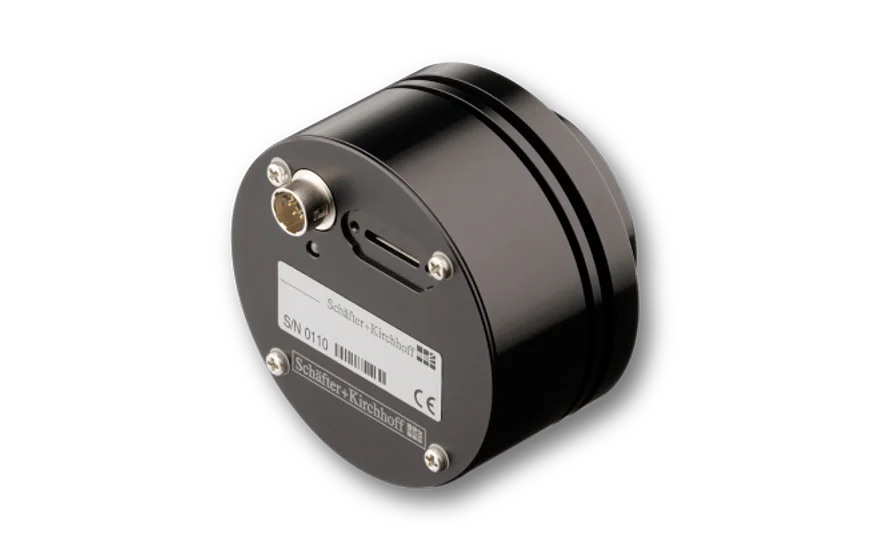

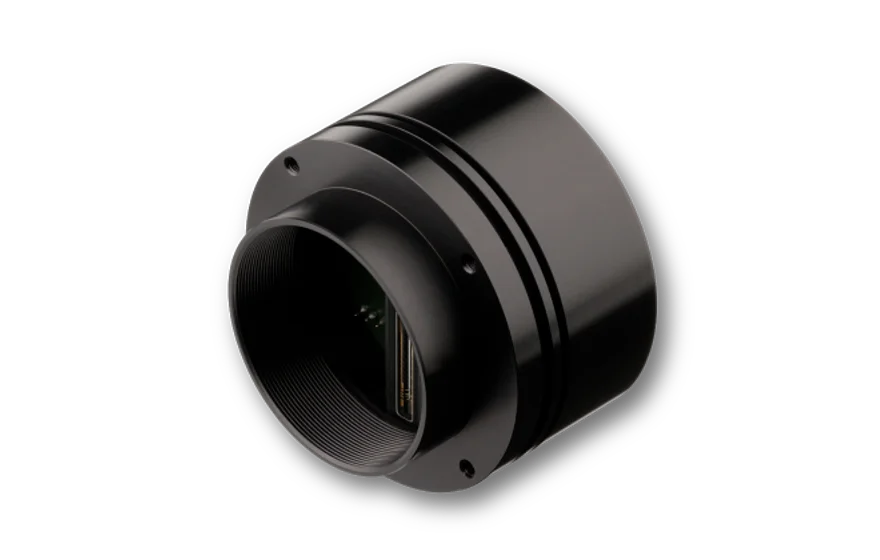

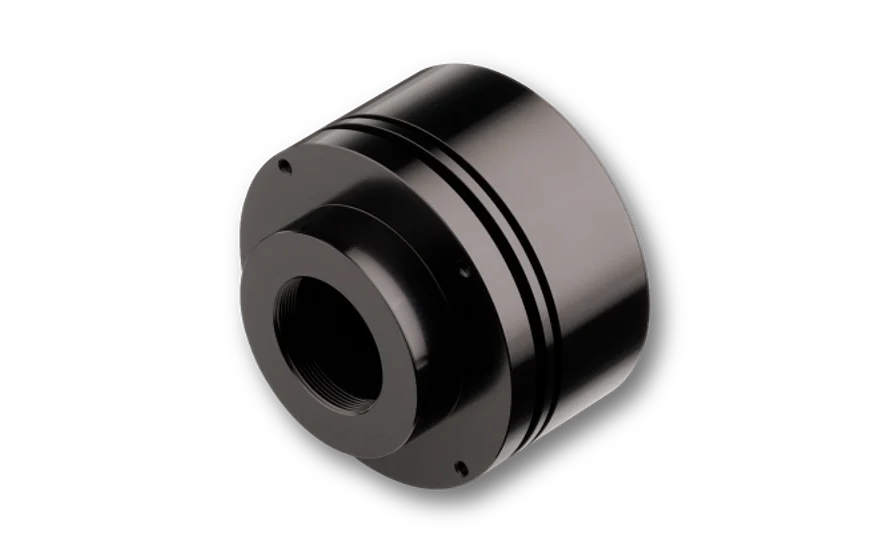

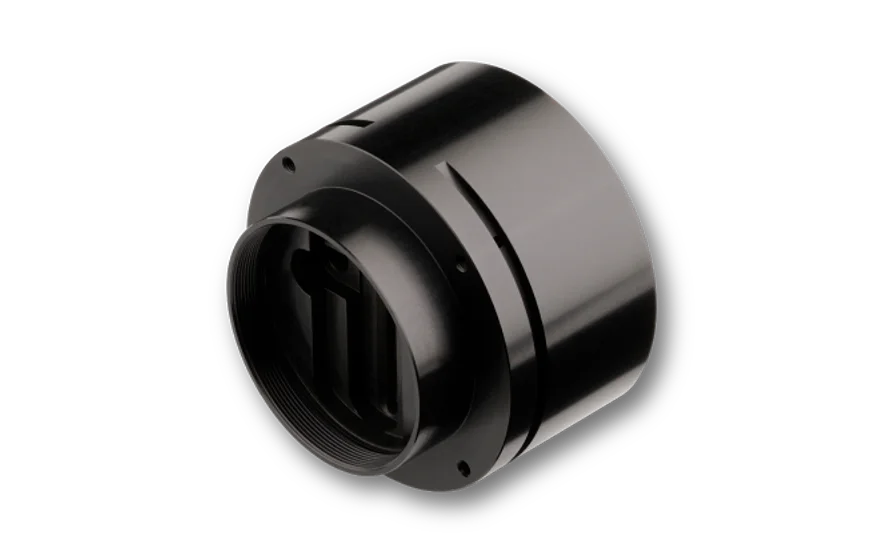

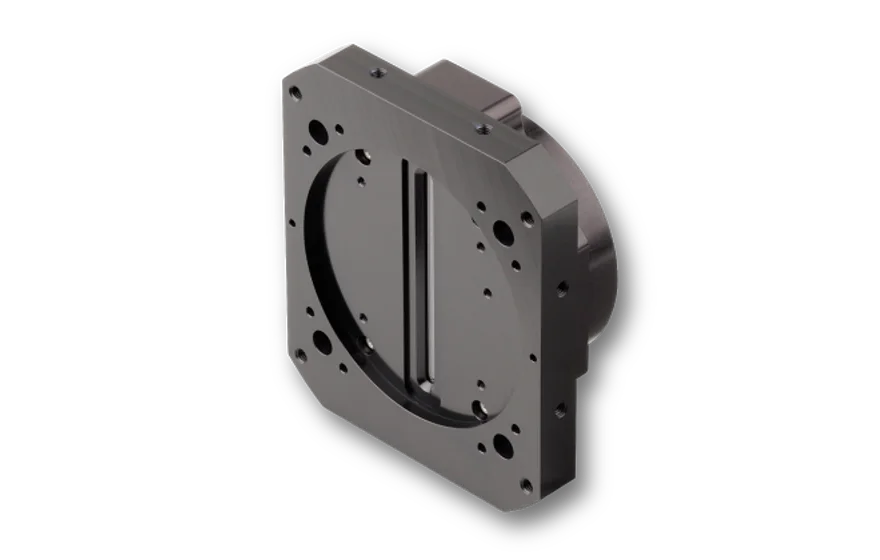

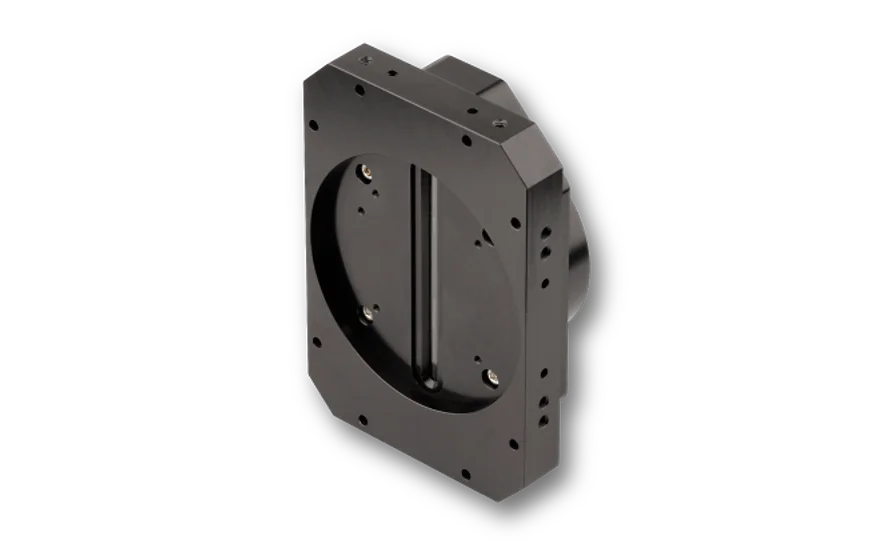

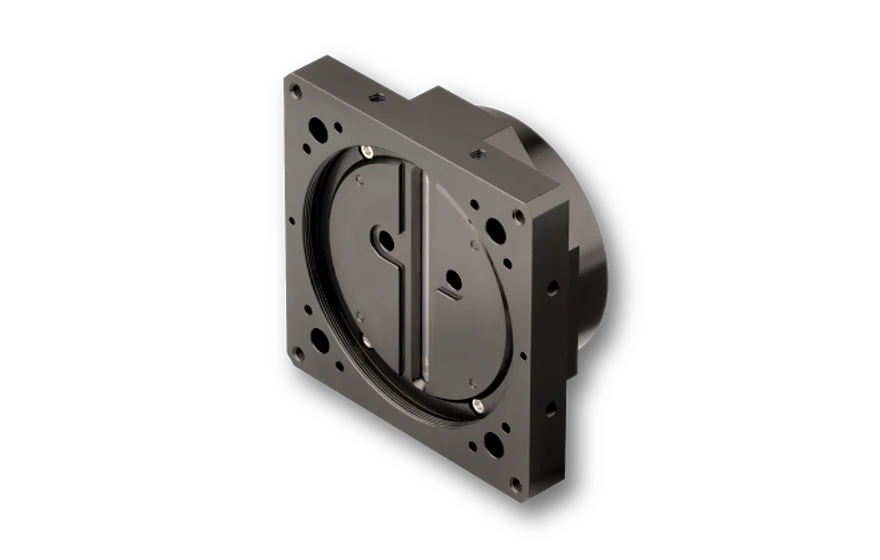

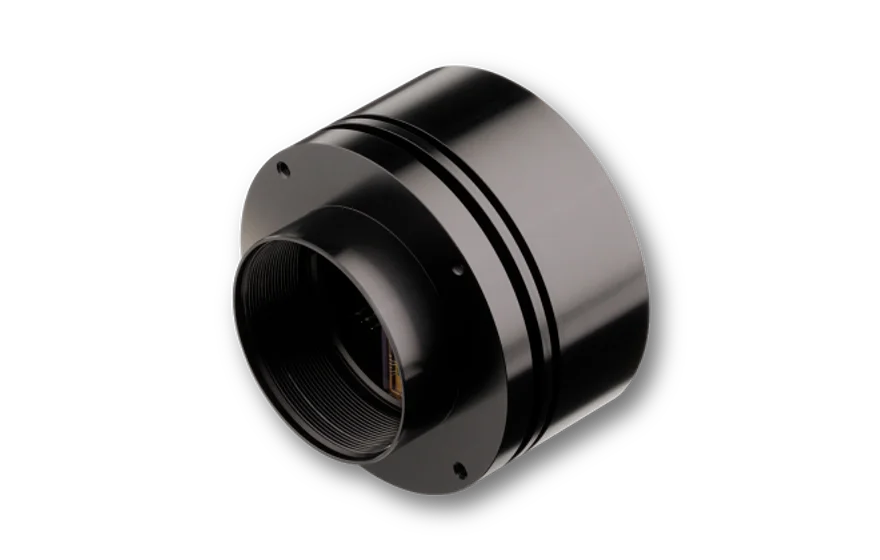

Securely attached connectors, robust casings
No external power supply for the most cameras
USB 3.0 SuperSpeed enables the use of sensors at their maximum line frequencies
Default cable length of up to 3 m
Active Optical Cable provides up to 100 m
Software for Windows 7, 8.1, 10 - x64, x86 or for Linux kernel 3.13+
Useable as sensor for the Smart-Control-Bo
Downwards compatible with USB 2.0

A detailed comparison of the advantages and disadvantages of all camera interfaces offered by Schäfter+Kirchhoff can be found here.

Technotes

Downloads

Article_SmartControlBox.pdf (Technote)

Accessories

Data Cables

for USB3.0 Line Scan Cameras

Synchronization Cables

for USB3.0 Line Scan Cameras

Power Supplies

for Line Scan Cameras

Power Cables 5V

for USB3.0 Line Scan Cameras

Extension Rings

for Line Scan Cameras

Mounting Accessories

for Line Scan Cameras

Software for USB3.0 Line Scan Cameras

Overview

										Bit depth
SK8k-U3DR4	8192	3.5 x 3.5 µm	28.7 mm	43.4 kHz	X	X	X		USB 3.0	8/10 Bit
SK4k-U3DR7C	4096 x 2	7 x 7 µm	28.7 mm	43.4 kHz	X	X	X		USB 3.0	8 Bit
SK22368GTFC-4L	7456 x 3	4.7 x 4.7 µm	35.0 mm	5.1 kHz			X		GigE	3*8 Bit
SK4096MVHW	4096	7 x 200 µm	28.7 mm	2.4 kHz	X	X	X		GigE Vision	8/12 Bit
SK2048MVHW	2048	14 x 200 µm	28.7 mm	4.6 kHz	X	X	X		GigE Vision	8/12 Bit
SK1024U3HA	1024	8 x 8 µm	8.2 mm	52.6 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK1024VJR-4	1024	14 x 14 µm	14.3 mm	4.7 kHz		X	X		GigE Vision	8/12 Bit
SK1024GJR-4	1024	14 x 14 µm	14.3 mm	4.7 kHz		X	X	X	GigE	8/12 Bit
SK512U3SH	512	14 x 14 µm	7.2 mm	35.7 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK2048VSH-4L	2048	14 x 14 µm	28.7 mm	14 kHz	X	X	X		GigE Vision	8/12 Bit
SK2048MVSH	2048	14 x 14 µm	28.7 mm	14.1 kHz	X	X	X		GigE Vision	8/12 Bit
SK2048GSH-4L	2048	14 x 14 µm	28.7 mm	14 kHz	X	X	X	X	GigE	8/12 Bit
SK2048CSH	2048	14 x 14 µm	28.7 mm	14 kHz	X	X	X		Camera Link	8/12 Bit
SK1024VSH-4	1024	14 x 14 µm	14.3 mm	27 kHz	X	X	X		GigE Vision	8/12 Bit
SK1024U3SH	1024	14 x 14 µm	14.3 mm	27 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK1024MVSH	1024	14 x 14 µm	14.3 mm	27 kHz	X	X	X		GigE Vision	8/12 Bit
SK1024GSH-4	1024	14 x 14 µm	14.3 mm	27 kHz	X	X	X	X	GigE	8/12 Bit
SK1024CSH	1024	14 x 14 µm	14.3 mm	27 kHz	X	X	X		Camera Link	8/12 Bit
SK7500VTF-4XB	7496	7 x 7 µm	52.5 mm	8.3 kHz			X		GigE Vision	8/12 Bit
SK7500GTF-4XB	7500	7 x 7 µm	52.5 mm	8.3 kHz			X	X	GigE	8/12 Bit
SK7500CTF-XB	7500	7 x 7 µm	52.5 mm	10.1 kHz			X		Camera Link	8/12 Bit
SK7456U3TO	7456	4.7 x 4.7 µm	35.0 mm	5.2 kHz			X	X	USB 3.0	8/12 Bit
SK512U3HU	512	25 x 500 µm	12.8 mm	26.3 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK4096U3HW	4096	7 x 200 µm	28.7 mm	2.4 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK22800VJRC-4XC	7600 x 3	9.3 x 9.3 µm	70.9 mm	4.9 kHz					GigE Vision	3*8 Bit
SK22800U3JRC-XC	7600 x 3	9.3 x 9.3 µm	70.9 mm	6.2 kHz			X		USB 3.0	3*8 Bit
SK22800GJRC-4XC	7600 x 3	9.3 x 9.3 µm	70.9 mm	5.0 kHz			X		GigE	3*8 Bit
SK22800CJRC-XC	7600 x 3	9.3 x 9.3 µm	70.9 mm	6.2 kHz			X		Camera Link	3*8 Bit
SK2048VJR-4L	2048	14 x 14 µm	28.7 mm	4.7 kHz		X	X		GigE Vision	8/12 Bit
SK2048VHA-4	2048	8 x 8 µm	16.4 mm	52.6 kHz	X	X	X		GigE Vision	8/12 Bit
SK2048U3SH	2048	14 x 14 µm	28.7 mm	14 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK2048U3JR	2048	14 x 14 µm	28.7 mm	4.7 kHz		X	X	X	USB 3.0	8/12 Bit
SK2048U3HW	2048	14 x 200 µm	28.7 mm	6.9 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK2048U3HU	2048	12.5 x 500 µm	25.6 mm	7.1 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK2048U3HA	2048	8 x 8 µm	16.4 mm	52.6 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK2048GJR-4L	2048	14 x 14 µm	28.7 mm	4.7 kHz		X	X	X	GigE	8/12 Bit
SK2048GHA-4	2048	8 x 8 µm	16.4 mm	52.6 kHz	X	X	X	X	GigE	8/12 Bit
SK2048CJR	2048	14 x 14 µm	28.7 mm	4.7 kHz		X	X		Camera Link	8/12 Bit
SK2048CHA	2048	8 x 8 µm	16.4 mm	52.6 kHz	X	X	X		Camera Link	8/12 Bit
SK1024U3HV	1024	25 x 500 µm	25.6 mm	13.9 kHz	X	X	X	X	USB 3.0	8/12 Bit
SK1024U3HU	1024	12.5 x 500 µm	12.8 mm	13.9 kHz	X	X	X	X	USB 3.0	8/12 Bit
