Mounting options for Ø 25/28mm Fiber Collimators (Series 60FC-T, 60FC-Q, and 60FC-L) with flange

Mounting options for Fiber Collimators series 60FC-T, 60FC-Q, and 60FC-L with Ø 25/28 mm with flange

Example of use
Example of use

Mounting plate

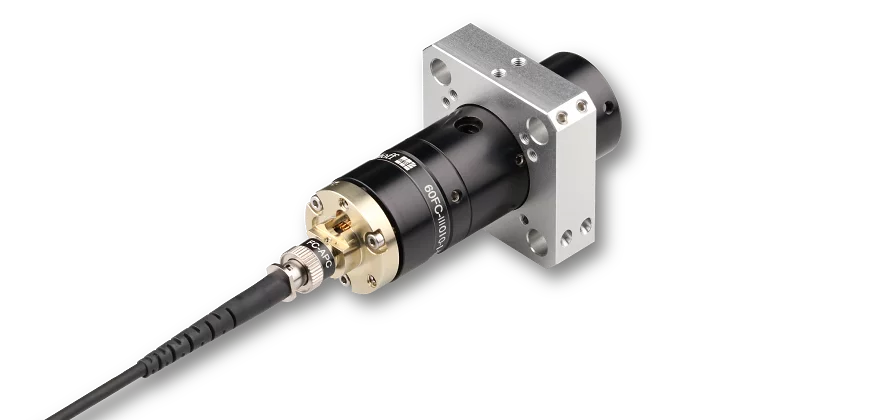

The fiber collimators with an outer diameter Ø 25/28 mm can be mounted using the multicube mounting plate 48MC-MP-25.

This adapter plate is compatible to the multicube system and is compatible with the established 30 mm cage system and the microbench system.

The mounting plate 48MC-MP-25 additionally has a thread type M4 for post mount purposes.
Example of use
Example of use

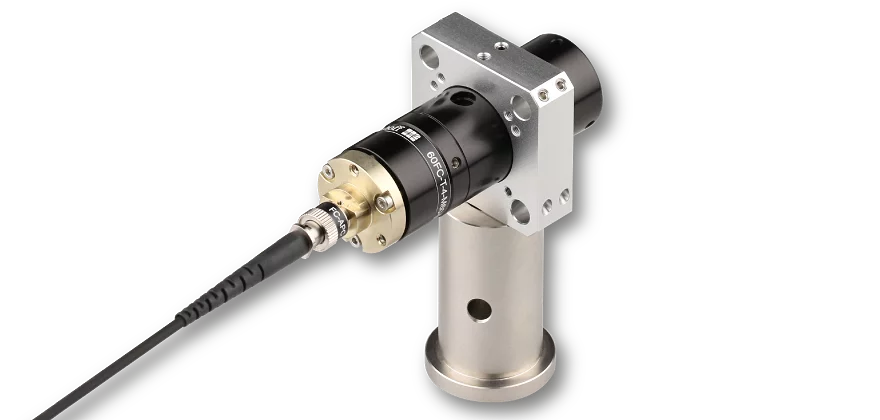

Mountin Plate and Post Mount

The mounting plate 48MC-MP-25 additionally has a thread type M4 for post mount purposes.

Example of use
Example of use

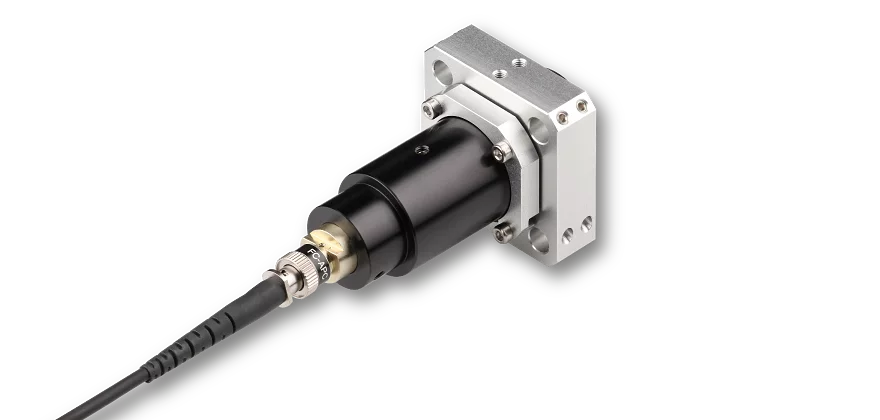

Mounting plate with clamp collar

The fiber collimators Series 60FC-L with an outer diameter 25/28 mm can also be mounted using the clamp collar type CC-25-4 which is compatible with the mounting plate type 48MC-MP-25.


Please note that this flange mount is compatible to the series 60FC-L with a Ø 28 mm flange only.

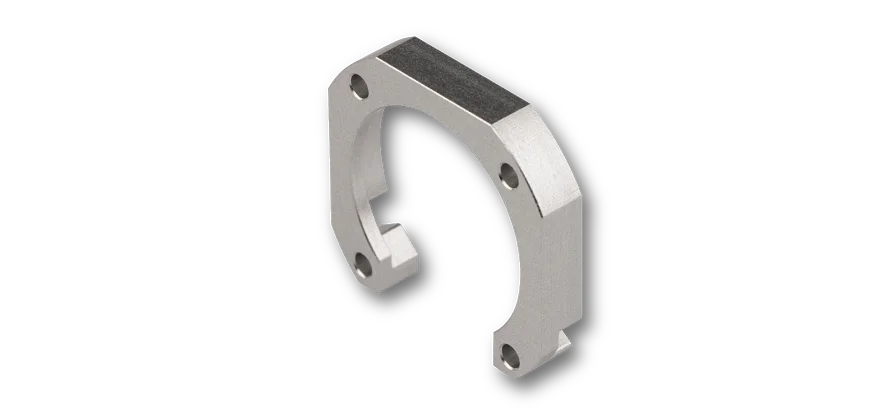

Clamp collar CC-25-4
Clamp collar CC-25-4

Mounting using a clamp collar

With the clamp collar type CC-25-4 or alternatively with the type CC-25-3 the fiber collimators can be mounted to customized mounting plates.

Example of use
Example of use

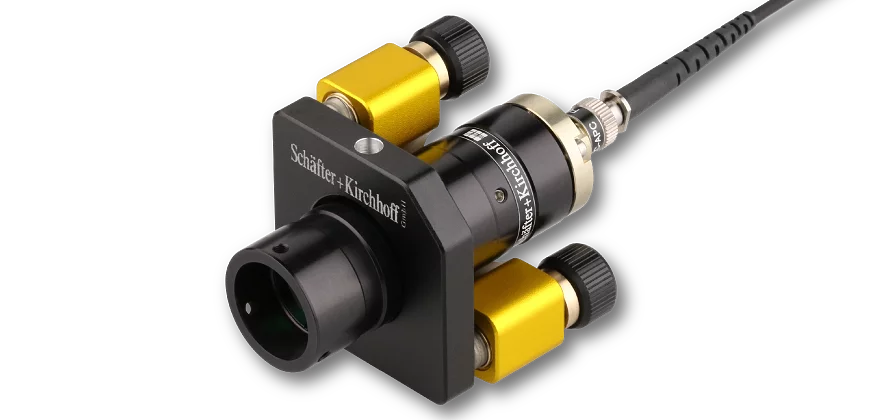

Adjustable mount by LIOP-TEC

The fiber collimators with an outer diameter 25/28 mm can be mounted directly using a special kinematic mount by LIOP-TEC.

For more information refer to www.liop-tec.com.
