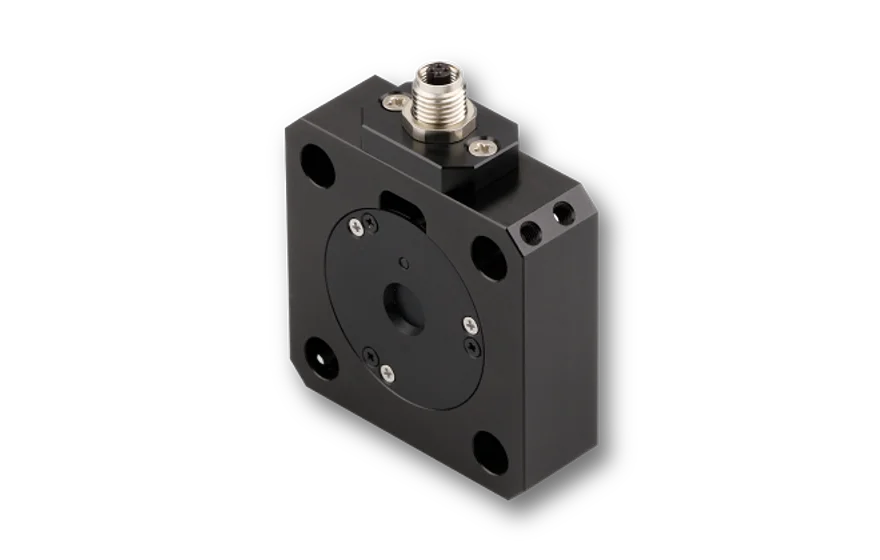

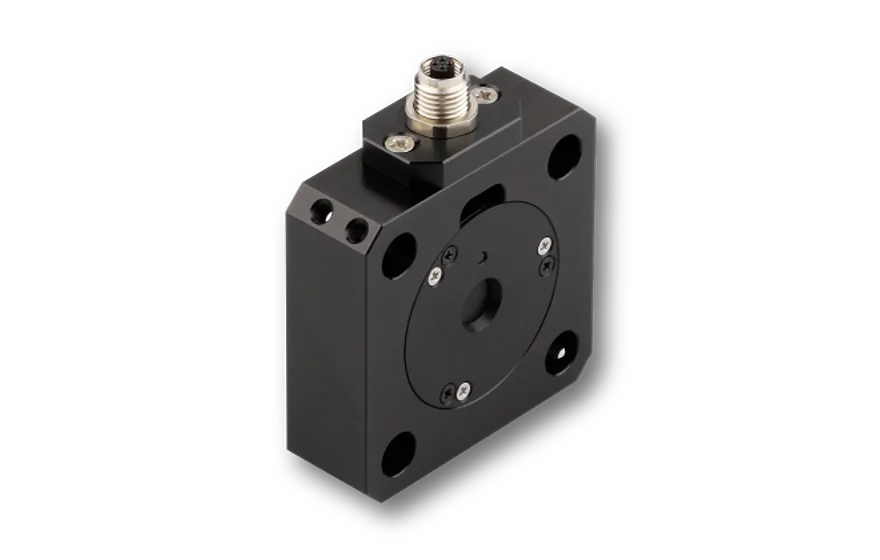

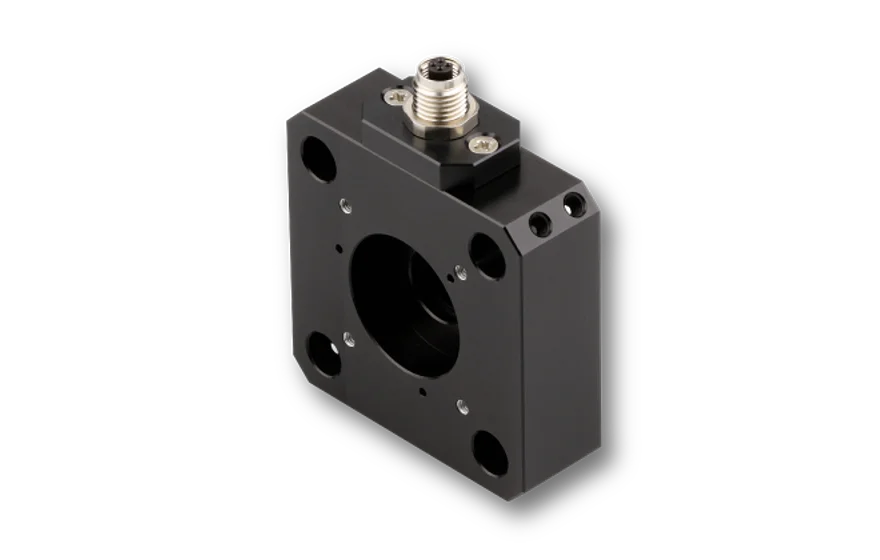

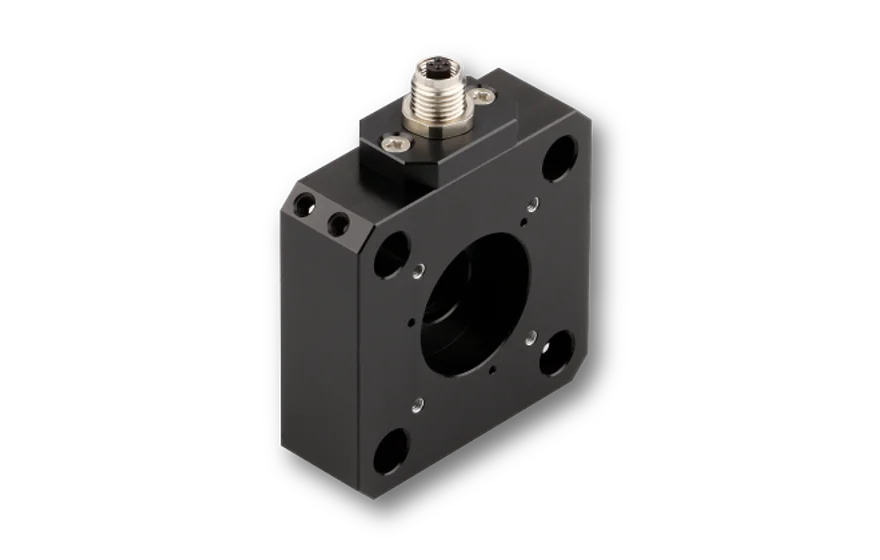

Electro-magnetic shutter 48EMS-6

48EMS-6

Features

Electro-magnetic laser shutter

Clear aperture 6 mm
Min. 25 million cycles
Compatible to the 'multicube' System
Bistable, operating frequency max. 15 Hz
Min. exposure time 11 ms
Controlled by TTL signale (flank control)
Electrical connection type M8, 4 pin female
Suitable shutter controller SK97121 (not included)

Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as an interface between different types of fibers or connectors

Please note: This is not a laser safety shutter according to EN 60825. Additional laser safety measures may be necessary.

Description

The electro-magnetic shutter 48EMS-6 is a shutter that can be controlled by means of a TTL signal (flank-controlled).
An appropriate controller is available separately.

Free beam setup

The electromegnatic shutter is compatibel to the multicube system and can be connected using the adequate cubes, adapters and rods. It has a system mount Ø 19.5 mm on one side.

If you want to have a fiber-coupled electro-magnetic shutter, please refer to 48EMS-0.

Technical data

Electro-magnetic shutter 48EMS-6

Order code

48EMS-6

bistable

Control

TTL (edge-triggered)

Electrical connector type

M5 (4 pin, female)

Voltage to switch

10.7 V DC

Coil resistance

8 Ohm

Shutter timing

Min. exposure time

11 ms

Max. operating frequency

15 Hz (continuous)

Max. operating frequency

45 Hz (burst mode)

Operating temperature

-10 - +65°C

Suitable shutter controller

SK97121C

Cable

with connector type M5, length 2m (included)

Lifetime

min. 25 million cycles

Weight

xxx gr
