Features
Shutter control unit SK97121C for electro-magnetic shutters type 48EMS- Suitable for bi-stable shutter devices
- Operating modes: Manual switch and TTL (BNC)
- Power supply and output cable included
Description

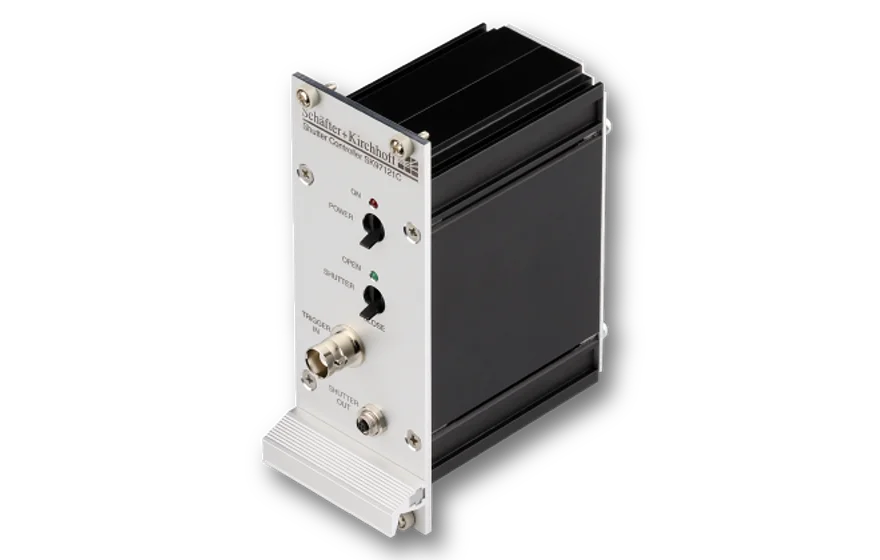

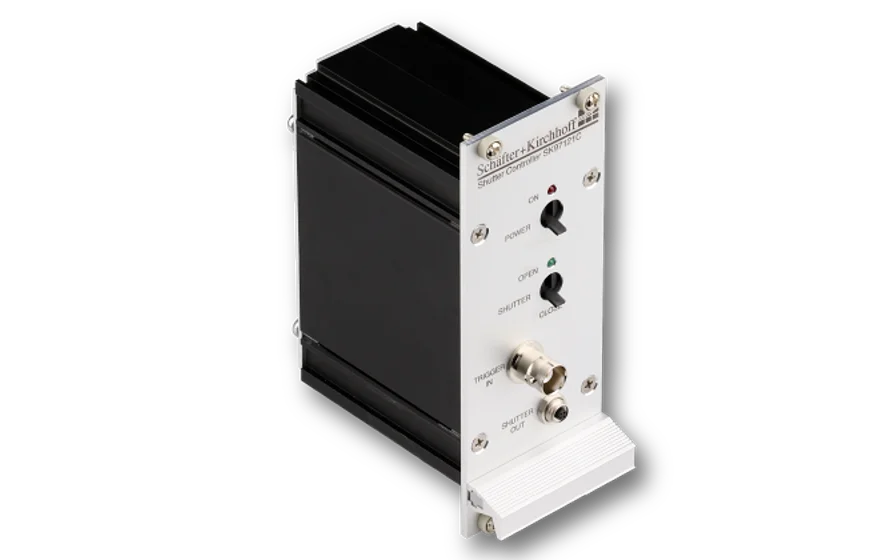

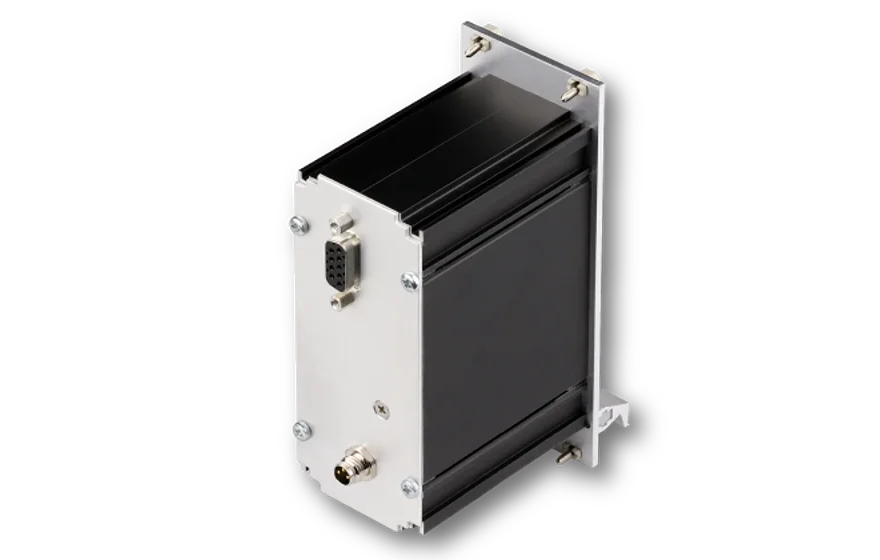

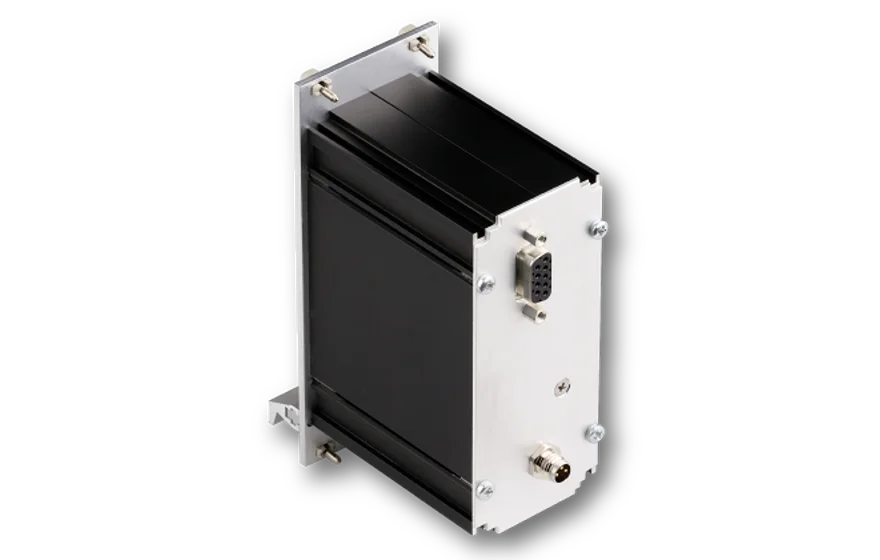

The shutter control unit SK97121C is designed for use with the electro-magnetic shutter series 48EMS. It is built in a eurocassette (3U x 10HP), see Fig. 1. It is suitable for bi-stable shutter devices and has two operating modes: manual switch and TTL (BNC).
Technical data
Shutter control unit SK97121C
Input
Input voltage
24 V DC ± 5%, 30W
TTL (BNC)
5V
Output
TTL
10.7 V DC
Electrical connector type IN
M8, 3 pin male
Housing dimensions
133.3 x 50.8 mm (3U x 10HP)
Power supply

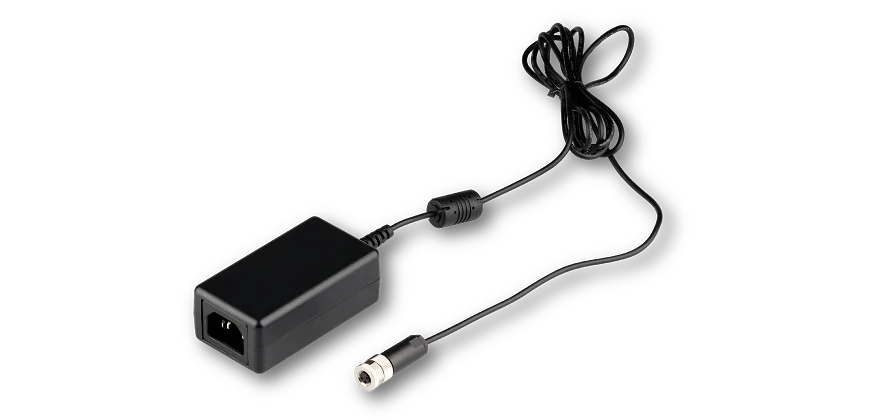

PS2430M8 (not included)
Cable to shutter
with connector type M5, length 2m (included)
