Photo Detectors 48PD

For monitoring purposes

48PD

Features

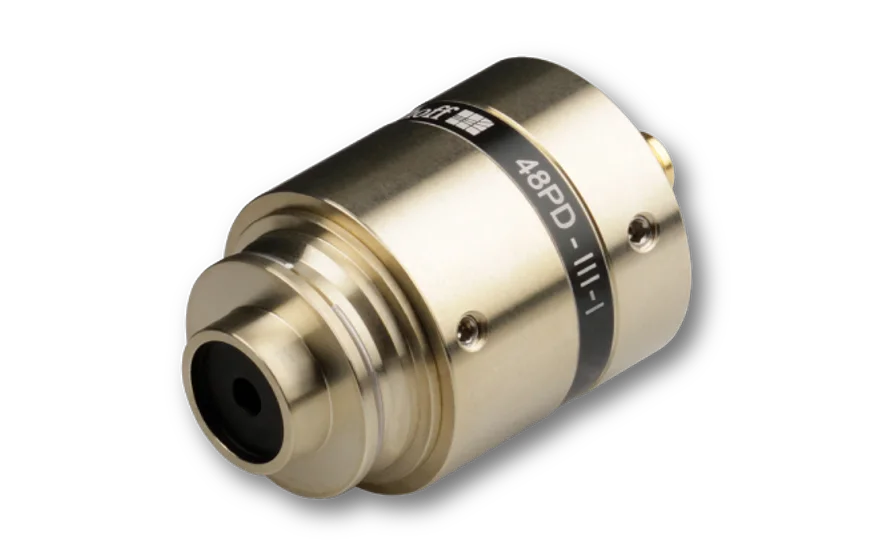

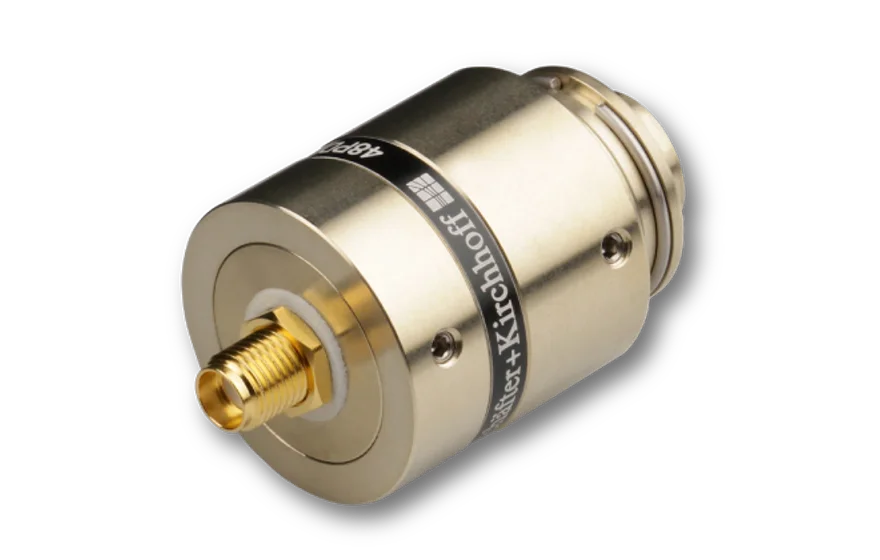

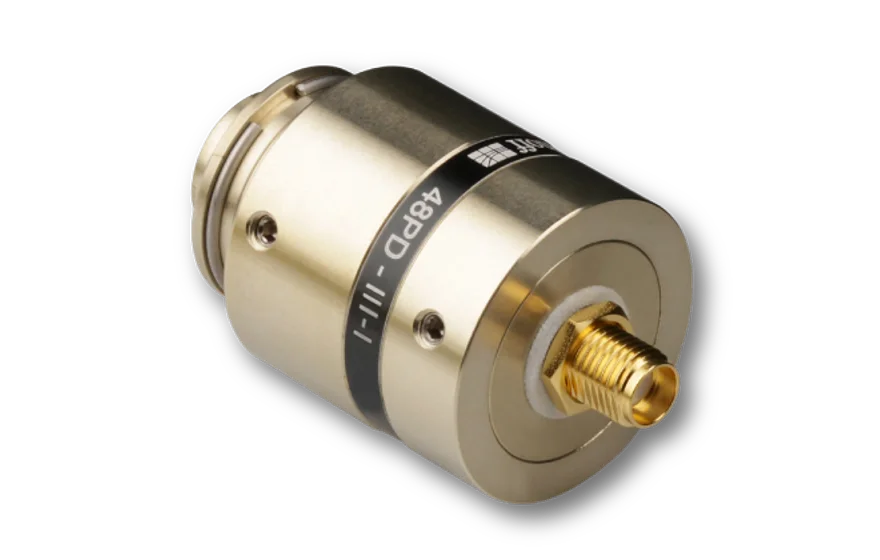

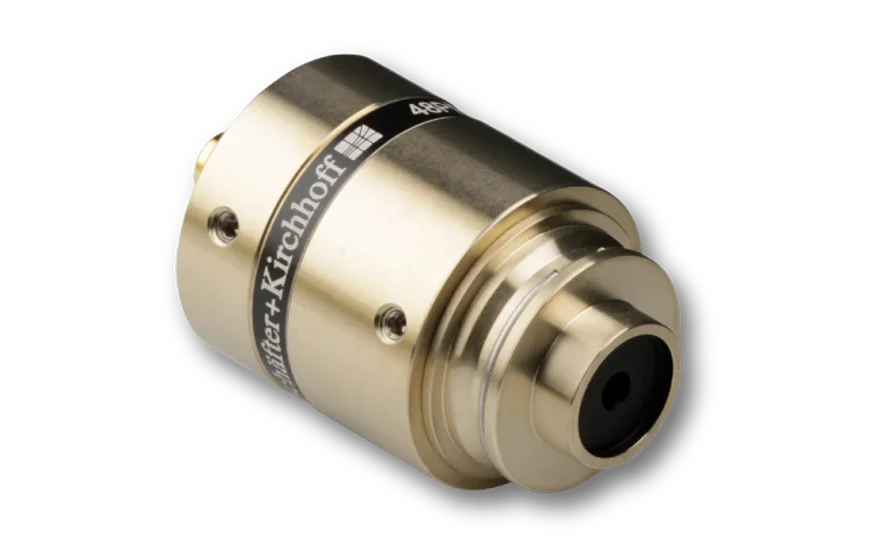

The Photo Detectors series 48PD are Si- or Ge- photo diodes. They have a system mount Ø 19.5 mm and are designed to be integrated into the multicube system.

Si- or Ge- photo diode
Polarization independent
Radiant sensitive area 7 mm²
3° inclined mounting in oder to avoid direct back-reflections
System mount Ø 19.5 mm
Photo diode is delivered without resistor (the resistor is necessary for operation)

Order options

Order Code	Series	Wavelength Range	Photo Diode	Active Area
48PD-BPX61	48PD	400 - 1100 nm	BPX61	7 mm²
48PD-S1226-44BK	48PD	320 - 1000 nm	S1226-44BK	13 mm²

Downloads

011120190100.pdf (Dimensional drawing)

011120190100.stp (STEP model)

011120190100.stp (STEP model, for registered users only)

Benefits of user registration include

Extended information for download including stepfiles, software or manuals
Direct download of user-specific downloads (e.g. user-specific software)
Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
Stored item list

Click here to register.

Overview

Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
350 - 700 nm	01		01	01	01
390 - 670 nm													33
400 - 700 nm								01	01			01
420 - 700 nm										26	26
450 - 700 nm								04	04		04
600 - 1050 nm	02			02
600 - 1100 nm			02		02
630 - 980 nm													10
630 - 1080 nm							10				54
650 - 1050 nm								02	02
650 - 1150 nm		07
750 - 1550 nm									37	37
980 - 1550 nm						08	08						08
1050 - 1650 nm			03
1050 - 1550 nm	03			03	03
1050 - 1620 nm								03
Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
