Lumberg Connectors

For the laser sources Schäfter+Kirchhiff uses electrical connectors of type Lumberg IEC 61076-2-106.
The number of pins depend on the supply voltage and the way how to control the laser in terms of modulation input ports or serial interface.
Some of these connectors are offered separately. As an option they already are wired in order to use them as quick start or interlock connectors.
BC0105M
BC0105M

Products

BC0106F-iLCK
BC0106F-iLCK
Interlock connector for use with the fiber-coupled laser sources of series 51nano-S
and 51nanoFI-S. The interlock pins are bridged.

BC0109F
BC0109F
For connecting a custom power supply to a laser with 5 V supply power.
  • Type Lumberg KV50
  • 5 pin, female
  • Compatible connectors: SV50 and SV30

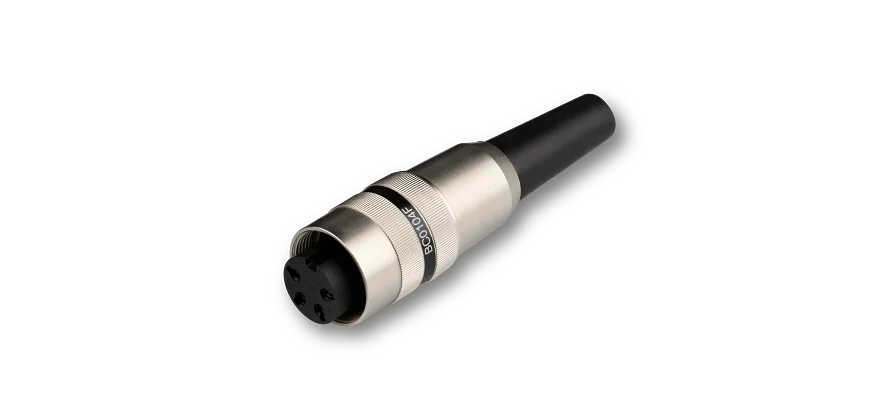

BC0104F
BC0104F
For connecting a custom power supply to a laser with 12 V supply power.
  • Type Lumberg KV40
  • 4 pin, female
  • Compatible connectors: SV40

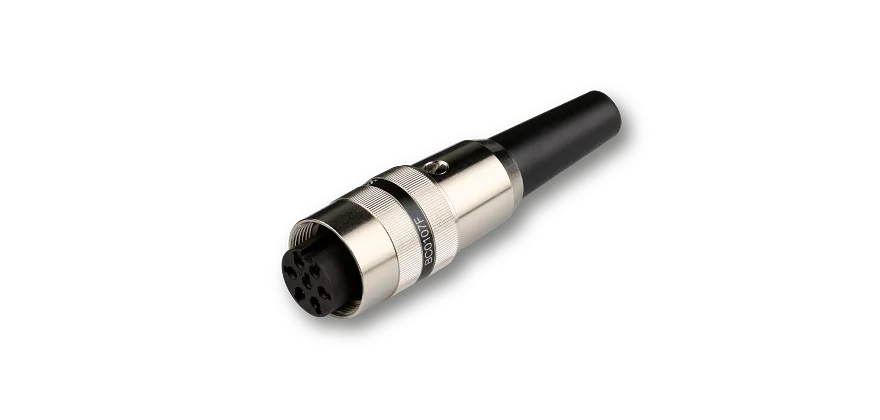

BC0107F
BC0107F
For connecting a custom power supply to a laser with 5 V supply power and with serial interface.
  • Type Lumberg KV70
  • 7 pin, female
  • Compatible connectors: SV70
  • For laser with electronics CS and PS
BC0106F
BC0106F
Connector for modulation and interlock of all fiber-coupled laser sources of series 51nano-S
  • Type Lumberg KV60
  • 6 pin, female

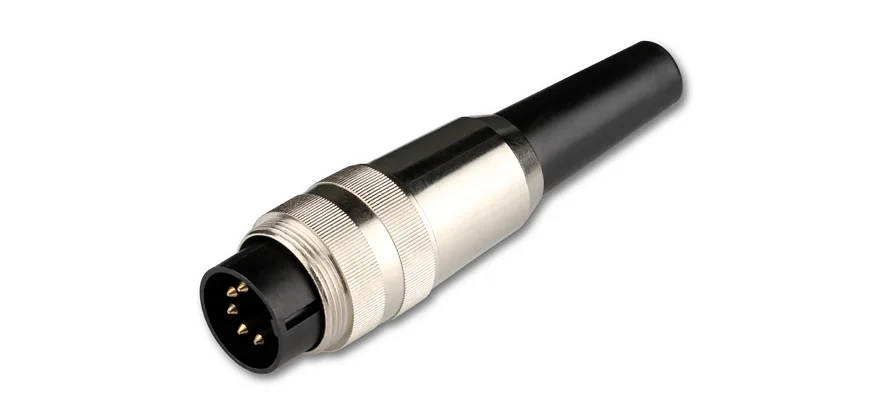

BC0105M
BC0105M
For connecting a custom laser to a 5 V switchbox
  • Type Lumberg SV50
  • 5 pin, male
  • Compatible connectors: KV50

Order Options

Order CodeFunctionFor SeriesVoltageType Number of PinsGenderComment
BC0106F-iLCKInterlock connector51nano-S and 51nanoFI-S5 V and 12 V KV60 6femaleWired as a quick start connector
BC0106FInterlock connector51nano-S and 51nanoFI-S5 V and 12 V KV60 6female
BC0109FPower supply and modulationLasers with 5 V supply power
but w/o serial interface
(electronics type CS and PS)		5 VKV505femaleFor connecting a custom power supply to a laser.
Fits to SV50 and SV30.
For 51nano-S and 51nanoFI-S: Power supply only
BC0107FPower supply, modulation and
interface		Line lasers with electronics
CS and PS		5 VKV70 7femaleFor connecting a custom power supply to a laser.
BC0104FPower supply and modulation Lasers with 12 V supply power12 VKV404femaleFor connecting a custom power supply to a laser
For 51nano-S and 51nanoFI-S: Power supply only
BC0105MLaser  5 VSV505maleFor connectong a custom laser to the switchbox
