Features
Interlock connector for use with the fiber-coupled laser sources of series 51nano-S
and 51nanoFI-S. The interlock pins are bridged.
Description

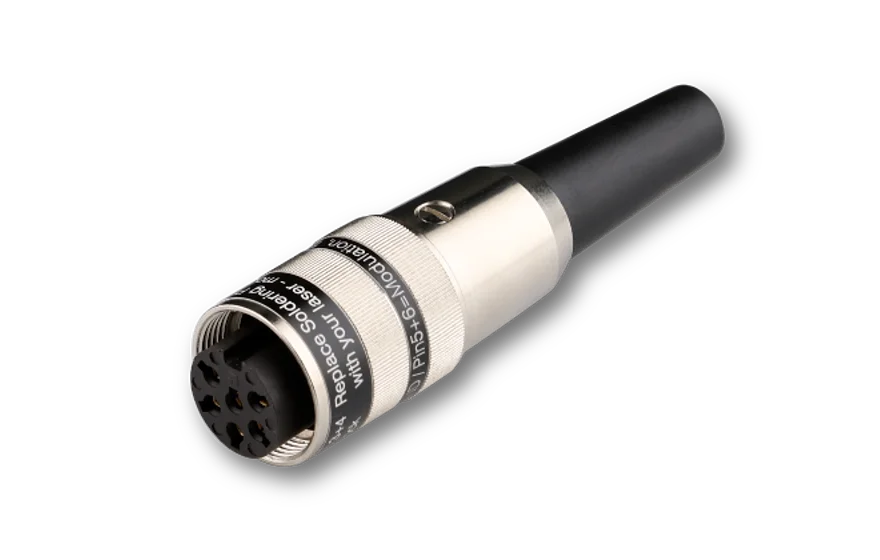

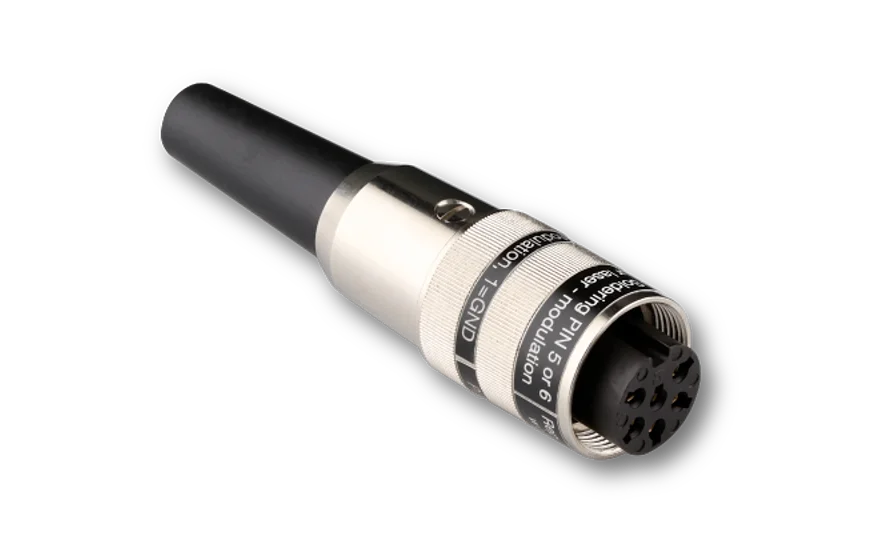

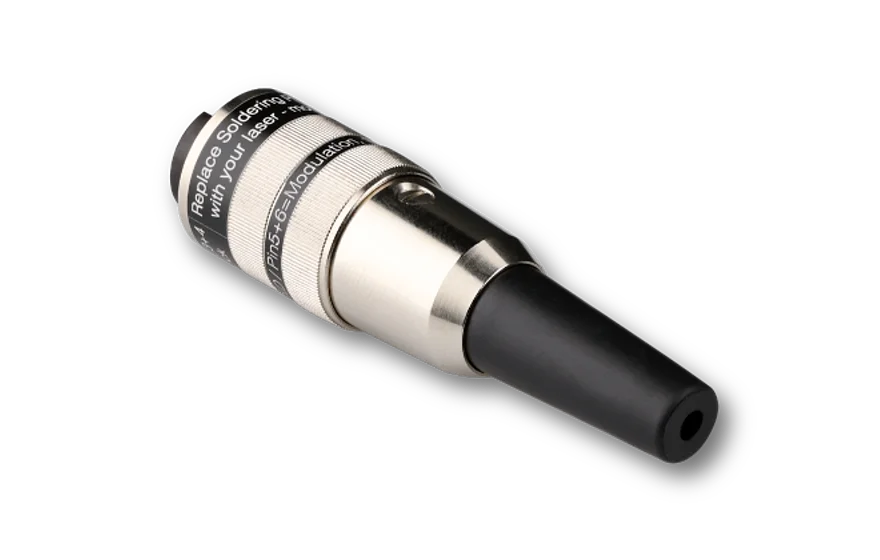

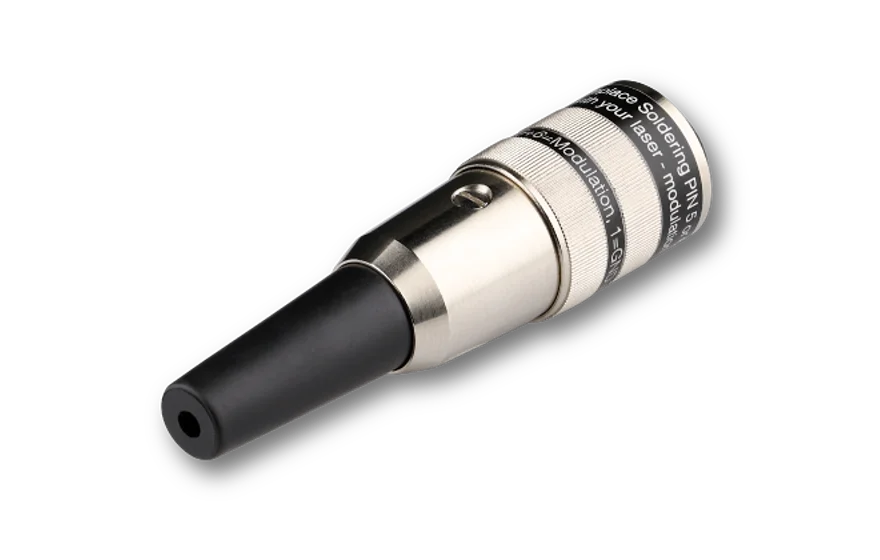

The interlock connector is used with the fiber-coupled laser sources of series 51nano-S and 51nanoFI-S.
It is used for a quick start of the laser only.
- Type KV60 (IEC 61076-2-106)
- The interlock pins 3+4 are bridged
- The modulation input pins 5 and 6 are connected with the 5 V output suppy voltage pin 2 (Vcc OUT)
For a safe operation according DIN EN 60825-1 you have to connect the laser to an interlock chain.
The interlock connector is shipped with each laser type 51nano-S and 51nanoFI-S.
