Mounting options for Ø 12mm Fiber Collimators (Series 60FC and 60FC-SF)

Mounting options for Fiber Collimators series 60FC
and 60FC-SF

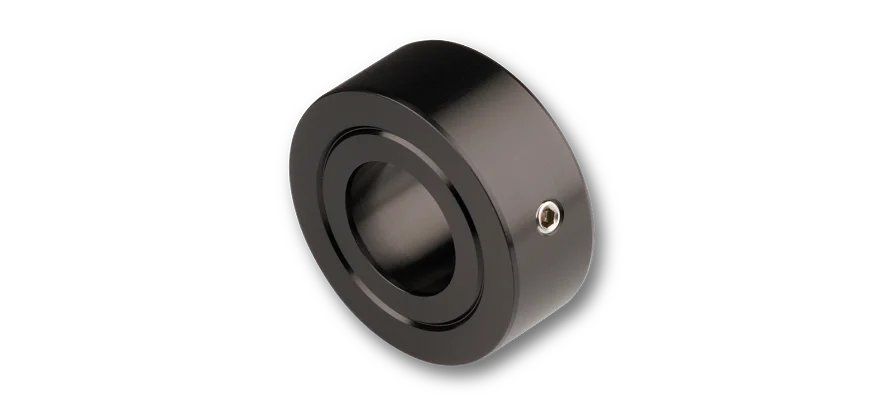

Adapter 12C-AM25
Adapter 12C-AM25

Mounting using a Ø 25 mm mirror mount

The fiber collimators series 60FC and 60FC-SF can be mounted using the adapter 12C-AM25

Using this adapter the collimator can then be placed into a standard Ø 25 mm kinematic mirror mount. Kinematic mirror mounts available elsewhere.

Example of use
Example of use

Mounting using a 1'' mirror mount

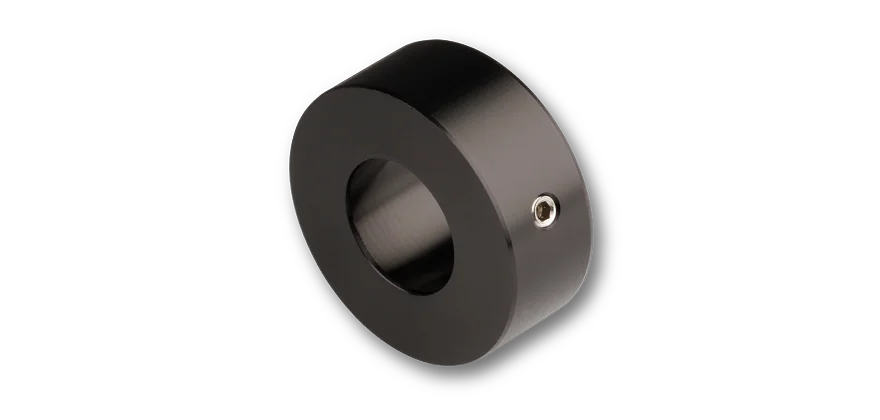

The fiber collimators series 60FC and 60FC-SF can be mounted using the adapter 12AM25.4

Using this adapter the collimator can then be placed into a standard 1'' kinematic mirror mount. Kinematic mirror mount available elsewhere.

Example of use
Example of use

Mounting using a post mount

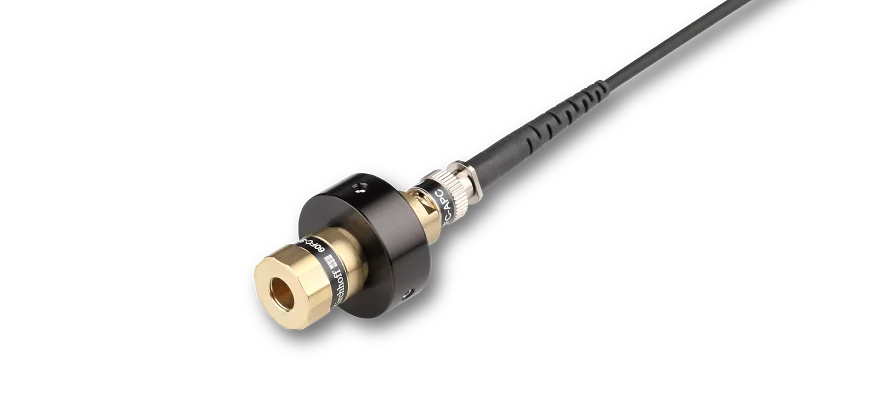

The fiber collimators series 60FC and 60FC-SF can be mounted using the adapter 12AM25-M4.

Using this adapter the collimator can then be mounted to a post mount with M4 type thread. Post mount available elsewhere.

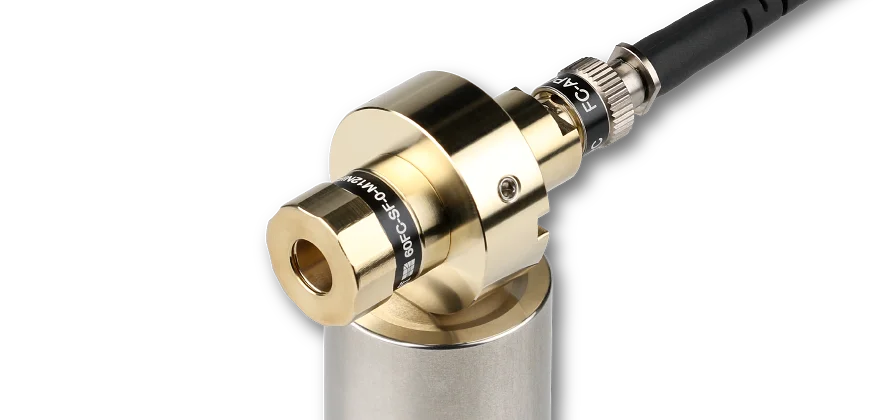

Example of use
Example of use

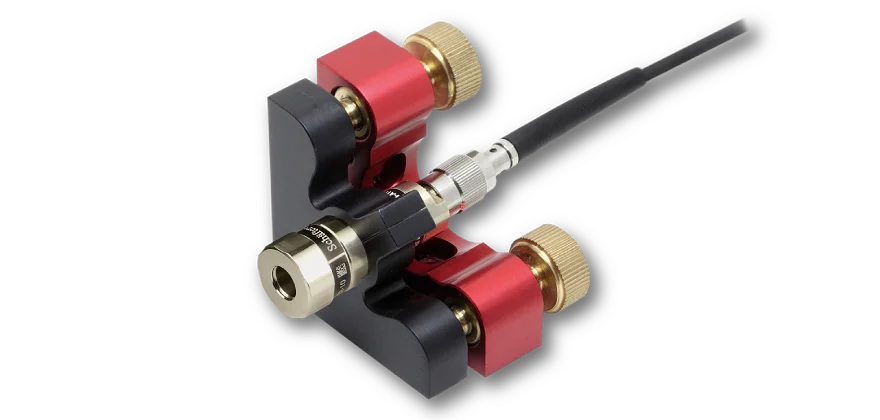

Adjustable mount by Radiant-Dyes

The fiber collimators series 60FC and 60FC-SF can be mounted directly using a special kinematic mount by Radiant Dyes type MDI-HS-2-3012T.

For more information refer to www.radiant-dyes.com
Example of use
Example of use

ADJUSTABLE MOUNT BY LIOP-TEC

The fiber collimators series 60FC and 60FC-SF can be mounted directly using a special kinematic mount by LIOP-TEC.

For more information refer to www.liop-tec.com
Example of use
Example of use

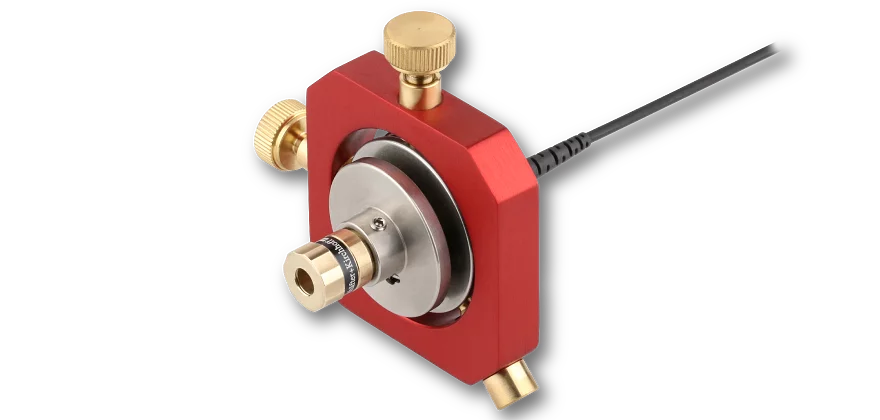

Adjustable Mount by Radiant-Dyes

The fiber collimators series 60FC and 60FC-SF can be mounted directly using a special kinematic mount by Radiant Dyes type RD-VL-MNI-Mirro.

For more information refer to www.radiant-dyes.com
