Power Supplies for Laser Modules

Power supplies for the Schäfter+Kirchhoff Laser Modules including standard power supplies or power supplies that fit to a mounting rail system.
The adequate power supply depends on the electronics type and voltage of the laser, which can be found on the individual product pages for each laser.
PS051003E
PS051003E

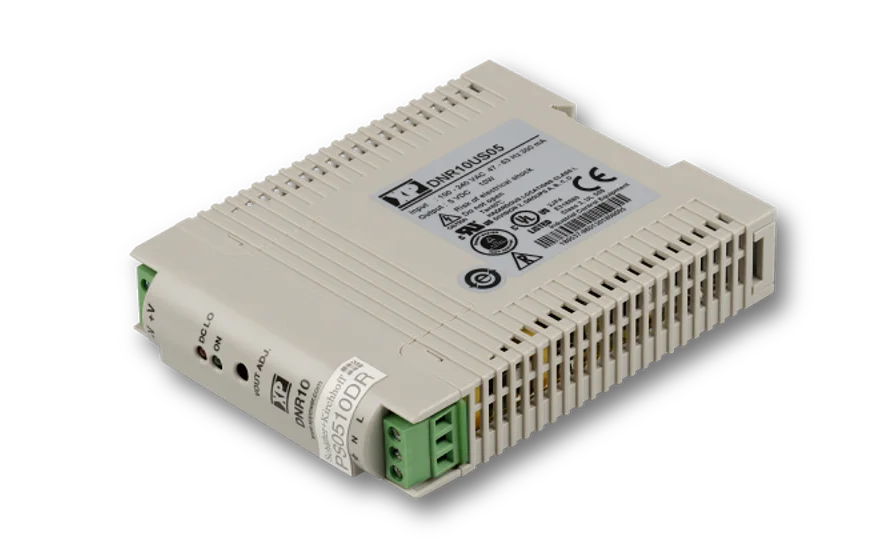

Power supply PS0510DR
Power supply PS0510DR

Products

PS051003E
Power supply for all ­Laser Modules with 5 V supply voltage and w/o RS232 ­interface or for 5 V Line Scan Cameras.

PS120516E
Power supply for all ­Laser Modules with 12 V supply voltage.
PS051007E
Power supply for all ­Laser Modules with 5 V supply voltage and with RS232 ­interface

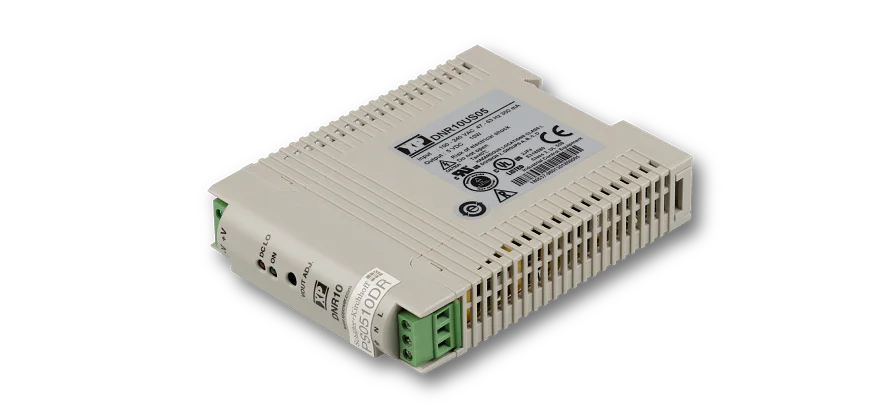

PS0510DR
Switching power supply for all ­Laser Modules with 5 V supply voltage.
To use with laser modules without electrical connector.
PS120DR
Switching power supply for all ­Laser Modules with 12 V supply voltage.
To use with laser modules without electrical connector.

Order Options

Power SupplyElectr.
Type S
Electr.
Type B
Electr.
Type C
Electr.
Type P
Electr.
Type CS
Electr.
Type PS
Electr.
Type H
Electr.
Type HP
VoltageConnectorSwitchboxRemarks
PS051003Ex xx  x 5 V5-pin KV50SBN050501
PS120516E x      12 V4-pin KV40 SBN040401
PS120516E       x12 V4-pin KV40SBN040402
PS051007E    xx  5 V 7-pin KV70SBS070701-USB
PS0510DRx xx  x 5 Vno rail mount
PS1210DR       x12 Vno rail mount
