Fiber Collimator Series 60FC-Q

Fiber Collimator for collimating large beam diameters and with integrated quarter-wave plate

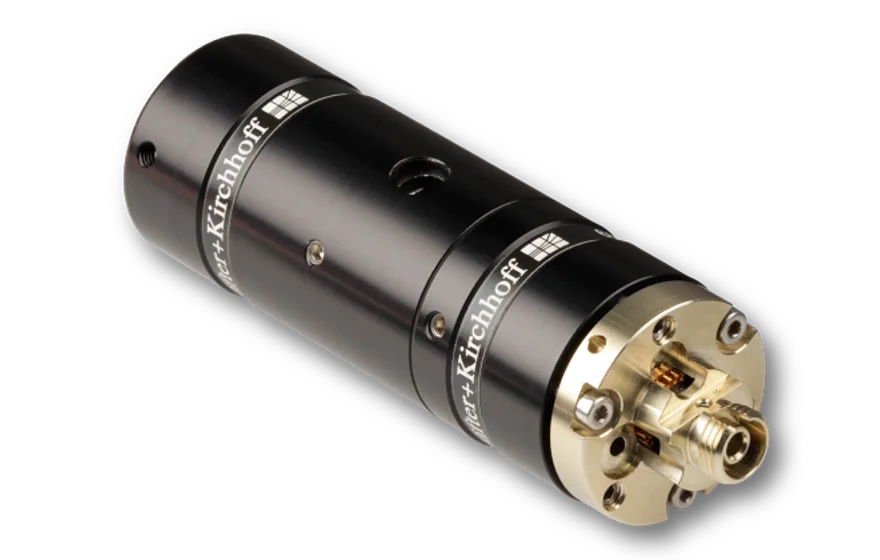

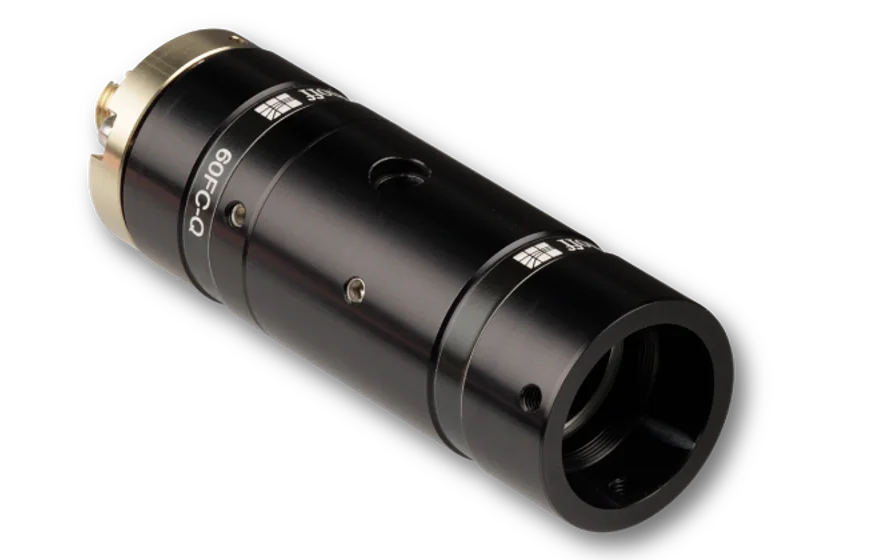

Fiber collimator 60FC-Q-4

Representative product images. Individual product images are found on the individual product pages.

TILT
Adjustment

Quantum

Features

The fiber collimators series 60FC-Q are designed for collimating radiation exiting from an optical fiber cable. An integrated adjustable quarter-wave plate is used to generate left-handed or right-handed circularly polarized radiation.

Large beam diameters: Focal lengths up to 200 mm
Choice of monochromats or achromats
Various AR coatings for UV - IR
Low-order retardation optics with minimal angular dependency
Choice of fiber receptacals: FC PC or FC APC (standard), many others available
Integrated TILT adjustment to prevent aberrations from vignetting or clipping
Front connector accepts attachment optics

Configurator

Description

The fiber collimators series 60FC-Q have an integrated quarter-wave plate and is designed for collimating radiation exiting optical fiber cables with high pointing stability and adjustable right-handed or left-handed circular polarization. They are suitable for single-mode and polarization-maintaining fiber cables leading to collimated beams with a Gaussian intensity profile.

An optics for each application
A large variety of collimating optics allows that the optimum focal length and the best lens type for a single wavelength (monochromat) or a wavelength range (achromat) can be selected for each application. All lenses are AR-coated.

Adjustment of focus and TILT, and state of polarization
The distance between fiber end-face and collimating optics is adjusted by means of an eccentric key. The lens does not rotate when adjusting the focus. The final focus setting is locked by means of two radially arranged clamping screws. Additionally attachment optics can be mounted to the front of the collimator.
Additionally, the collimator has an integrated TILT adjustment for aligning the beam axis to the mechanical axis. This prevents vignetting of the collimated beam as well as diffraction arising from the clipped beam.
The integrated low-order retardation optics with minimal angular dependency allows the adjustment of the state of polarization in the assembled state between right-handed and left-handed circular polarization. This is done using a cogged tool 60Z-2803 and can be monitored using the polarization analyzers series SK010PA. Retardation optics are available for typical wavelengths between 389 nm and 1084 nm.

Optimum lens performance
The angled polish of connectors of type APC is considered by a pre-angled mechanical coupling axis that compensates the beam deflection and you can use the lens centrically. This minimizes aberrations simply resulting from a non-ideal beam path through the lens.

Connector Type
The fiber collimator can be equipped with FC PC (wide key*), FC APC (wide key*), ST or LSA (compatible with fiber connectors type DIN, AVIO and AVIM) receptacles. In case of FC or LSA with a spring loaded ferrule the fiber coupler has an additional grub screw to increase pointing stability. *Even though the fiber coupler has a wide key receptacle it still can be used with both narrow key and wide key fibers. More information can be found here.

Material
The fiber collimators are made of nickel silver and black anodized aluminum.

Mounting
The mounting options for Fiber Collimators 60FC-Q can be found here for diameter Ø25 mm without flange, diameter Ø25/28 mm with flange, diameter Ø32 mm, diameter Ø45 mm and diameter Ø55 mm.

Technotes

FAQ

General Questions
- Why do you use low-order wave plates for the 60FC-Q collimators instead of zero-order?
  The fiber collimators of series 60FC-Q typically are used in quantum optical systems with narrow line width lasers.
  In these fiber collimators, the quarter-wave plate is placed directly after the fiber receptacle in the diverging beam.

  Thus, we use low-order waveplates for this application because they have a ten times smaller angular dependence compared to zero-order waveplates.

  It may be better to use zero-order plates only if the parts are used in a non-temperature-stabilized environment or if they are used with a broadband source.

  Series 60FC-Q fiber collimators with zero-order plates are available upon request.
Adjustment
- How much can I change the focus setting?
  You can change the focus setting ± 2.0 mm.
- I do not have a collimating telescope to collimate. Can you give me practical advice?
  Of coarse, a collimating telescope is the best way to collimate. But there are other methods depending on the type of fiber (single-mode and PM vs. multimode) you can use. Please refer to our practical collimating tips here.
- My collimator is shipped "prealigned". What does this mean?
  Schäfter+ Kirchhoff ships all collimators prealigned and collimated for either a specific wavelength defined by the customer or a typical wavelength. The collimation is performed using professional collimating telescopes.

  Please note: The fibers used in the standard adjustment procedure are all equipped with an end cap when aligning for wavelengths ≤ 520 nm. The adjustment wavelength is given on the label for each collimator/coupler. If a fiber with end cap was used it is marked by "EC".
- I am unsure how to correctly adjust my coupler/collimator. Where do I find details about the adjustment procedure?
  Please refer to the manual in the Downloads section for a detailed adjustment procedure.
Fiber Receptacle
- FC PC and FC APC
  - What type of receptacle does my collimator with receptacle type FC have? Narrow key or wide key?
    All our fiber collimators and couplers with a receptacle type FC have a so calles wide key receptacle (2.14 mm).

    These are suitable for connecting fibers with connector type FC (wide key) but also with thos of type narrow key! You can find the details in the FAQs below.
  - How do I attach a fiber cable?
    To prevent damage to the sensitive fiber end-face, always insert the fiber connector`s ferrule at an angle, with the connector key properly aligned to the receptacle notch.
    When the ferrule tip is safely located in the inner cylinder of the receptacle, align the connector to the receptacle axis and carefully introduce the connector into the fiber coupler.
    Then, orient the connector key in a way that it is pressed gently onto the right-hand side of the receptacle notch ("right-hand orientation rule").
    Gently screw on the connector cap nut onto the receptacle until it is finger-tight.
    Gently tighten the fiber grub screw to reduce the free play of the ferrule in the receptacle.
  - What is the "right-hand orientation rule"?
    When the ferrule tip is safely located in the inner cylinder of the receptacle, align the connector to the receptacle axis and carefully introduce the connector into the fiber coupler.
    Then, orient the connector key in a way that it is pressed gently onto the right-hand side of the receptacle notch.
    The tightened grub screw and the "right-hand orientation rule" for the connector, ensure a high reproducibility in mode field position and angle, which is especially important for attaching and reattaching polarization-maintaining fibers reproducibly.
  - Can I attach a narrow key fiber cable to a fiber coupler with a wide key receptacle?
    Yes, you can- without any problem. Simply adhere to the "right-hand orientation rule".
    Generally, with any FC PC or FC APC type connector there is a freeplay when inserting the fiber into the fiber coupler. The free play in between the connector ferrule and receptacle is only a few microns, but necessary for inserting the ferrule without force. There is a difference between the receptable and key width for wide key (2.14 mm) and narrow key (2.0 mm) fibers. If you follow the so-called "right-hand orientation rule" you can reproducibly attach and reattach even PM fibers with narrow key receptacle to fiber couplers with wide key receptacle without difficulty.
    "Right-hand orientation rule":
    When the ferrule tip is safely located in the inner cylinder of the receptacle, align the connector to the receptacle axis and carefully introduce the connector into the fiber coupler. Then, orient the connector key in a way that it is pressed gently onto the right-hand side of the receptacle notch. The tightened grub screw and the "right-hand orientation rule" for the connector, ensure a high reproducibility in mode field position and angle, which is especially important for attaching and reattaching polarization-maintaining fibers reproducibly.
Troubleshooting
- I can‘t collimate the radiation out of a coupler. Why?
  - Have you loosened the grub screws?
    The clamp screws have to be loosened before changing the focus setting, Please refer to the adjustment instructions of the individual couplers for more details.
  - Have you checked, if the fiber is correctly placed within the fiber receptacle of the coupler?
    The fiber connector might not be placed correctly within the receptacle of the coupler/collimator. In particular, please check the small grub screw holding the connector's ferrule (e.g. for FC PC and FC APC type couplers). It might be in the way. Please refer to the adjustment instructions of the individual couplers/collimators for more details.
  - Have you checked the eccentric key for damage?
    The eccentric key might be damaged or broken. If that is the case, try another eccentric key of the same type and (or) contact Schäfter+Kirchhoff for replacement.
  - Are you using a fiber with an end cap?
    Collimating/coupling with an end cap fiber cable is no different than with a standard fiber cable. However, the focus position might vary a little (<200 µm) when swapping a standard fiber cable for a fiber cable with end cap.

    The eccentric key 55EX-5 is used to adjust the focus position. In some cases the stroke is not large enough.

    This includes working with very small wavelegths or very large wavelengths. Please try using a different groove instead.
  - Are you using the optimum groove for adjusting the focus setting with the eccentric key?
    The distance lens to fiber end face is changed by means of an eccentric key. This key has a pin. The lens tube has one (or more) circumferential groove(s). The lens tube is shifted axially by rotating the eccentric.
    In order to cover the entire adjustment range, it might be necessary to switch from one to the next circumferential groove.

    Sometimes it is easier to do a coarse alignment by shifting the rear part manually (instead of using the eccentric key). Then, the right groove for a proper fine adjustment with the eccentric will appear in the aperture of the fiber collimator for the eccentric and you can finish the fine adjustment using the eccentric key.

Downloads

Adjustment_60FC-Q.pdf (Manual)

Article_FiberCollimators.pdf (Technote)

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.

Accessories

Adjustment Tools Fiber Optics

Clamp Collars Series CC

for all collimators with flange, different sizes

Overview

Lens Code	M20L	M25	M30	M35	M40	M40L	M50L	M60	M60L	M75	M100	M100S	M125	M150	M200
Focal length f'	20.0	25.0	30.0	35.0	40.0	40.0	50.0	60.0	60.0	75.0	100	100	125	150	200
Numerical Apperture NA	0.17	0.23	0.19	0.16	0.21	0.28	0.24	0.14	0.2	0.16	0.24	0.12	0.16	0.16	0.12
Clear apert. max. [mm]	6.8	11.4	11.4	11.5	17	24	24	17	24	24	48	24	40	49	49
Correction - achrom.	X	X	X	X	X	X	X	X	X	X	X	X		X	X
390 - 670 nm								33
400 - 700 nm	01	01	01				01		01	01	01	01		01	01
400 - 1000 nm		24	24	24	24	24	24		24	24	24	24
420 - 700 nm		26	26	26	26	26			26	26	26	26		26	26
450 - 700 nm	04	04	04		04			04			04				04
630 - 980 nm								10
630 - 1080 nm					54								54
650 - 1050 nm	02	02	02			02	02		02	02	02	02
750 - 1550 nm			37	37	37	37	37		37	37	37	37		37	37
980 - 1550 nm								08
1050 - 1620 nm	03	03				03				03
Lens Code	M20L	M25	M30	M35	M40	M40L	M50L	M60	M60L	M75	M100	M100S	M125	M150	M200
Focal length f'	20.0	25.0	30.0	35.0	40.0	40.0	50.0	60.0	60.0	75.0	100	100	125	150	200
Numerical Apperture NA	0.17	0.23	0.19	0.16	0.21	0.28	0.24	0.14	0.2	0.16	0.24	0.12	0.16	0.16	0.12
Clear apert. max. [mm]	6.8	11.4	11.4	11.5	17	24	24	17	24	24	48	24	40	49	49
Correction - achrom.	X	X	X	X	X	X	X	X	X	X	X	X		X	X
