Polarizers 48PM-S

Polarizing beam splitting cube, in adjustment mount

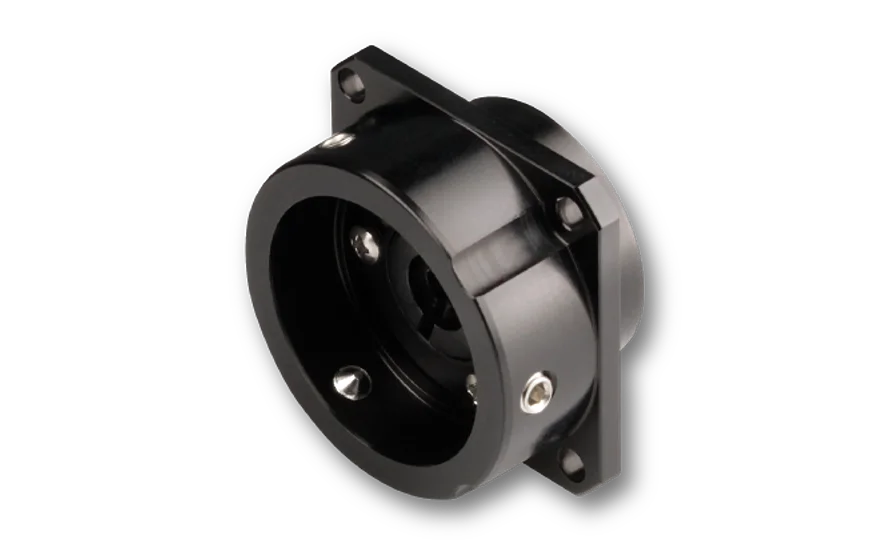

48PM-S

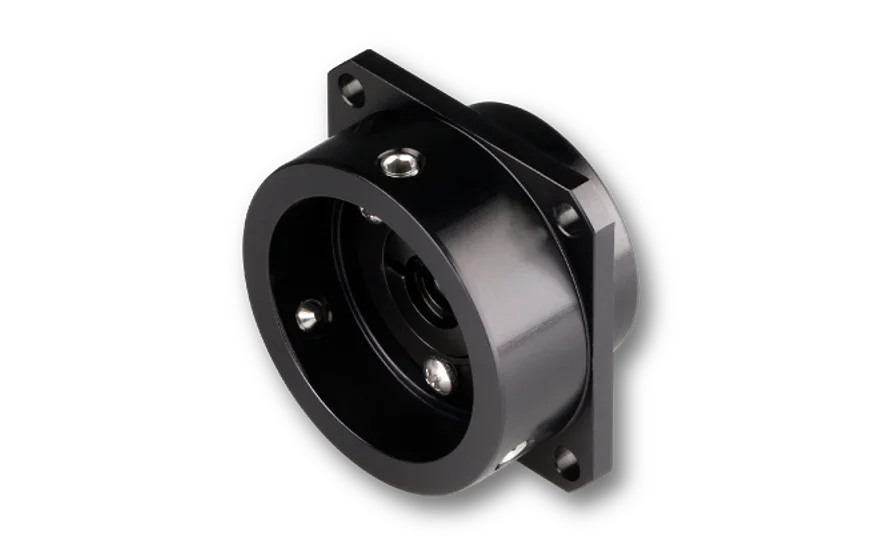

48PM-S-D

Features

The polarization beam splitting cubes 48PM-S are used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted. They have an adjustable mount and are designed to be integrated into the multicube system.

Polarizing beam splitting cube
Extinction ratio up to 10,000 : 1
Clear aperture 3.5 mm
Broadband AR coating
In adjustable mount

Different designes are available:

System mount Ø 19.5 mm
Decentered system mount Ø 19.5 for use in combination with beam splitting plates
System mount Ø 19.5 mm and with integrated attenuator
Laterally adjustable mount

Description

The polarization beam splitting cubes 48PM-S are used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted.

Order Options

Order Code	Series	Wavelength Range	Extinction	Clear Aperture	Decentered	Attenuator
48PM-S-A	48PM-S	450 - 700 nm	10,000 : 1	Ø 3.5 mm	-	-
48PM-S-B	48PM-S	750 - 1100 nm	10,000 : 1	Ø 3.5 mm	-	-
48PM-S-C	48PM-S	1100 - 1700 nm	10,000 : 1	Ø 3.5 mm	-	-
48PM-S-W	48PM-S	450 - 1000 nm	10,000 : 1	Ø 3.5 mm	-
48PM-S-V	48PM-S	390 - 480 nm	10,000 : 1	Ø 3.5 mm	-	-
48PM-S-370-420	48PM-S	370 - 420 nm	500 : 1	Ø 3.5 mm	-	-
48PM-S-297-313	48PM-S	297 - 313 nm	500 : 1	Ø 3.5 mm	-	-
48PM-S-RGB	48PM-S	400 - 700 nm	1,000 : 1	Ø 3.5 mm	-	-
48PM-S-D-A	48PM-S-D	450 - 700 nm	10,000 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-B	48PM-S-D	750 - 1100 nm	10,000 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-C	48PM-S-D	1100 - 1700 nm	10,000 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-W	48PM-S-D	450 - 1000 nm	10,000 : 1	Ø 3.5 mm	0.3 mm
48PM-S-D-V	48PM-S-D	390 - 480 nm	10,000 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-370-420	48PM-S-D	370 - 420 nm	500 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-297-313	48PM-S-D	297 - 313 nm	500 : 1	Ø 3.5 mm	0.3 mm	-
48PM-S-D-RGB	48PM-S-D	400 - 700 nm	1,000 : 1	Ø 3.5 mm	0.3 mm	-
48PM-SXY-1-A	48PM-SXY-1	450 - 700 nm	10,000 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-B	48PM-SXY-1	750 - 1100 nm	10,000 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-C	48PM-SXY-1	1100 - 1700 nm	10,000 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-W	48PM-SXY-1	450 - 1000 nm	10,000 : 1	Ø 3.5 mm	adjustable
48PM-SXY-1-V	48PM-SXY-1	390 - 480 nm	10,000 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-370-420	48PM-SXY-1	370 - 420 nm	500 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-297-313	48PM-SXY-1	297 - 313 nm	500 : 1	Ø 3.5 mm	adjustable	-
48PM-SXY-1-RGB	48PM-SXY-1	400 - 700 nm	1,000 : 1	Ø 3.5 mm	adjustable	-
48PM-AT-19.5AC-A	48PM-AT-19.5AC	450 - 700 nm	10,000 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-B	48PM-AT-19.5AC	750 - 1100 nm	10,000 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-C	48PM-AT-19.5AC	1100 - 1700 nm	10,000 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-W	48PM-AT-19.5AC	450 - 1000 nm	10,000 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-V	48PM-AT-19.5AC	390 - 480 nm	10,000 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-370-420	48PM-AT-19.5AC	370 - 420 nm	500 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-297-313	48PM-AT-19.5AC	297 - 313 nm	500 : 1	Ø 3.5 mm	-	x
48PM-AT-19.5AC-RGB	48PM-AT-19.5AC	400 - 700 nm	1,000 : 1	Ø 3.5 mm	-	x

Accessories

Polarization Analyzer SK010PA

Measurement tool for coupling into polarization-maintaining fiber cables

Overview

Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
350 - 700 nm	01		01	01	01
390 - 670 nm													33
400 - 700 nm								01	01			01
420 - 700 nm										26	26
450 - 700 nm								04	04		04
600 - 1050 nm	02			02
600 - 1100 nm			02		02
630 - 980 nm													10
630 - 1080 nm							10				54
650 - 1050 nm								02	02
650 - 1150 nm		07
750 - 1550 nm									37	37
980 - 1550 nm						08	08						08
1050 - 1620 nm								03
1050 - 1550 nm	03			03	03
1050 - 1650 nm			03
Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
