48PM-S-D-W

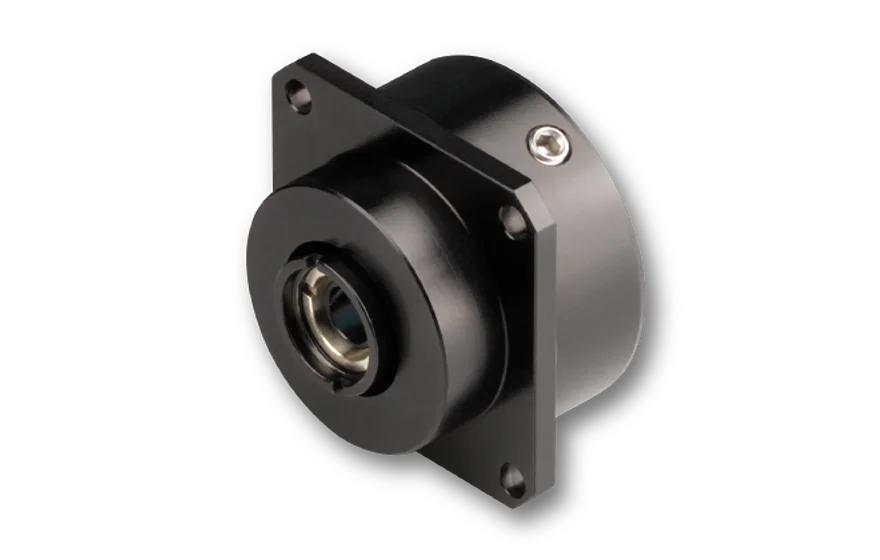

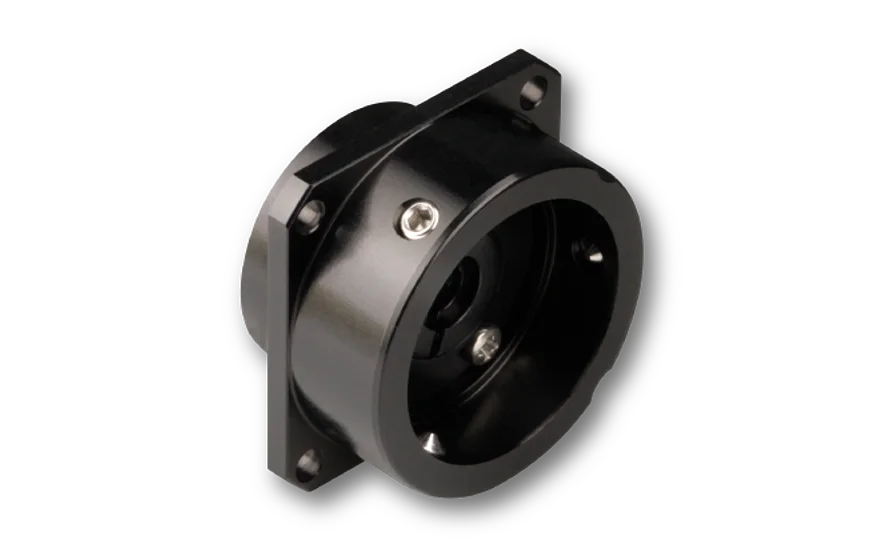

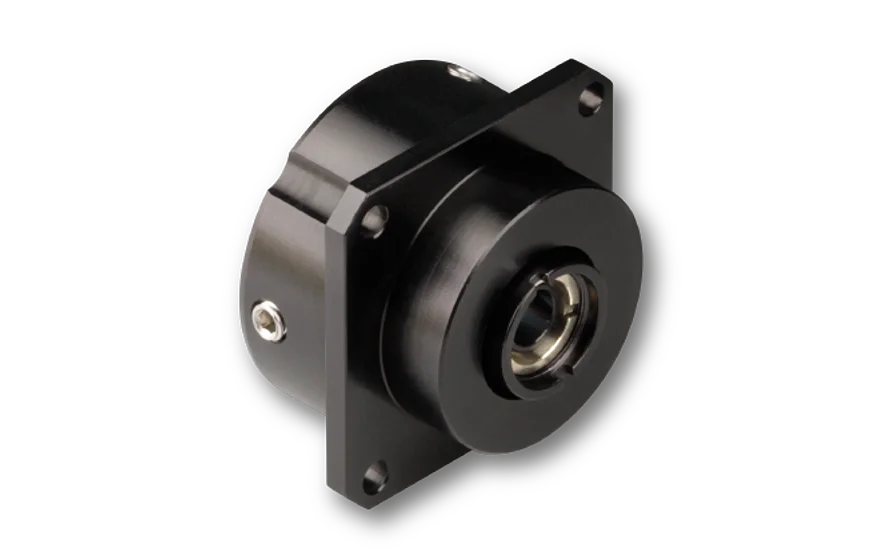

Polarizing beam splitting cube, in adjustment mount, decentered

48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D

Features

The polarization beam splitting cube 48PM-S-D-W is used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted. It has a decentered system mount Ø 19.5 mm and is used in combination with dichroic beam combiners 48BC-CC or with beam splitting plates 48BS-CC. It has an adjustable mount and is designed to be integrated into the multicube system.
  • Polarizing beam splitting cube
  • Wavelength range 450 - 1000 nm
  • Extinction ratio 10,000 : 1
  • Clear aperture 3.5 mm
  • Broadband AR coating
  • In adjustable mount
  • System mount Ø 19.5 mm
  • Decentered 0.3 mm

Technical data

48PM-S-D-W

Order code
48PM-S-D-W
Type
Polarizing beam splitting cube
Wavelength range
450 - 1000 nm
Extinction Ratio
10,000 : 1
AR Coating
450 - 1000 nm
Clear aperture
3.5 mm
Decentered
0.3 mm
Rotation range
360°
Connection
Flange mount
System mount
Ø 19.5 mm
Housing material
black anodized aluminum
Weight

Dimensions (for a complete dimensional drawing please refer to the downloads section)

48PM-S-D
