Fiber-to-Fiber Couplers 60FF

Compact, rugged and highly efficient opto-mechanical unit for interconnecting two fiber cables

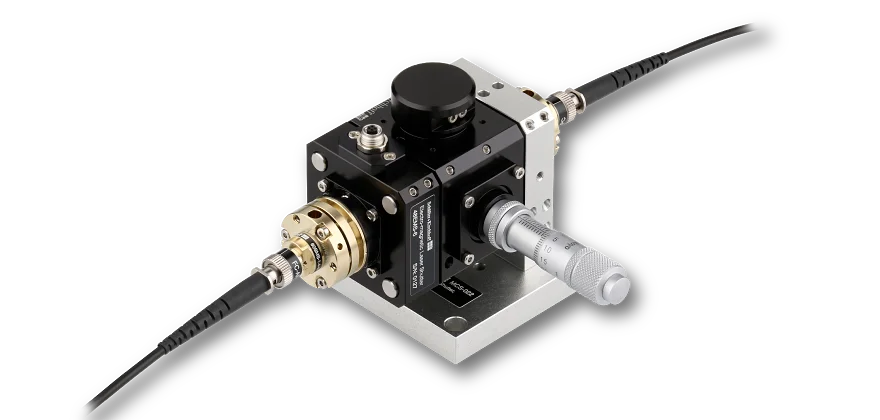

Fiber-to-Fiber Coupler

Fiber-to-fiber coupler 60FF-T

48AT-0

Products

Fiber-to-Fiber Coupler

Fiber-coupled Attenuator

For single-moder or PM fiber cables
Insertion loss typically 1.5 dB, extinction > 60 dB
Adjustable
Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as interface between different types of single-mode fibers or connectors

Fiber-coupled electro-magnetic laser shutter

Please note: This is not a laser safety shutter according to EN 60825. Additional laser safety measures may be necessary.

Fiber-to-fiber coupler with attenuator and electro-magnetic shutter

Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as interface between different types of single-mode fibers or connectors

Fiber-coupled attenuator, motorized

For single-moder or PM fiber cables
Insertion loss typically 1.5 dB, extinction > 60 dB
Adjustable
Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as interface between different types of single-mode fibers or connectors
Motorized with servo motor

Fiber-to-fiber coupler with one integrated wave plate / retardation optics

For single-moder or PM fiber cables
As an option input polarizer
adjustable halfe-wave plate or quarter-wave plate
Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as interface between different types of single-mode fibers or connectors

Fiber-to-fiber coupler with two integrated wave plates / retardation optics

For single-moder or PM fiber cables
As an option input polarizer
adjustable halfe-wave plate and quarter-wave plate
Compact, rugged, transportable and sealed opto-mechanical units
Very high long-term stability, efficiency and reproducability
Can be used as interface between different types of single-mode fibers or connectors

Order Code	Special Features
60FF-T
48AT-0	with attenuator
48EMS-0	with electro-magnetic shutter
48-MCS-032	with electro-magnetic shutter and attenuator
48AT-MD	with attenuator, motorized
48-MCS-025	with one integrated wave plate
48-MCS-029	with two integrated wave plates
