Polarization Analyzer adapters for fiber cables with optics

to use with SK010PA Polarization Analyzers

Adapters for fiber cables with optics with different receptacles for attaching fiber cables to the Series SK010PA Polarization Analyzers.
Includes additional collimating optics.

  • Receptacles type FC (0°and 8°-polish, wide key)
  • Focal lengths 6.2 mm or 11 mm
  • Various AR coatings UV-IR
Please note: For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.

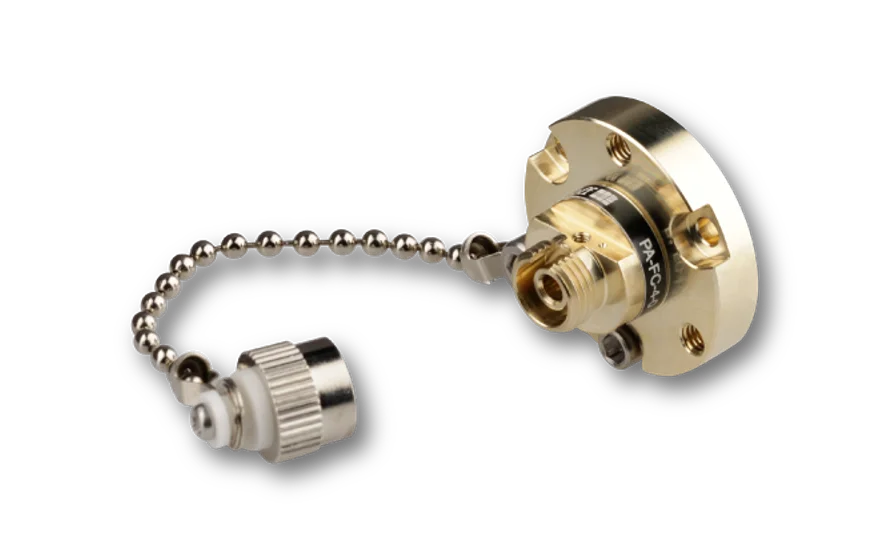

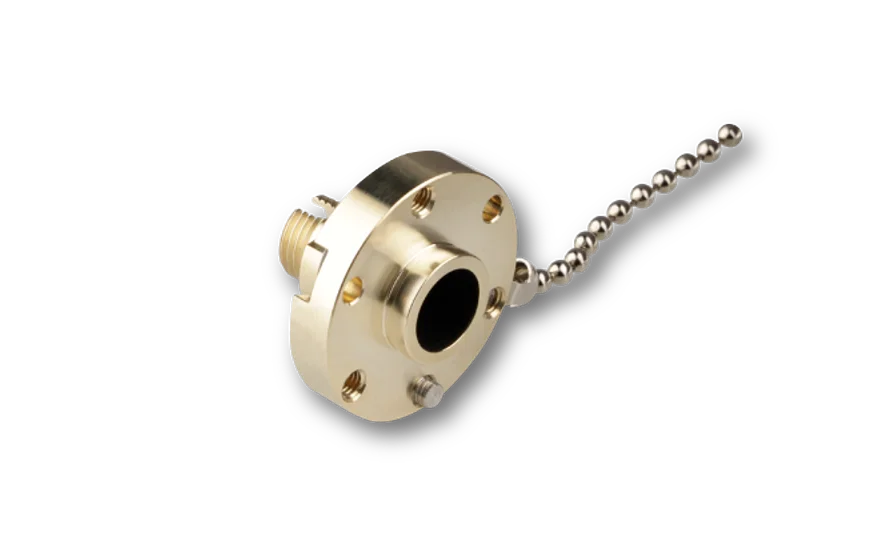

PA-FC-4-0
PA-FC-4-0
PA-FC-4-0
PA-FC-4-0
PA-FC-4-0
PA-FC-4-0

Products

PA-FC-4-A6.2S-01
PA-FC-4-A6.2S-01
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 370 - 600 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-4-A6.2S-02
PA-FC-4-A6.2S-02
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 600 - 1050 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.

PA-FC-4-A6.2S-03
PA-FC-4-A6.2S-03
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 1050 - 1550 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-0-A6.2S-01
PA-FC-0-A6.2S-01
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 370 - 600 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-0-A6.2S-02
PA-FC-0-A6.2S-02
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 600 - 1050 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-0-A6.2S-03
PA-FC-0-A6.2S-03
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 1050 - 1550 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-4-A11-01
PA-FC-4-A11-01
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 370 - 600 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-4-A11-02
PA-FC-4-A11-02
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 600 - 1050 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-4-A11-03
PA-FC-4-A11-03
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 1050 - 1550 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.

PA-FC-0-A11-01
PA-FC-0-A11-01
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 370 - 600 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


PA-FC-0-A11-02
PA-FC-0-A11-02
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 600 - 1050 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.



PA-FC-0-A11-03
PA-FC-0-A11-03
Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC-PC, wide key
  • Paraxial coupling axis
  • Collimating optics with focal length 11 mm
  • Wavelength range: 1050 - 1550 nm
Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.



Order options

Order CodeConnector TypeCollimating Optics Focal Length fWavelength Range
PA-FC-4-A6.2S-01FC APC, inclined coupling axis, wide key6.2 mm  370 -   600 nm
PA-FC-4-A6.2S-02FC APC, inclined coupling axis, wide key6.2 mm  600 - 1050 nm
PA-FC-4-A6.2S-03FC APC, inclined coupling axis, wide key6.2 mm1050 - 1550 nm
PA-FC-0-A6.2S-01FC PC, paraxial coupling axis, wide key6.2 mm  370 -   600 nm
PA-FC-0-A6.2S-02FC PC, paraxial coupling axis, wide key6.2 mm  600 - 1050 nm
PA-FC-0-A6.2S-03FC PC, paraxial coupling axis, wide key6.2 mm1050 - 1550 nm
PA-FC-4-A11-01FC APC, inclined coupling axis, wide key11 mm  370 -   600 nm
PA-FC-4-A11-02FC APC, inclined coupling axis, wide key11 mm  600 - 1050 nm
PA-FC-4-A11-03FC APC, inclined coupling axis, wide key11 mm1050 - 1550 nm
PA-FC-0-A11-01FC PC, paraxial coupling axis, wide key11 mm  370 -   600 nm
PA-FC-0-A11-02FC PC, paraxial coupling axis, wide key11 mm  600 - 1050 nm
PA-FC-0-A11-03FC PC, paraxial coupling axis, wide key11 mm1050 - 1550 nm

FAQ

  • Polarization Analyzer accessories
    • There are two adapter options - one without integrated optics and one with integrated optics. What is the best option for me?
      For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.
