PA-FC-4-A6.2S-03

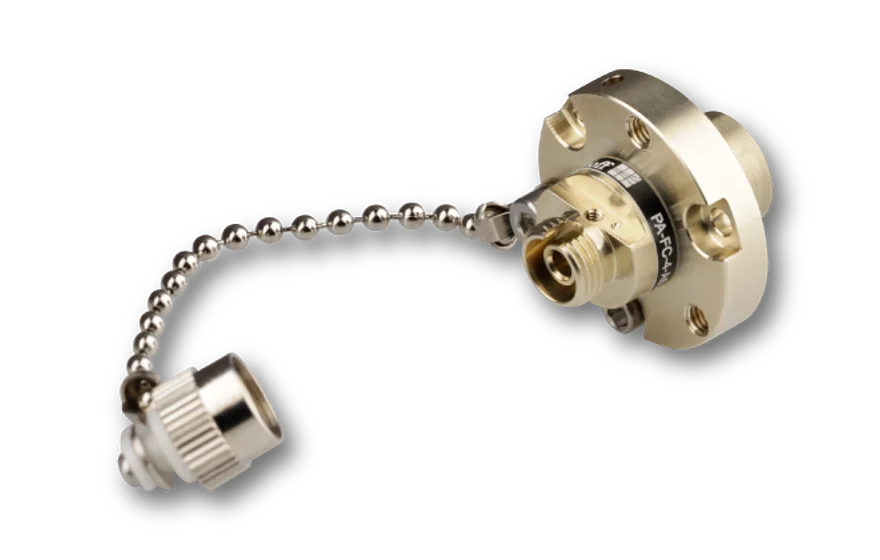

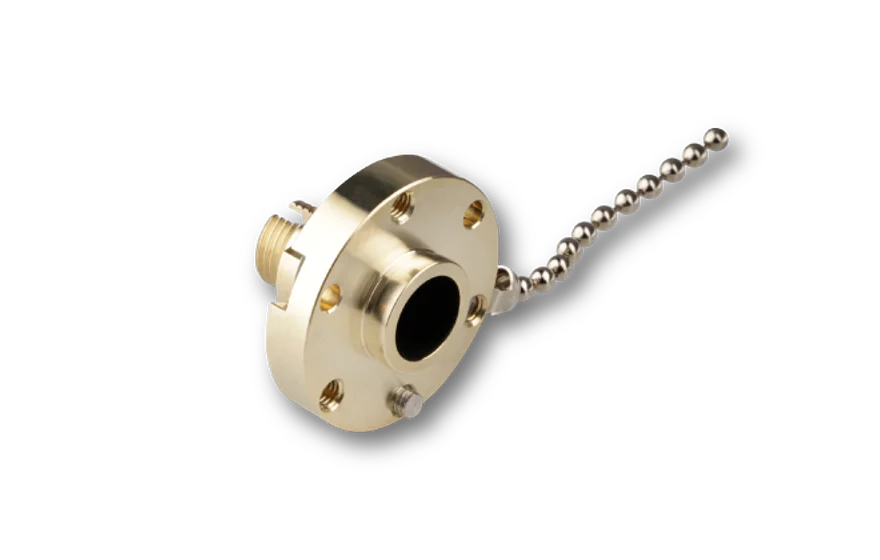

Polarization Analyzer adapter for fiber cables with optics f' 6.2 mm

PA-FC-4-Axx-xx
PA-FC-4-Axx-xx
PA-FC-4-Axx-xx
PA-FC-4-Axx-xx
PA-FC-4-Axx-xx
PA-FC-4-Axx-xx

Features

Polarization Analyzer adapter for fiber cables with optics for collimating the beam.
  • FC APC, wide key
  • Inclined coupling axis
  • Collimating optics with focal length 6.2 mm
  • Wavelength range: 1050 - 1550 nm

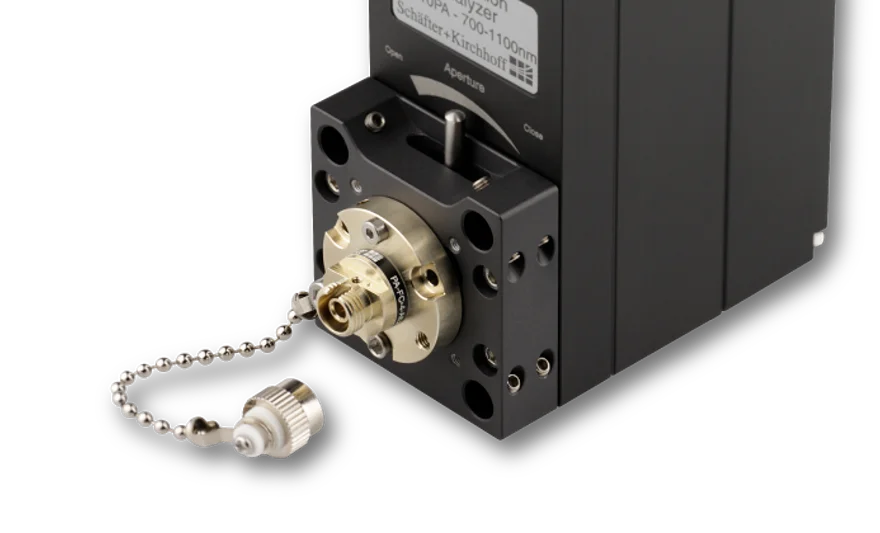

Please note: This adapter is for use with the Polarization Analyzer SK0101PA only. For fiber adapters without optics (Bulkhead adapters) please see here. For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.


FAQ

  • Polarization Analyzer accessories
    • There are two adapter options - one without integrated optics and one with integrated optics. What is the best option for me?
      For standard applications we recommend to use an adapter without optics since any additional optics may show birefringence and so may falsify the measurement result.
