Laser Modules type 13LR/13LRM

Special features of Laser Modules Type 13LR/13LRM

Technotes_13LR

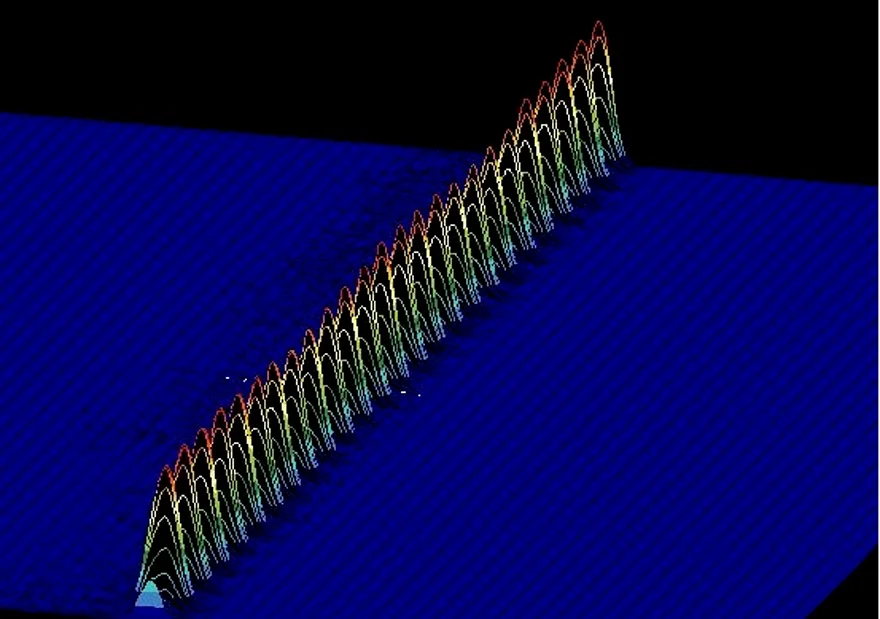

Chain of equidistant dots

The laser diode beam sources of type13LR/13LRM have a fan angle, a constant line width and an approx. uniform intensity distribution along the laser line.

However, the fine-structure is a chain of equidistant dots.

Technotes_13LRprofile

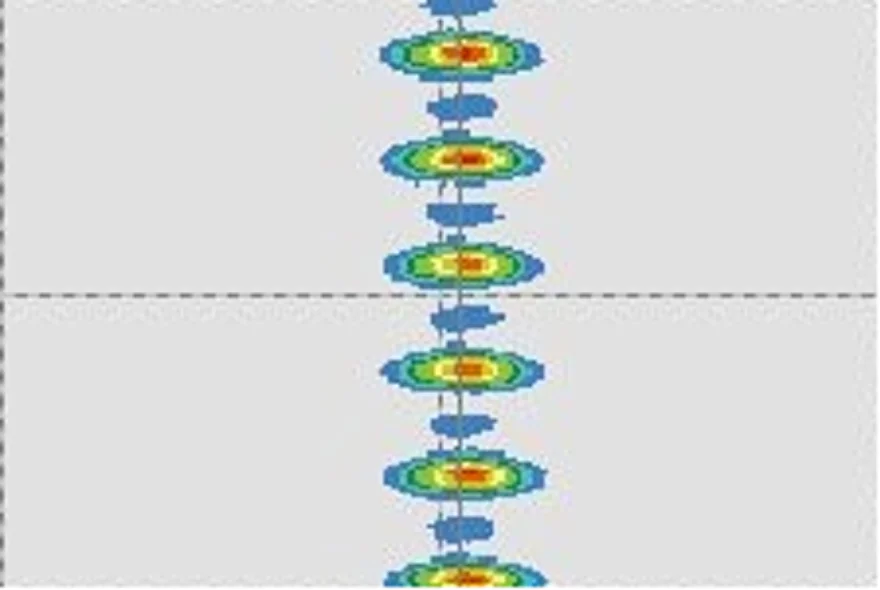

Intensity Profile

The chain of equidistant dots has a spacing of approx. the line width for a lasers of type 13LR and approx. half the line width for lasers of type 13LRM. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian.

Due to this special intensity profile the lasers  of type 13LR and 13LRM are not suitable for stray light photometry.
