48PM-S-B

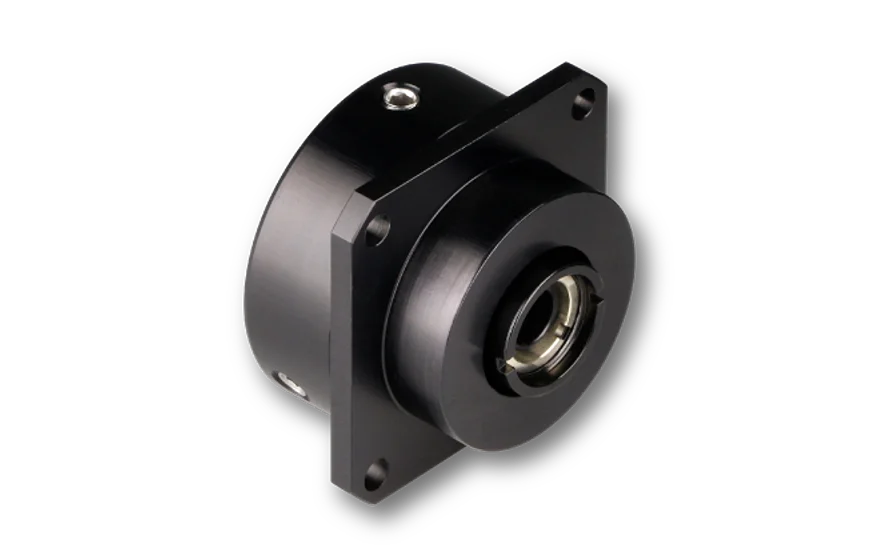

Polarizing beam splitting cube, in adjustment mount

48PM-S
48PM-S
48PM-S
48PM-S
48PM-S-D
48PM-S-D
48PM-S-D
48PM-S-D

Features

The polarization beam splitting cube 48PM-S-B is used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted. It has an adjustable mount and is designed to be integrated into the multicube system.
  • Polarizing beam splitting cube
  • Wavelength range 750 -1100 nm
  • Extinction ratio 10,000 : 1
  • Clear aperture 3.5 mm
  • Broadband AR coating
  • In adjustable mount
  • System mount Ø 19.5 mm

Technical data

48PM-S-B

Order code
48PM-S-B
Type
Polarizing beam splitting cube
Wavelength range
750 -1100 nm
Extinction Ratio
10,000 : 1
AR Coating
750 -1100 nm
Clear aperture
3.5 mm
Rotation range
360°
Connection
Flange mount
System mount
Ø 19.5 mm
Housing material
black anodized aluminum
Weight

Downloads

Dimensional drawing
980120113203.pdf (Dimensional drawing)
STEP model
980120113203.stp (STEP model)
