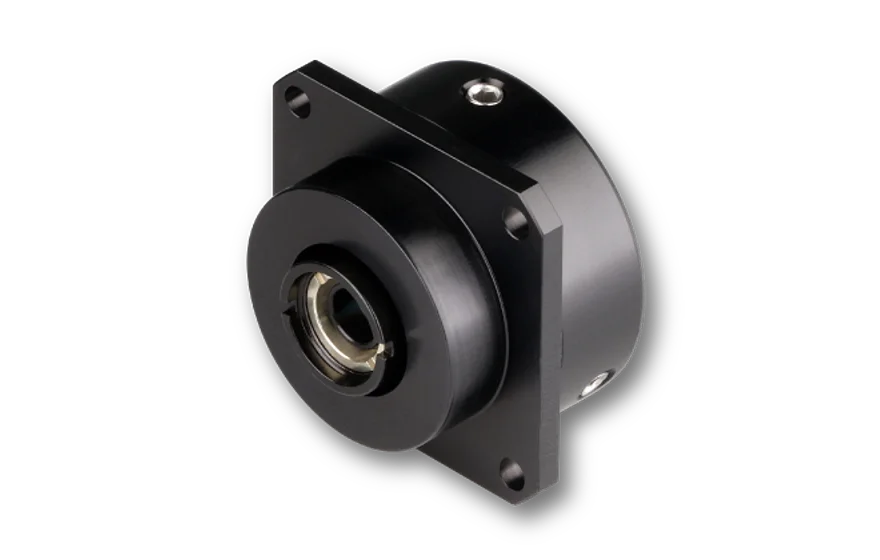

48PM-S-V

Polarizing beam splitting cube, in adjustment mount

48PM-S

Features

The polarization beam splitting cube 48PM-S-V is used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted. It has an adjustable mount and is designed to be integrated into the multicube system.

Polarizing beam splitting cube
Wavelength range 390 - 480 nm
Extinction ratio 10,000 : 1
Clear aperture 3.5 mm
Broadband AR coating
In adjustable mount
System mount Ø 19.5 mm

Technical data

48PM-S-V

Order code

48PM-S-V

Type

Polarizing beam splitting cube

Wavelength range

390 - 480 nm

Extinction Ratio

10,000 : 1

AR Coating

390 - 480 nm

Clear aperture

3.5 mm

Rotation range

360°

Connection

Flange mount

System mount

Ø 19.5 mm

Housing material

black anodized aluminum

Weight
