Features

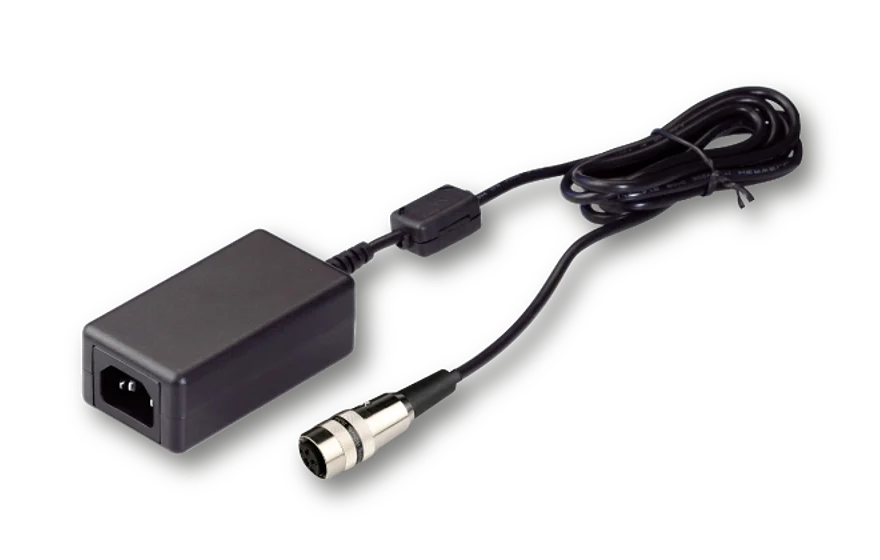

Power supply for all Laser Modules with 5 V supply voltage and with RS232 interface
Description
Power supply for all Laser Modules with 5 V supply voltage with RS232 interface.
The power supply is also suitable if the laser is operated together with a switchbox.
Technical data
Switchbox PS051007E
Input
Input voltage
100 - 240 VAC
Input current
max. 0.5 A
Input frequency
50 - 60 Hz
Input connector
IEC320-C14
Output
Output power
13 W
Output voltage
5 VDC
Output current
2.6 A
Output connector
7-pin (female), IEC 61076-2-106
Output connector type
Lumberg KV70 (female)
Output connector compatibility
SV70 (male)
Cable type
1.8 m shielded
Dimensions
86.5 x 47.4 x 32 mm
Weight
223 g
RoHS compliant
yes
