Description

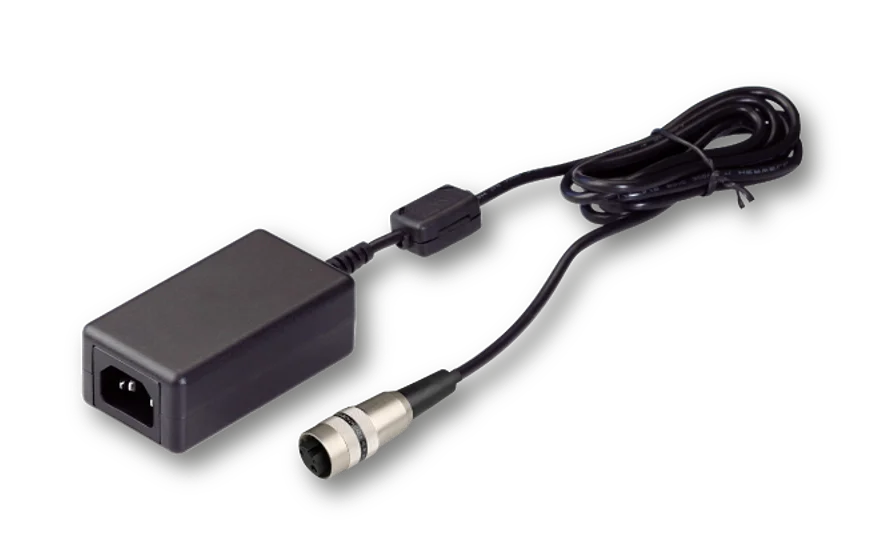

Power supply for all Laser Modules with 12 V supply voltage.
The power supply is also suitable if the laser is operated together with a switchbox.
Technical data
Switchbox PS120516E
Input
Input voltage
100 - 240 VAC
Input current
max. 0.5 A
Input frequency
50 - 60 Hz
Input connector
IEC320-C14
Output
Output power
15 W
Output voltage
12 VDC
Output current
1.25 A

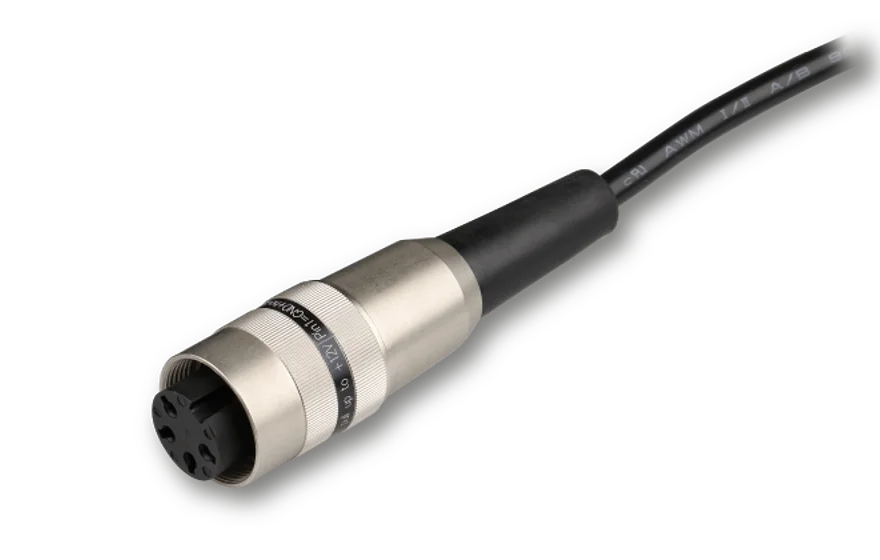

Output connector
4-pin (female), IEC 61076-2-106
Output connector type
Lumberg KV40 (female)
Output connector compatibility
SV40 (male)
Cable type
1.8 m shielded
Dimensions
86.5 x 47.4 x 32 mm
Weight
223 g
RoHS compliant
yes
