Features

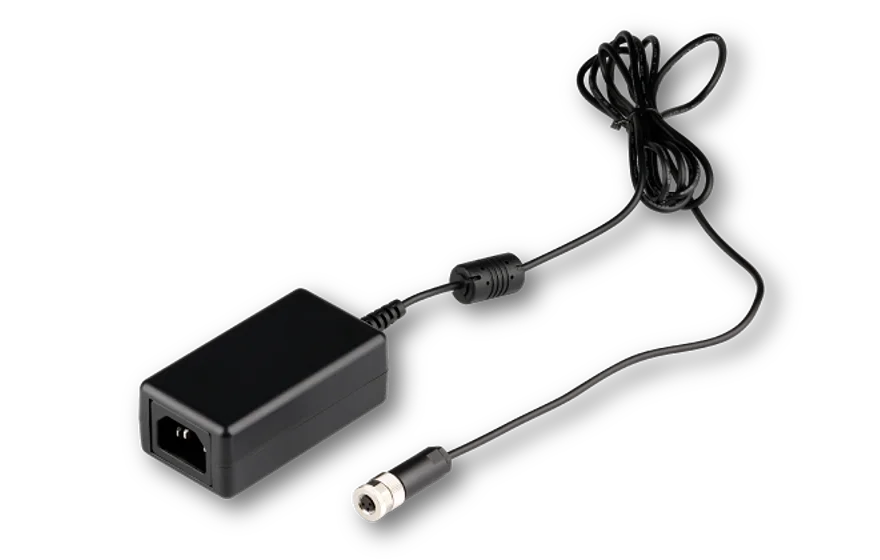

Power supply for the shutter controller type SK97121C with 24 V.
Description
Power supply for the shutter controller type SK97121C with 24 V supply voltage.
Technical details of the shutter controller type SK97121C can be found here.
Technical data
PS2430M8
Input
Input voltage
90 - 264 VAC
Input current
max. 0.5 A
Input frequency
47 - 63 Hz
Input connector
IEC320-C14
Output
Output power
30 W
Output voltage
24 VDC
Output current
1.25 A
Output connector
3-pin (female), IEC 61076-2-104
Output connector type
M8
Cable type
1.5 m shielded
Dimensions
92.5 x 49.5 x 32.5 mm
Weight
214 g
RoHS compliant
yes
Related products
for electro-magnetic shutters type 48EMS
