Features
Laser line with a large fan angle, Gaussian intensity distribution and extended depth of focus.- Line length: 1200 mm
- Line width: 660 µm
- Wavelength: 445 nm
- Working distance: 1000 mm
- Depth of focus: 1500 mm
Description

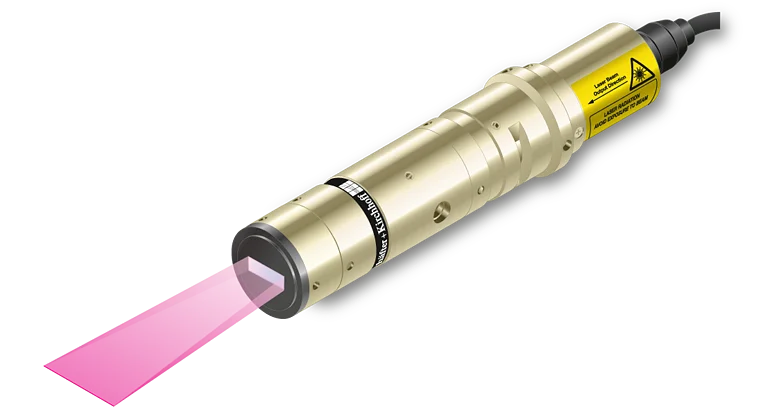

The laser diode beam source type 5LPM60-S000-1+55CM-445-61-G02-A7.5-P-6 has a fan angle of 62° and an extended depth of focus.
The intensity profile is Gaussian in line direction clipped by an aperture with an edge intensity of 2 %. The line width is constant along the laser line. Across the laser line the intensity distribution is approx. Gaussian.
The laser has integrated electronics type P with micro-controller for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
The working distance can be adjusted by adjusting the focus setting. Please note that beam parameters like line length and line width increase proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
Technical data
5LPM60-S000-1+55CM-445-61-G02-A7.5-P-6
Series
5LPM
Order Code
5LPM60-S000-1+55CM-445-61-G02-A7.5-P-6
Line profile
Gaussian Intensity Distribution
Line type
Laser Macro Line
Wavelength
445 +15/-5 nm
Laser output power
61 mW
Laser safety class
3B
Fan angle α
62 deg
Focussing range
450-inf mm
Working distance
1000 mm
Line length
1200 mm
Line width
0.66 mm
Depth of focus
1500 mm
Edge intensity
2 %
Diameter laser module
25/28 mm
Module length
91.5 mm
Installation length
1121.5 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.2 V
Max. current consumption
0.5 A
Working temperature
15 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
9 kOhm
9 kOhm
Max. modulation frequency
0.01 kHz
250 kHz
Modulation delay ON/OFF
3000/3000 µs
0.5/0.2 µs
Rise / Fall time
40000/40000 µs
0.5/0.5 µs
Accessories
Hex key WS 1.5
Screwdriver WS 1.2
Mounting Console with flat base plate
Mounting Console with base plate with dovetail profile
Power Supply 5 V
