60FC-0-M6.2-01-Ti

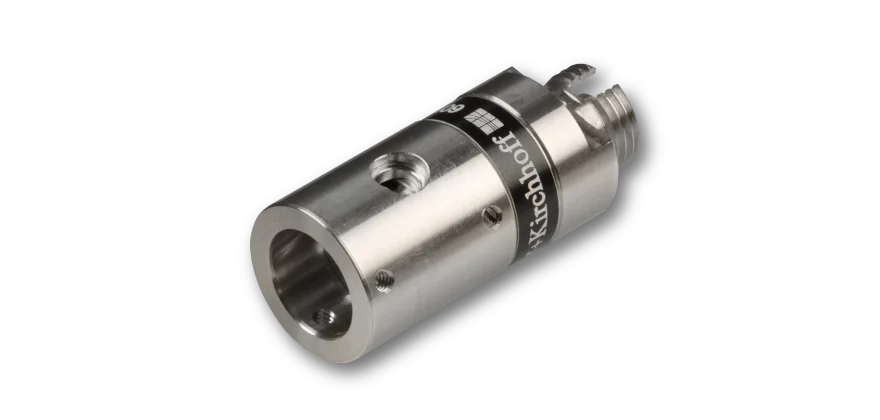

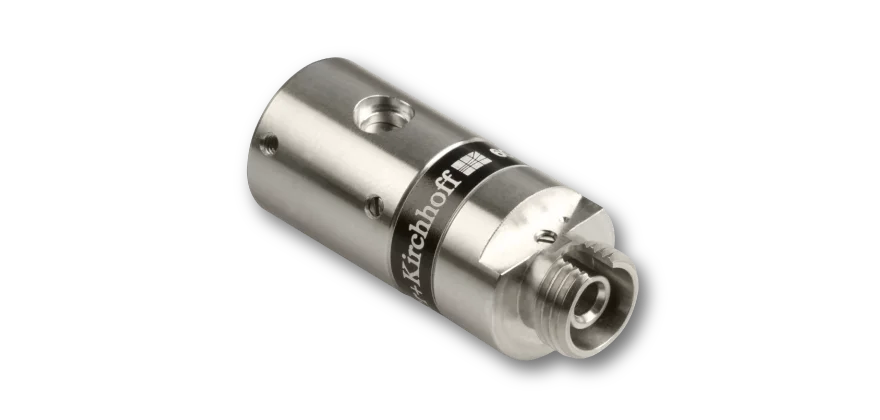

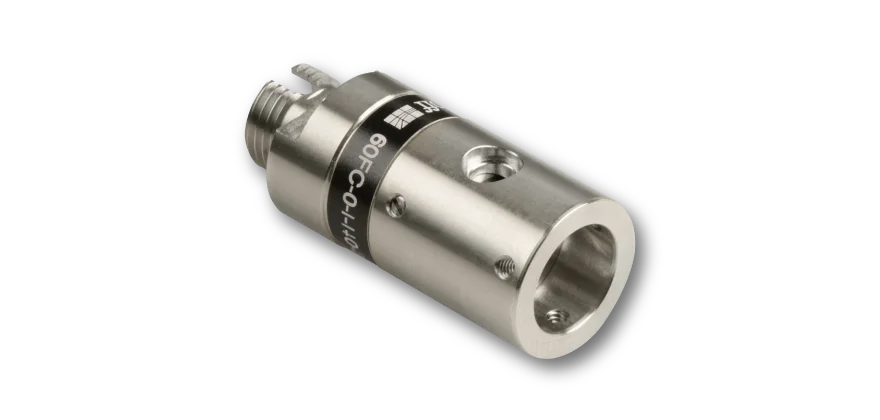

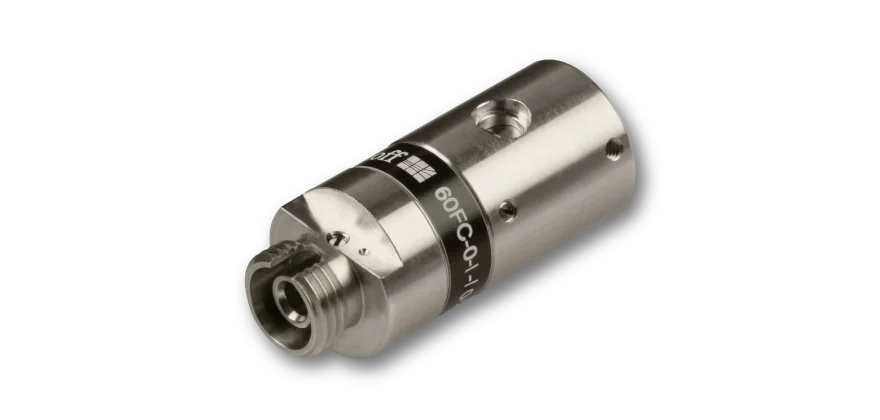

Amagnetic Fiber Collimator / Fiber Coupler for collimating radiation exiting an optical fiber or as incoupler

60FC-0-M6.2-01-Ti
60FC-0-M6.2-01-Ti
60FC-0-M6.2-01-Ti
60FC-0-M6.2-01-Ti
60FC-0-M6.2-01-Ti

Features

The amagnetic fiber collimator is designed for collimating radiation exiting from an optical fiber cable or used in reverse for coupling a beam into an optical fiber cable.
  • Focal length 6.2 mm
  • Optics type: Doublet optics, Achromatic
  • AR-Coating: 350 - 700 nm
  • Paraxial coupling axis, FC-PC connection
  • Front connector accepts attachment optics
  • Compact Ø 12 mm housing
  • Titanium design

Description

The fiber collimators series 60FC is designed for collimating radiation exiting optical fiber cables with high pointing stability. They can also be used in reverse-mode as fiber incouplers. They are suitable for single-mode and polarization-maintaining fiber cables leading to collimated beams with a Gaussian intensity profile.
The features of the coupler type 60FC include:

Optics
The achromat with focal length 6.2 mm is designed for collimating multiple wavelengths. It is AR-coated from 350 - 700 nm. It is corrected for spherical aberrations and designed in such a way that it leads to a diffraction-limited beam with an M2 < 1.05. Additionally it is corrected for chromatic aberration so that there are certain wavelengths or wavelength ranges where the focal length does not vary significantly. It is not suitable for UHV applications.

Adjustment of focus
The distance between fiber end-face and collimating optics is adjusted by means of an eccentric key. The lens does not rotate when adjusting the focus. The final focus setting is locked by means of two radially arranged clamping screws. Additionally attachment optics of series 60FC can be mounted to the front of the collimator.

Connector Type

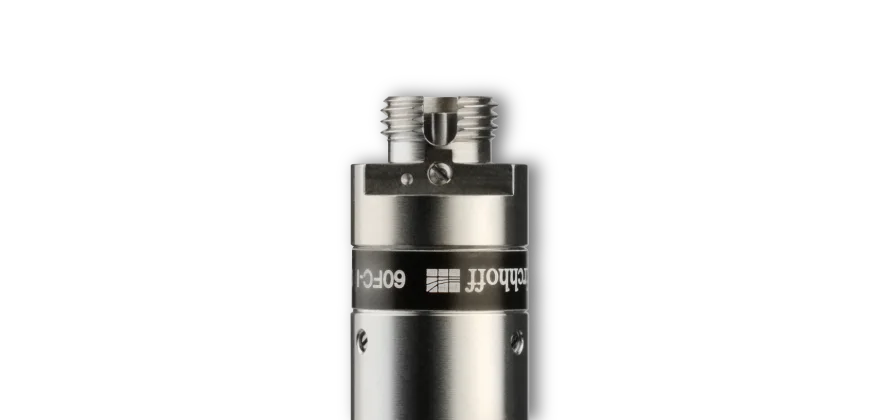

The fiber collimator is equipped with a FC-PC type receptacle. Because of the spring-loaded fiber ferrule the fiber collimator has an additional grub screw to increase pointing stability.

Material
The fiber collimator type 60FC is made from amagnetic titanium. The relative permeability is near 1 (µr = 1.00005) making it almost transparent to magnetic fields. The linear coefficient of thermal expansion is close to that of the optics so that a thermal stability over a larger temperature range can be expected.

Mounting
The collimator can be placed into a standard mirror mount using the corresponding adapters.

Technical data

60FC-0-M6.2-01-Ti

Series
60FC
Order Code
60FC-0-M6.2-01-Ti
Focal length
6.2 mm
AR coating
01
Wavelength range
350 - 700 nm
Lens type
Doublet optics
Correction
Achromatic
Numerical aperture
0.2
Clear aperture
2.5 mm
Connector type
FC-PC
Outer diameter
Ø 12 mm
Length
24 mm
Tilt adjustment
No
Front fitting
Ø 8 mm
Housing material
Titan
Weight
9 g
UHV compatible
No
Suitable for multimode
No
Note
Dimensions (for a complete dimensional drawing please refer to the downloads section)
