Polarization Filters 13PF

for attaching to 60FC-T and 60FC-L Fiber Collimators

Polarisationsfilter

Features

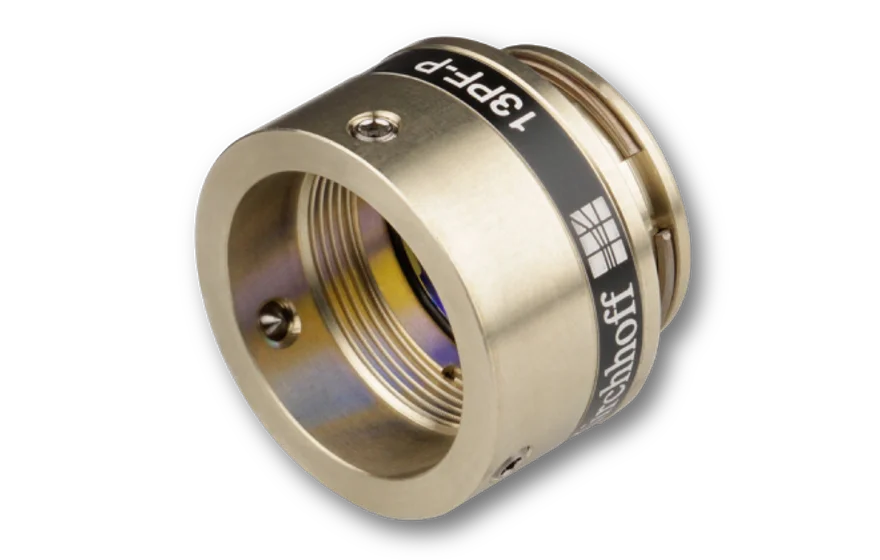

Polarization filters with system mount Ø 19.5 mm for attaching to 60FC-L and 60FC-T Fiber Collimators with outer diameter Ø 25 mm.
These filters transmit only the linear polarized component of the radiation.
There are two series:

Polarization beam splitter cubes with deflection of the unwanted orthogonally polarized radiation
Dichroic polarization filters. The filter is laminated to a glass substrate with an 0.5° inclined mounting in oder to avoid direct back-reflections

Free rotation for best adjustment with positional locking using radially arranged screws.
Polarization extinction ratio 10.000:1
Surface deviation < λ/4
Wavelength range UV - IR
Broadband AR Coating
Optional long-form housing (-L) with system mount Ø 19.5 mm for adding additional attachment optics

Order Options

Order Code	Series	Polarizer Type	Spectral Range	Extinction	Transmission	Clear Aperture	System Mount	Front Fitting
13PF-P-600-S	13PF-P	dichroic	600 - 850 nm	10⁴:1	> 84 - 93 %	12 mm	Ø 19.5 mm	-
13PF-P-750-S	13PF-P	dichroic	750 - 1250 nm	10⁴:1	> 87 - 93 %	12 mm	Ø 19.5 mm	-
13PF-P-1300-S	13PF-P	dichroic	1280 - 1500 nm	10⁴:1	> 96 - 98 %	12 mm	Ø 19.5 mm	-
13PF-P-600-L	13PF-P	dichroic	600 - 850 nm	10⁴:1	> 84 - 93 %	12 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-P-750-L	13PF-P	dichroic	750 - 1250 nm	10⁴:1	> 87 - 93 %	12 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-P-1300-L	13PF-P	dichroic	1280 - 1500 nm	10⁴:1	> 96 - 98 %	12 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-C-350-S	13PF-C	cube	340 - 440 nm	10⁴:1	> 98 %	8 mm	Ø 19.5 mm	-
13PF-C-450-S	13PF-C	cube	450 - 700 nm	10⁴:1	> 95 %	10 mm	Ø 19.5 mm	-
13PF-C-750-S	13PF-C	cube	750 - 1100 nm	10⁴:1	> 95 %	10 mm	Ø 19.5 mm	-
13PF-C-1100-S	13PF-C	cube	1100 - 1700 nm	10⁴:1	> 98 %	10 mm	Ø 19.5 mm	-
13PF-C-350-L	13PF-C	cube	340 - 440 nm	10⁴:1	> 98 %	8 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-C-450-L	13PF-C	cube	450 - 700 nm	10⁴:1	> 95 %	10 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-C-750-L	13PF-C	cube	750 - 1100 nm	10⁴:1	> 95 %	10 mm	Ø 19.5 mm	Ø 19.5 mm
13PF-C-1100-L	13PF-C	cube	1100 - 1700 nm	10⁴:1	> 98 %	10 mm	Ø 19.5 mm	Ø 19.5 mm

Accessories

Polarization Analyzer SK010PA

Measurement tool for coupling into polarization-maintaining fiber cables

Overview

Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
350 - 700 nm	01		01	01	01
390 - 670 nm													33
400 - 700 nm								01	01			01
420 - 700 nm										26	26
450 - 700 nm								04	04		04
600 - 1050 nm	02			02
600 - 1100 nm			02		02
630 - 980 nm													10
630 - 1080 nm							10				54
650 - 1050 nm								02	02
650 - 1150 nm		07
750 - 1550 nm									37	37
980 - 1550 nm						08	08						08
1050 - 1620 nm								03
1050 - 1550 nm	03			03	03
1050 - 1650 nm			03
Lens Code	A7.5	A8	A11	A15	A18	M18	M20	M25	M30	M35	M40	M50	M60
Focal length f'	7.5	8.0	11.0	15.3	18.4	18.4	20.0	25.0	30.0	35.0	40.0	50.0	60.0
Numerical Apperture NA	0.3	0.31	0.25	0.16	0.15	0.18	0.17	0.23	0.19	0.16	0.21	0.24	0.14
Clear apert. max. [mm]	4.5	4.93	5.5	5	5.5	6.6	6.8	11.4	11.4	11.5	17	24	17
Correction - achrom.								X	X	X	X	X
