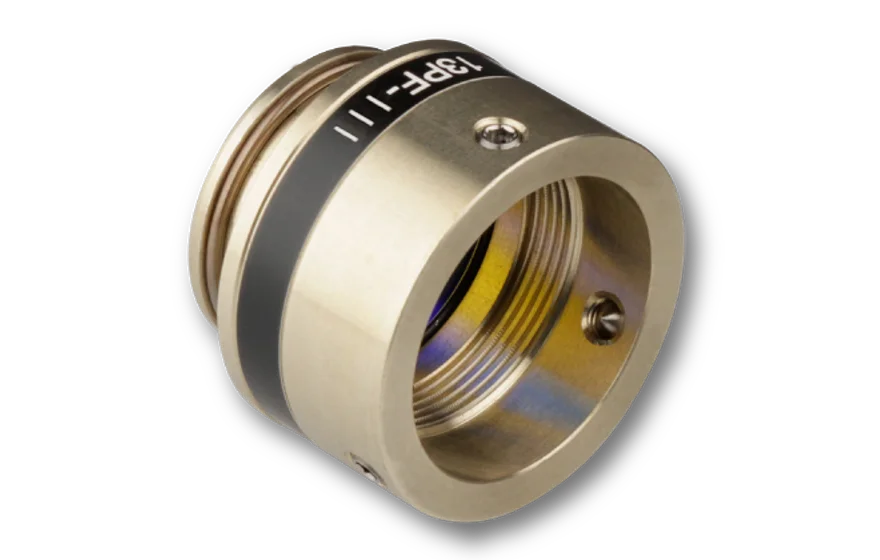

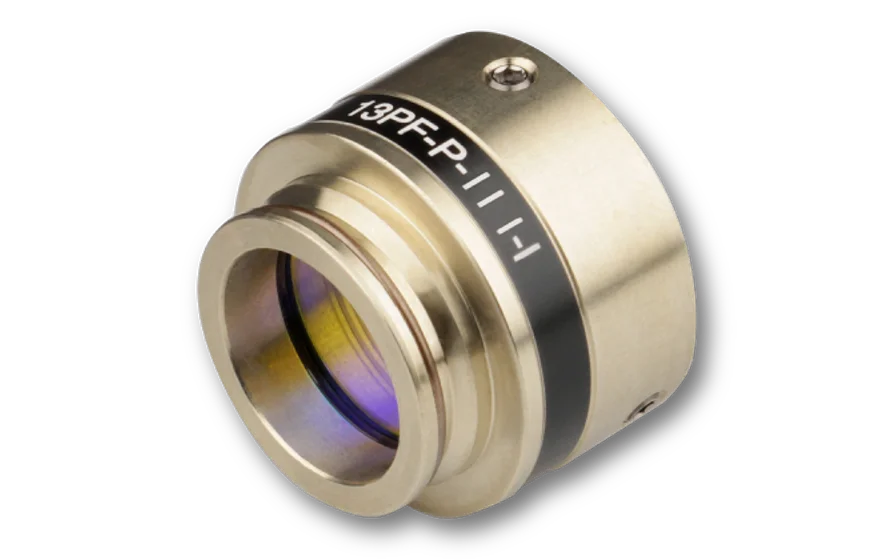

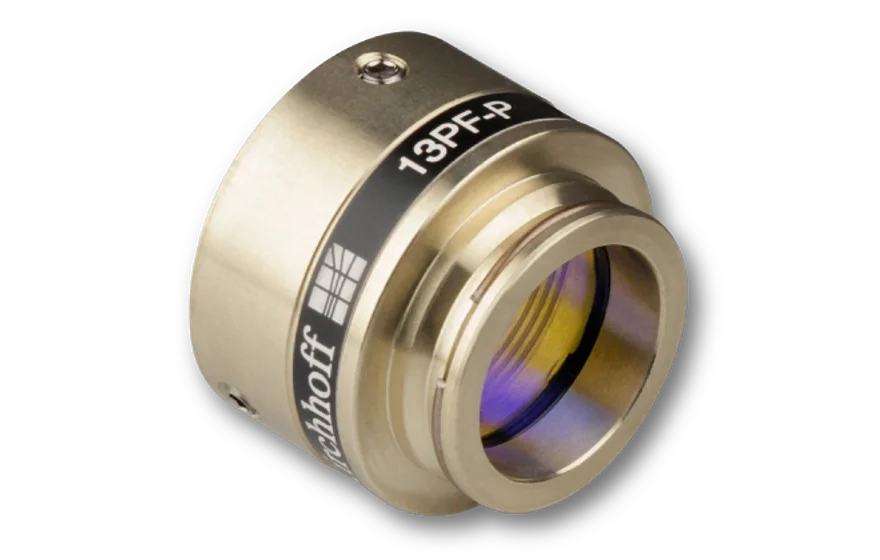

13PF-P-1300-L

Dichroic polarization filter (long version)

Polarization Filter

Features

Polarization filter with system mount Ø 19.5 mm for attaching to 60FC-L and 60FC-T Fiber Collimators with outer diameter Ø 25 mm.

This filter transmits only the linear polarized component of the radiation.

Dichroic polarization filter. The filter is laminated to a glass substrate with an 0.5° inclined mounting in oder to avoid direct back-reflections
Polarization extinction ratio 10.000:1
Surface deviation < λ/4
Clear aperture: Ø 12 mm
System mount: Ø 19.5 mm
AR Coating: 1280 - 1300 nm
Long-form housing with system mount Ø 19.5 mm for adding additional attachment optics

13PF-P-1300-L

Order Code

13PF-P-1300-L

Type

Dichroic polarization filter

Wavelengths range

1280 - 1500 nm

Extinction

10.000:1

Transmission

> 96 - 98 %

AR Coating

1280 - 1500 nm (residual reflectivity < 1.5 %)

Surface deviation

< λ/4

Clear aperture

12 mm

Inclined mount

0.5°

System mount

Ø 19.5 mm

Front fitting

System mount Ø 19.5 mm

Housing material

Nickel silver

Weight

42 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Measurement tool for coupling into polarization-maintaining fiber cables
