Polarization Beam Splitters 48PM-CC

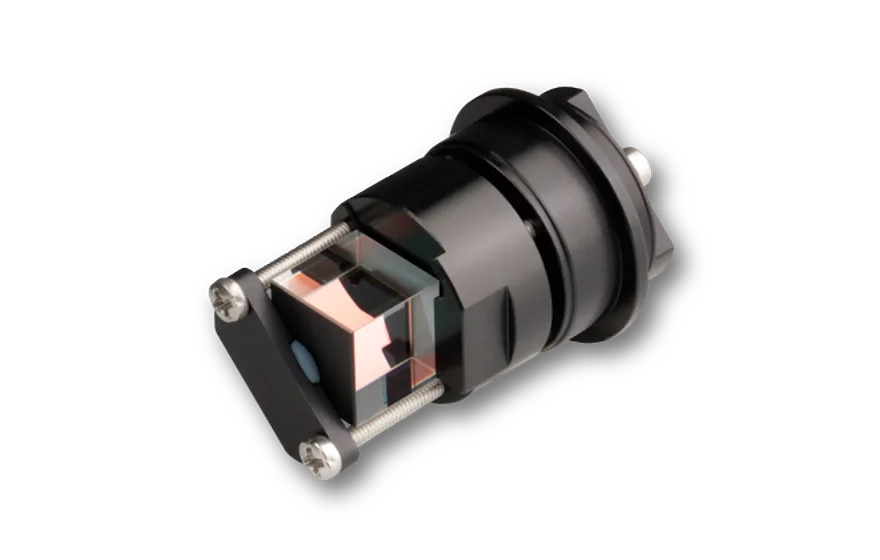

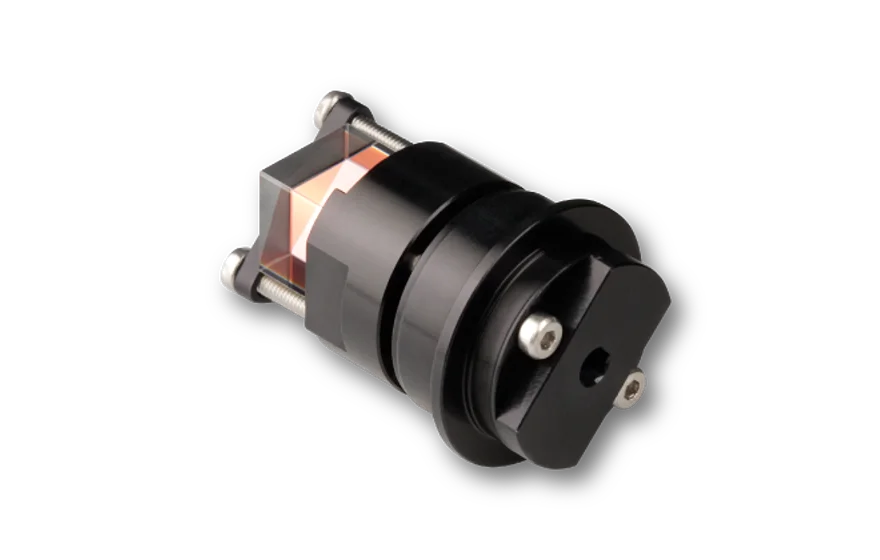

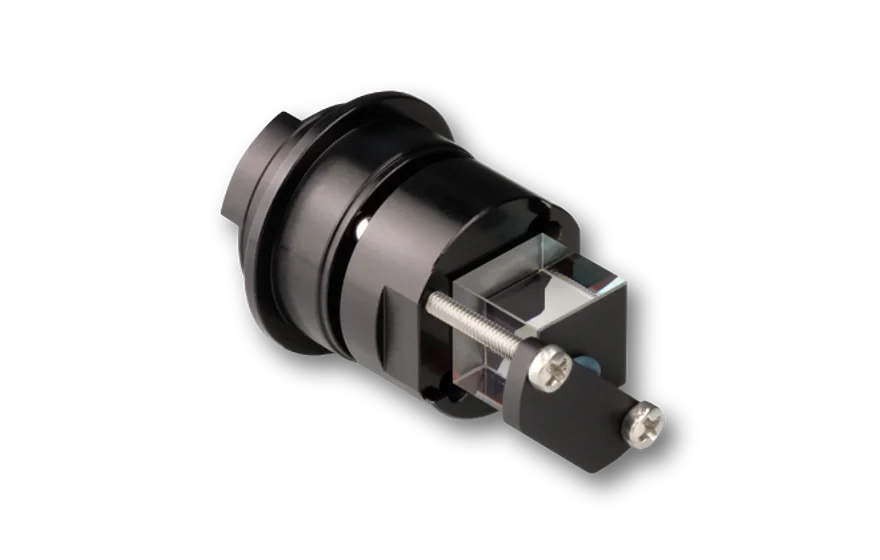

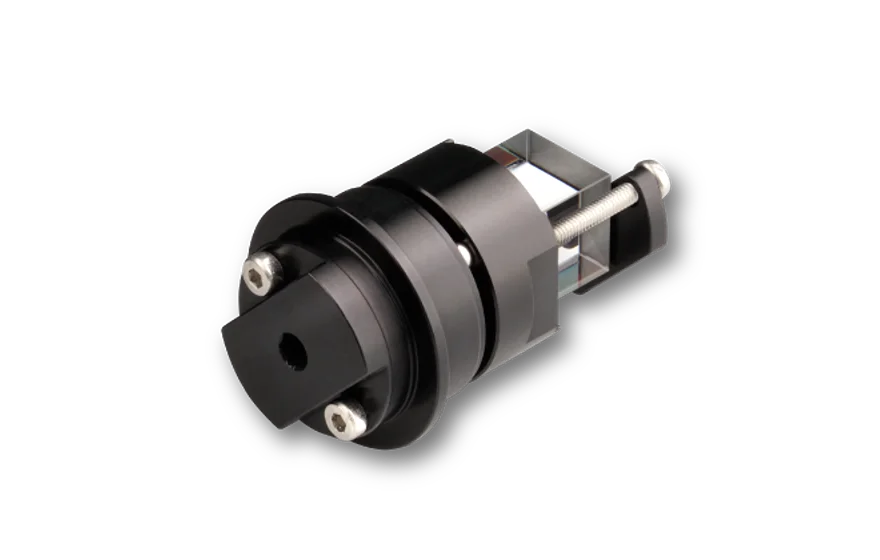

Beam splitting cube, polarization dependent, in adjustment mount

48PM-CC

Features

The polarization beam splitters 48PM-CC are polarization dependent cube beam splitters. They have an adjustable mount and are designed to be integrated into the multicube system.

Beam splitting cube
Polarization depending
Extinction ratio up to 10,000 : 1
Clear aperture up to 7 mm
Reflection angle 90°
Broadband AR coating
In adjustable mount
Shipped with clamp collar

Description

The polarization beam splitters 48PM-CC are polarization depending cube beam splitters. The splitting ratio is e.g. 50:50 for linearly polarized input radiation with polarization direction α = 45°. Maximum transmission is reached at α = 0° (p-pol.) with maximum reflection at α = 90° (s-pol.).

Order Options

Order Code	Series	Wavelength Range	Extinction	Clear Aperture
48PM-CC-A	48PM-CC	450 - 700 nm	10,000 : 1	Ø 7 mm
48PM-CC-B	48PM-CC	750 - 1100 nm	10,000 : 1	Ø 7 mm
48PM-CC-C	48PM-CC	1100 - 1700 nm	10,000 : 1	Ø 7 mm
48PM-CC-W	48PM-CC	450 - 1000 nm	10,000 : 1	Ø 7 mm
48PM-CC-V	48PM-CC	390 - 480 nm	10,000 : 1	Ø 3.5 mm
48PM-CC-370-420	48PM-CC	370 - 420 nm	500 : 1	Ø 3.5 mm
48PM-CC-297-313	48PM-CC	297 - 313 nm	500 : 1	Ø 3.5 mm
48PM-CC-RGB	48PM-CC	400 - 700 nm	200 : 1	Ø 3.5 mm
