Features
Bulkhead fiber adapter
- Receptacle type FC APC
- System mount Ø 19.5 mm
- Inclined coupling axis
- TILT alignment
Description
Technical data

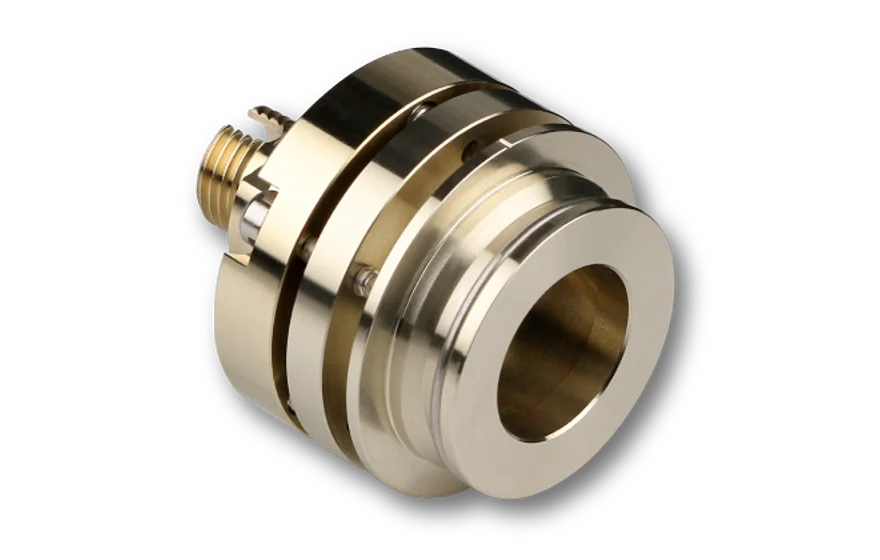

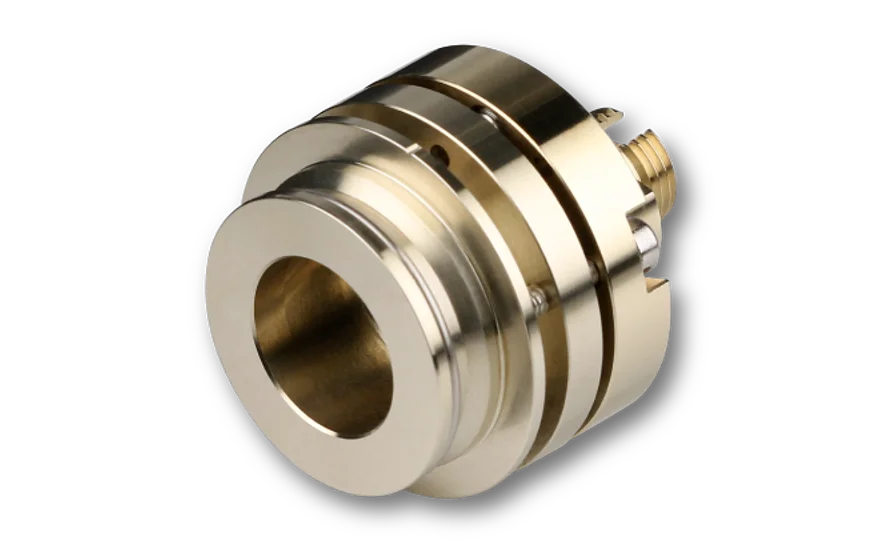

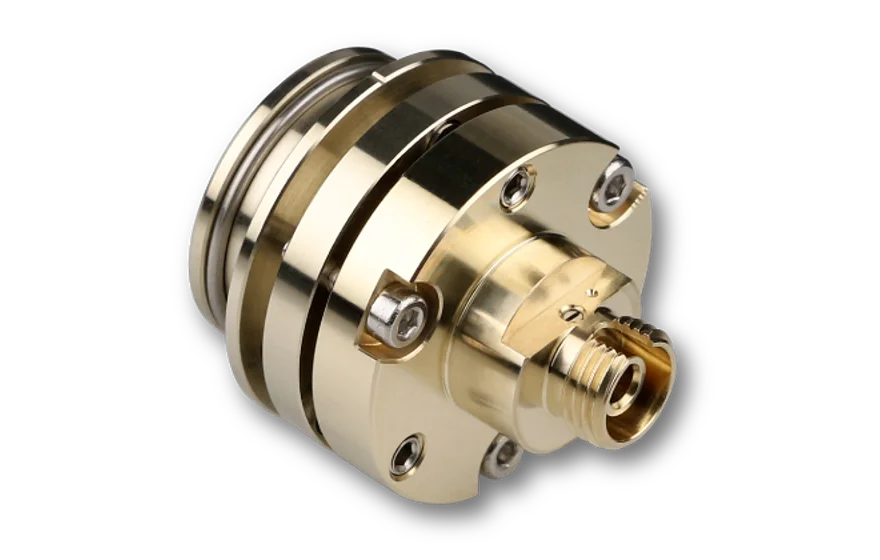

19.5AC-4-FC
Order Code
19.5AC-4-FC
Adapter
System mount
FC APC
Ø 19.5 mm
Steel ring
Inclined coupling axis
4° (for 8° polished connectors)
TILT alignment
± 1.5°
Material
Nickel silver / steel
Weight
44 g
Dimensions (for a complete dimensional drawing please refer to the downloads section)
