Adapters for Fiber Optics

19.5AC19.5
19.5AC19.5

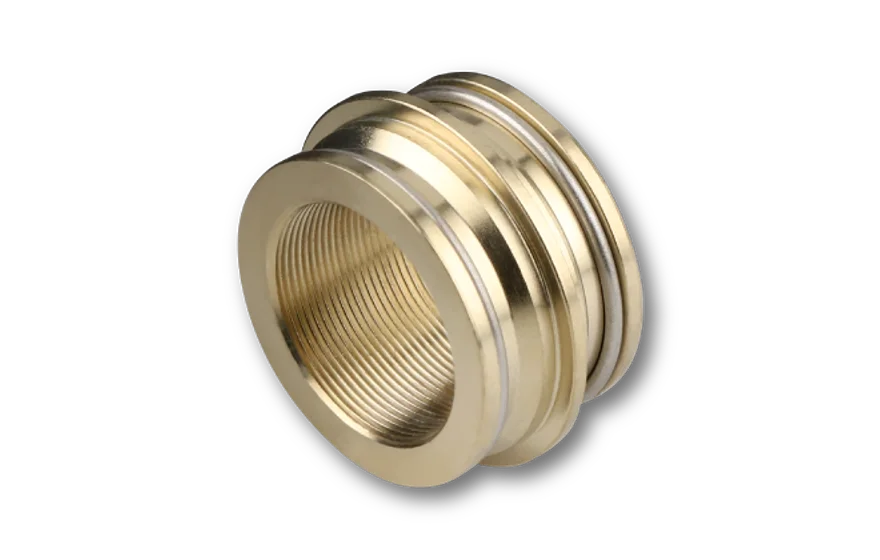

Representative product images. Individual product images are found on the individual product pages.

Features

Adapters to use with fiber collimators and with the multicube™ system.
  • System mount Ø 19.5 mm to System mount Ø 19.5 mm
  • System mount Ø 19.5 mm to fitting bore  Ø 19.5 mm
  • Adapters for M27x0.5 mm, external thread
  • Adapters for C-Mount
  • Adapers for SM1 thread
  • Adapters for Ø 25.4 mm mounted optics
  • Adapters for System mount Ø 25 mm
  • Adapers for RMS
  • and many more

Order options

 System mount
Ø 19.5 mm 		Fitting bore
Ø 19.5 mm 		Fitting bore
Ø 19.5 mm,
long version		Fitting bore
Ø 19.5 mm +
Fitting bore
Ø 8 mm		M27x0.5 mm,
thread, external 		Remarks
System mount Ø 19.5 mm19.5AC19.5AC19.5/19.5-S 8AC19.5-19.5
Fitting bore Ø 19.5 mmAC19.5/19.5-S19.5AM2519.5AM25-L
Fitting bore Ø 19.5 mm, rotary19.5AC-19.5-ROT    Rotary mount
System mount Ø 25 mm19.5AC-25AM19.5/AC25
Fitting bore Ø 12 mm
short version		12AC19.5
Fitting bore Ø 12 mm12AM19.5
Fitting bore Ø 10 mm 10AC19.5
Fitting bore Ø 12 mm +
Fitting bore Ø 8 mm		8AC19.5
Fitting bore Ø 8 mm 8AM-19.5
C-Mount thread, internal
C-Mount thread, externalC-Mount-19.5ACC-Mount-25
C-Mount thread, external +
Fitting bore Ø 8 mm		C-Mount-19.5AC-BL
SM1 thread external
SM1 thread, internalSM1-IG-AC19.5-0   SM1-M27x0.5
SM1 thread, internal, inclinedSM1-IG-AC19.5    Coupling axis inclined 3°
M27x0.5 mm thread, internal AC19.5-M27x0.5
For Ø 25.4 mm mounted optics 19.5AF25.4-S
RMS thread, externalW0.8-19.5
RMS thread, internalW0.8-I-19.5

Overview

Lens CodeA7.5A8A11A15A18M18M20M25M30M35M40M50M60
Focal length f'7.58.011.015.318.418.420.025.030.035.040.050.060.0
Numerical Apperture NA0.30.310.250.160.150.180.170.230.190.160.210.240.14
Clear apert. max. [mm]4.54.935.555.56.66.811.411.411.5172417
Correction - achrom.XXXXX
350 - 700 nm01010101
390 - 670 nm33
400 - 700 nm010101
420 - 700 nm2626
450 - 700 nm040404
600 - 1050 nm0202
600 - 1100 nm0202
630 - 980 nm10
630 - 1080 nm1054
650 - 1050 nm0202
650 - 1150 nm07
750 - 1550 nm3737
980 - 1550 nm080808
1050 - 1650 nm03
1050 - 1550 nm030303
1050 - 1620 nm03
Lens CodeA7.5A8A11A15A18M18M20M25M30M35M40M50M60
Focal length f'7.58.011.015.318.418.420.025.030.035.040.050.060.0
Numerical Apperture NA0.30.310.250.160.150.180.170.230.190.160.210.240.14
Clear apert. max. [mm]4.54.935.555.56.66.811.411.411.5172417
Correction - achrom.XXXXX
