SM1-M27x0.5

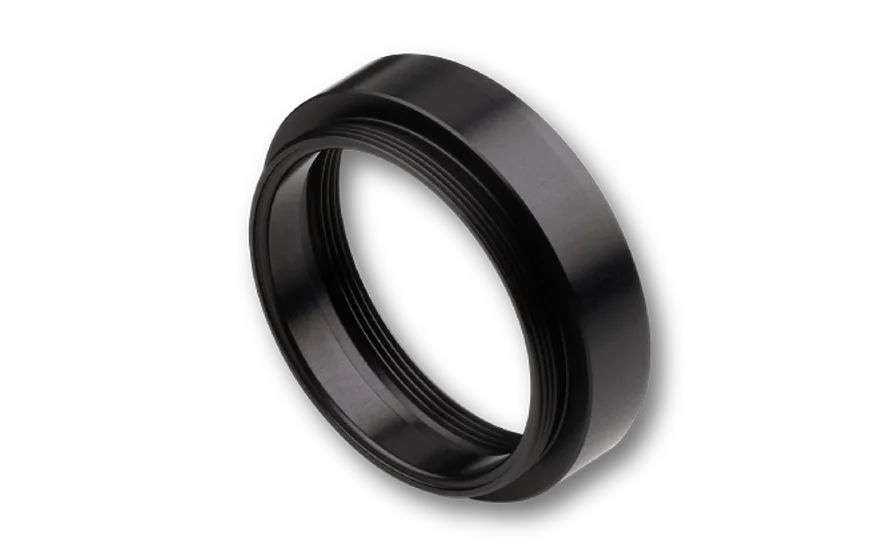

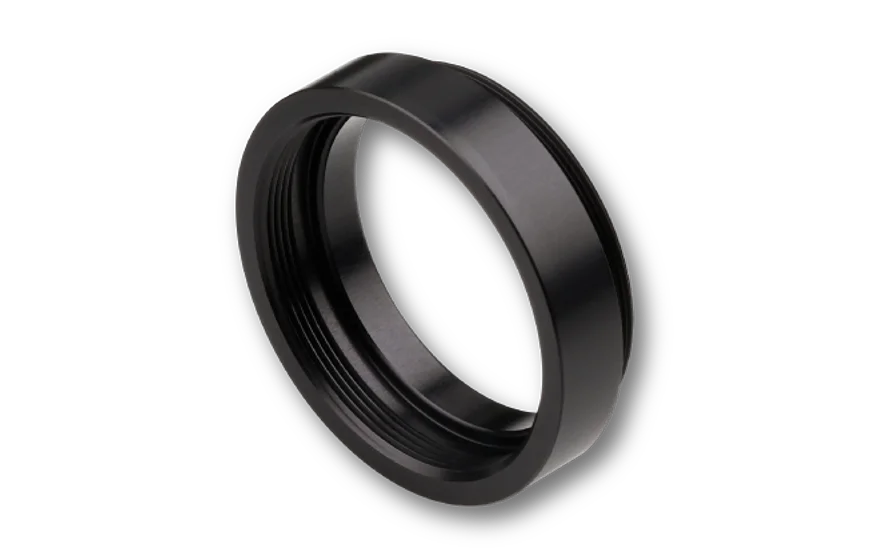

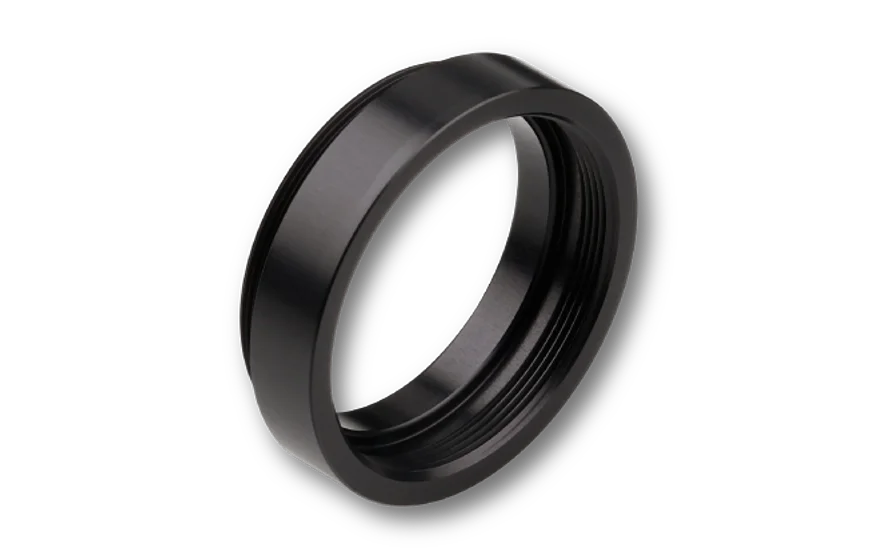

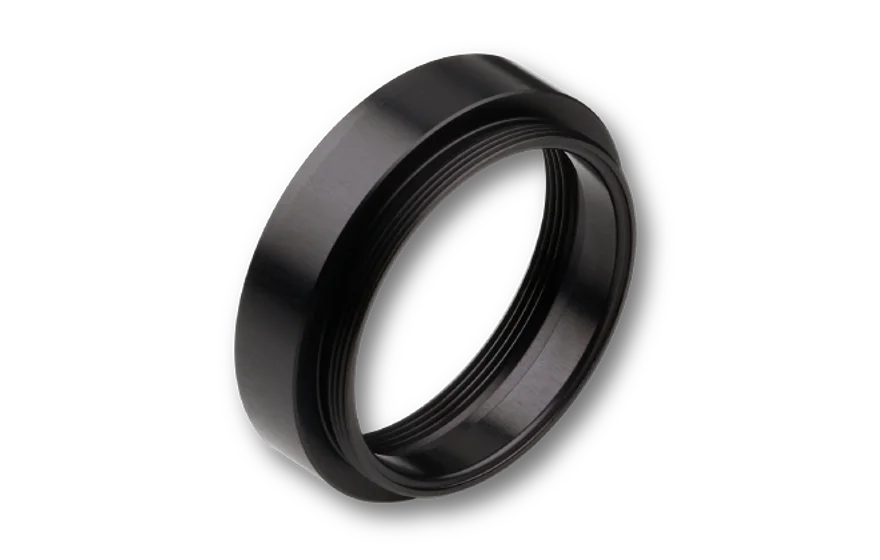

Adapter thread SM1 internal to M27x0.5 mm external

SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5
SM1-M27x0.5

Features

Using the adapter type SM1-M27x0.5, with SM1 internal thread, accessory optics with SM1 external thread are attached to fiber collimators of series 60FC-L and 60FC-T with an outer diameter Ø 32 mm.

  • SM1 thread, internal
  • M27x0.5 mm thread, external
  • Clear aperture Ø 12 mmm

Technical data

SM1-M27x0.5

Order Code
SM1-M27x0.5
Adapter
External thread
Internal thread

M27x0.5 mm
SM1
Clear aperture
Ø 12 mm
Material
Black anodized aluminum
Weight
4 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)
