SM1-IG-AC19.5-0

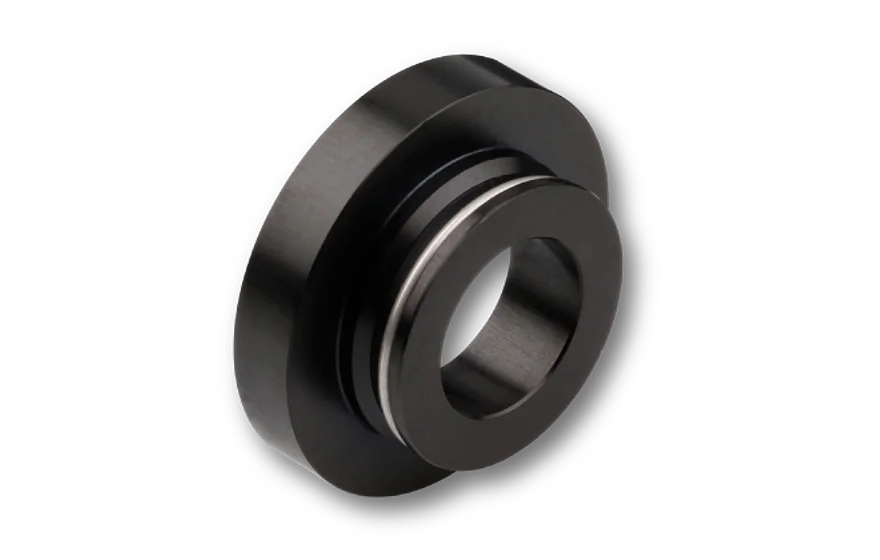

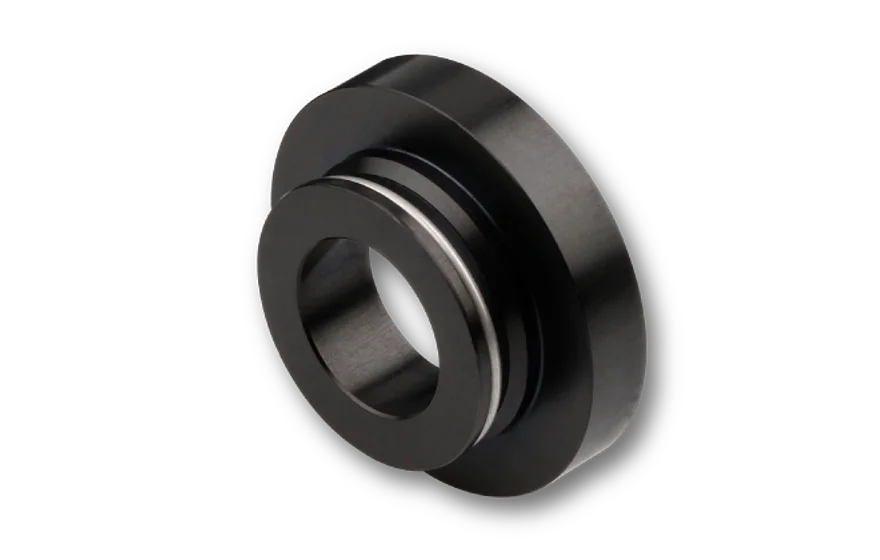

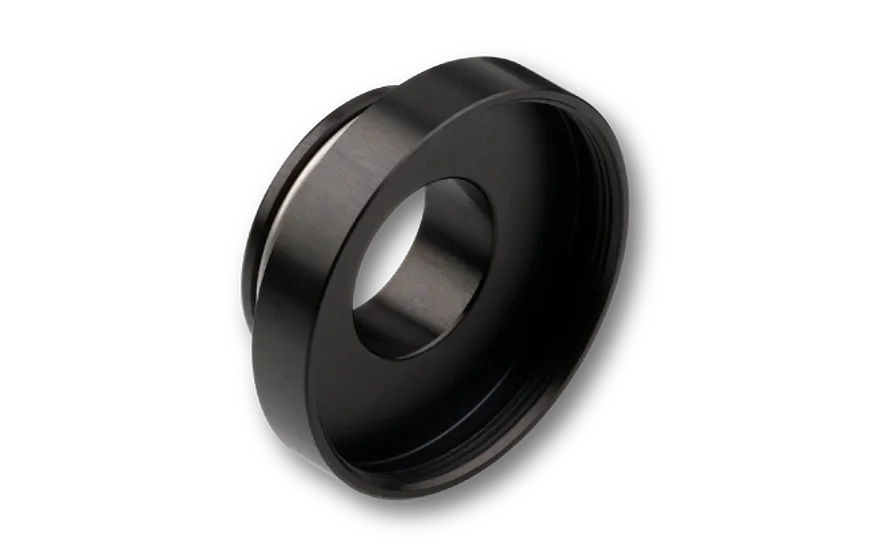

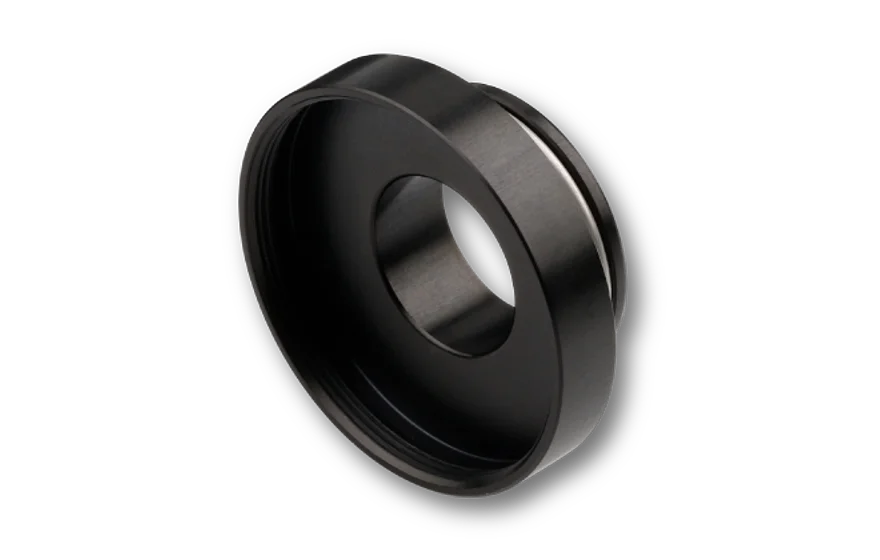

Adapter SM1 thread internal to system mount Ø 19.5 mm

SM1-IG-AC19.5-0

Features

With the adapter SM1-IG-AC19.5-0 you can adapt mounted optics with SM1 external thread to, e.g. fiber collimators of series 60FC-L or 60FC-T with an outer diameter Ø 25 mm.

SM1 thread, internal
System mount Ø 19.5 mm
Clear aperture Ø 12 mm

If you need an adapter with an inclined coupling axis, please refer to SM1-IG-AC19.5.

Technical data

SM1-IG-AC19.5-0

Order Code

SM1-IG-AC19.5

Adapter

System mount

Internal thread

Ø 19.5 mm

SM-1

Steel ring

Clear aperture

Ø 12 mm

Material

Black anodized aluminum

Weight

5 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Downloads

981120100600.pdf (Dimensional drawing)

981120100600.stp (STEP model)

981120100600.stp (STEP model, for registered users only)
