Features

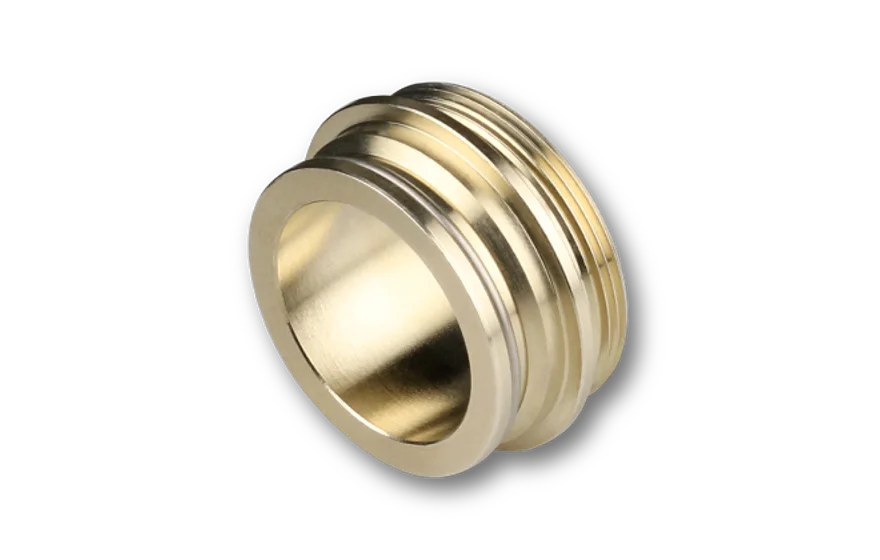

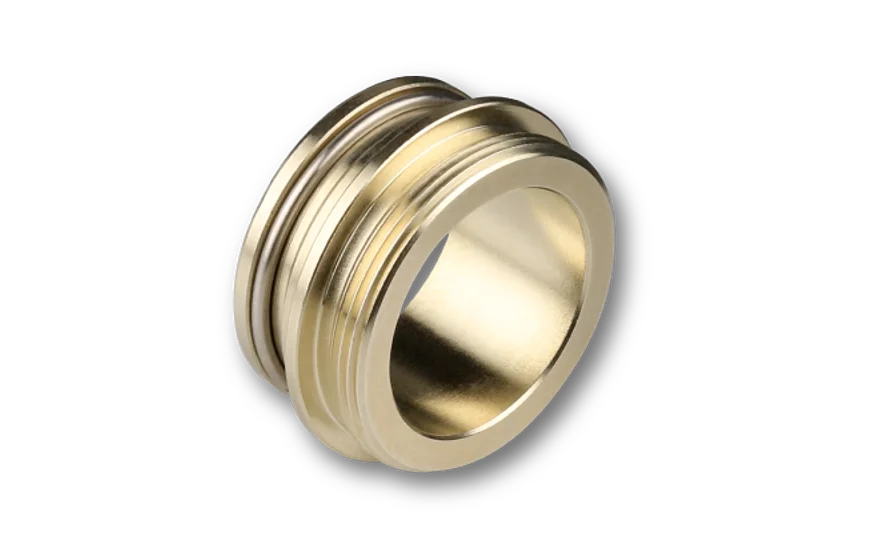

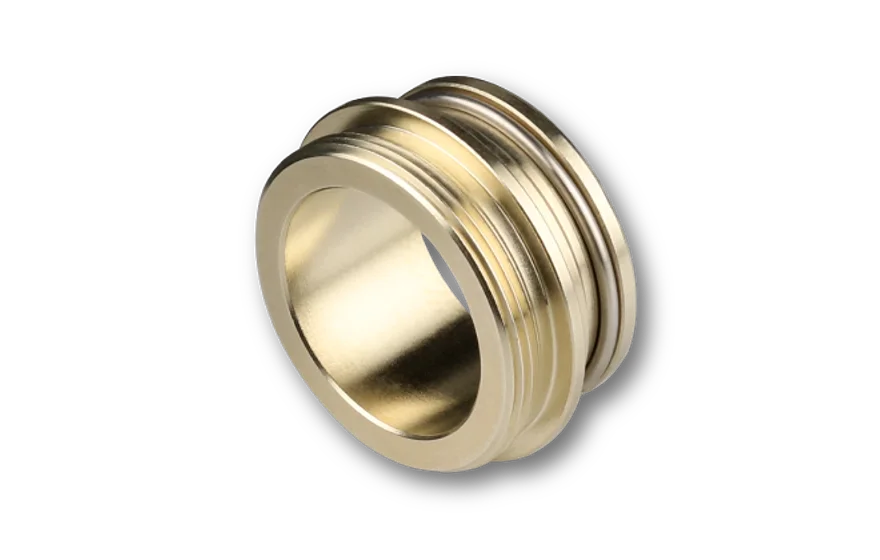

Adapter with external RMS thread (Whitworth thread W 0,8" × 1/36") (for e.g. a microscope lens) to system mount Ø 19.5 mm
- System Mount Ø 19.5 mm
- RMS, thread, external
- Clear aperture Ø 15 mm
Technical data
W0.8-19.5
Order Code
W0.8-19.5
Adapter
System mount
Outer thread
Ø 19.5 mm
W 0.8" × 1/36
Steel ring
Clear aperture
Ø 15 mm
Material
Nickel silver / steel
Weight
11 g
Dimensions (for a complete dimensional drawing please refer to the downloads section)
