Features

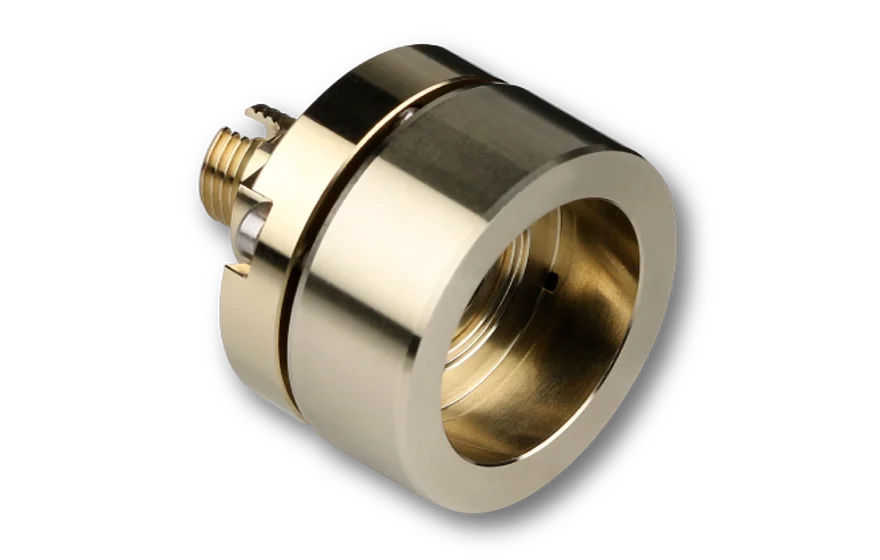

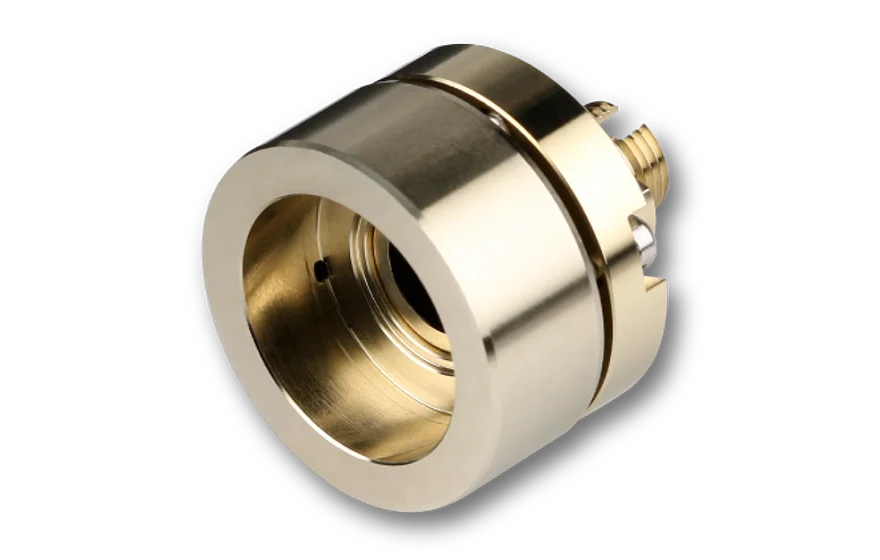

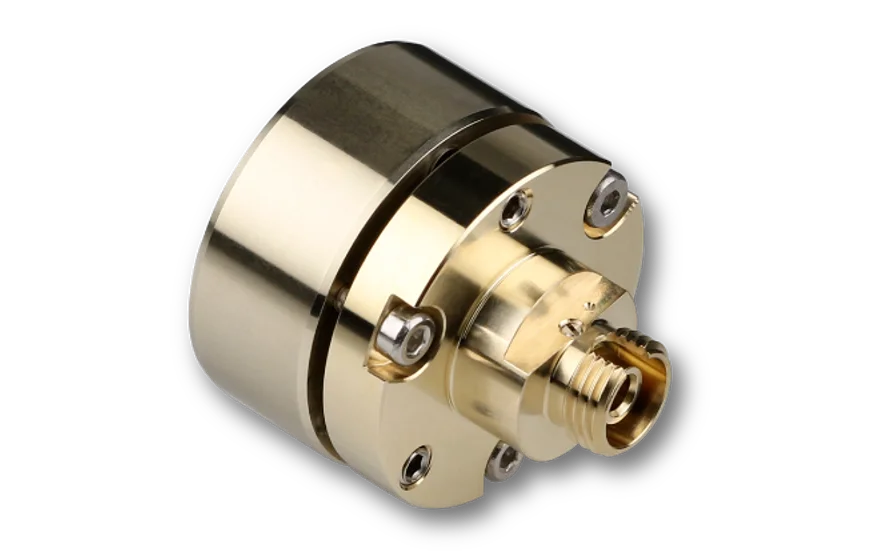

Bulkhead fiber adapter
- Receptacle type FC APC
- Outer diameter Ø 25 mm
- Inclined coupling axis
- TILT alignment
Description
Technical data
25AM-4-FC
Order Code
25AM-4-FC
Adapter
Outer diameter
FC APC
Ø 25 mm
Inclined coupling axis
4° (for 8° polished connectors)
TILT alignment
± 1.5°
Material
Nickel silver
Weight
45 g
Dimensions (for a complete dimensional drawing please refer to the downloads section)
