60FC-MAV-4-M12-08-Ti-V

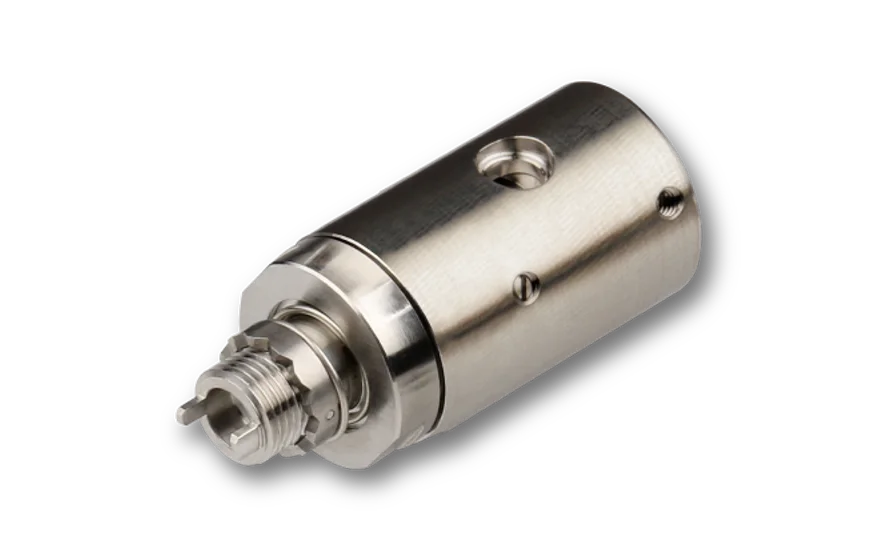

Fiber Coupler for collimating radiation exiting an optical fiber or as incoupler

60FC-MAV-4-Ti-V

Features

The amagnetic fiber collimator is designed for collimating radiation exiting from an optical fiber cable or used in reverse for coupling a beam into an optical fiber cable.

Focal length 12 mm
Optics type: Doublet optics, Monochromatic
AR-Coating: 980 - 1550 nm
Mini AVIM ® type receptacle (APC): compatible with fiber connectors type Mini AVIM ® and Midi AVIM ®
Front connector accepts attachment optics
Compact Ø 12 mm housing
Titanium design

Description

The fiber collimators series 60FC is designed for collimating radiation exiting optical fiber cables with high pointing stability. They can also be used in reverse-mode as fiber incouplers. They are suitable for single-mode and polarization-maintaining fiber cables leading to collimated beams with a Gaussian intensity profile. Please note that for multimode collimation the intensity profile is not Gaussian and depends on certain fiber and radiation properties.

The features of the coupler type 60FC include:

Optics
The monochromat with focal length 12 mm is designed for collimating single wavelengths. It is AR-coated from 980 - 1550 nm. It is corrected for spherical aberrations and designed in such a way that it leads to a diffraction-limited beam with an M² < 1.05. The focus position varies strongly with wavelength so that the collimator has to be recollimated after any changes to the wavelength. It is not suitable for UHV applications.

Adjustment of focus
The distance between fiber end-face and collimating optics is adjusted by means of an eccentric key. The lens does not rotate when adjusting the focus. The final focus setting is locked by means of two radially arranged clamping screws. Additionally attachment optics of series 60FC can be mounted to the front of the collimator.

Optimum lens performance
The angled polish of connectors of type APC is considered by a pre-angled mechanical coupling axis that compensates the beam deflection and you can use the lens centrically. This minimizes aberrations simply resulting from a non-ideal beam path through the lens.

Connector Type
The fiber coupler has a receptacle of type Mini AVIM ® , APC (for fibers with 8°-polish). The receptacle type Mini AVIM ® is compatible with fiber connectors type Mini AVIM ® and Midi AVIM ®. Compatible fiber cables can be found on www.diamond-fo.com.

Material
The fiber collimator type 60FC is made from amagnetic titanium.The linear coefficient of thermal expansion is close to that of the optics so that a thermal stability over a larger temperature range can be expected. The collimator is vacuum-compatible.

Mounting
The collimator can be placed into a standard mirror mount using the corresponding adapters.
