13MK-25-3D-M

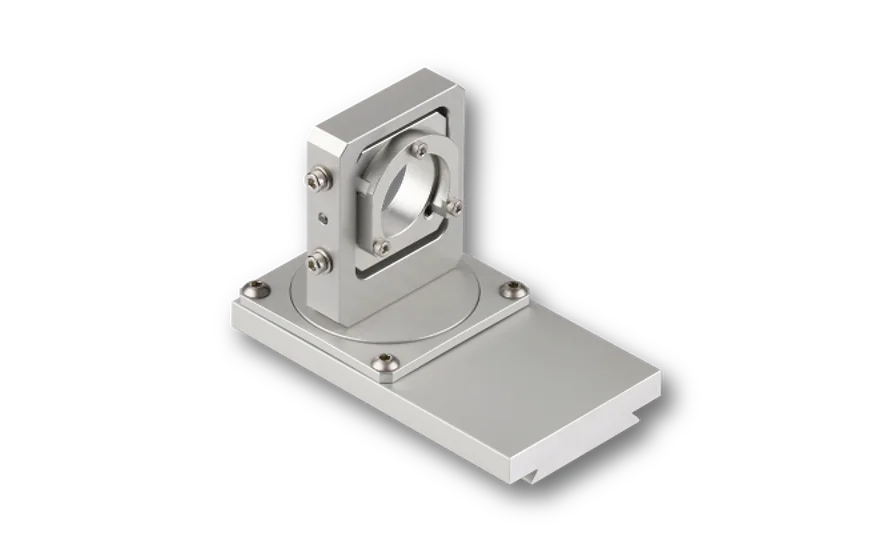

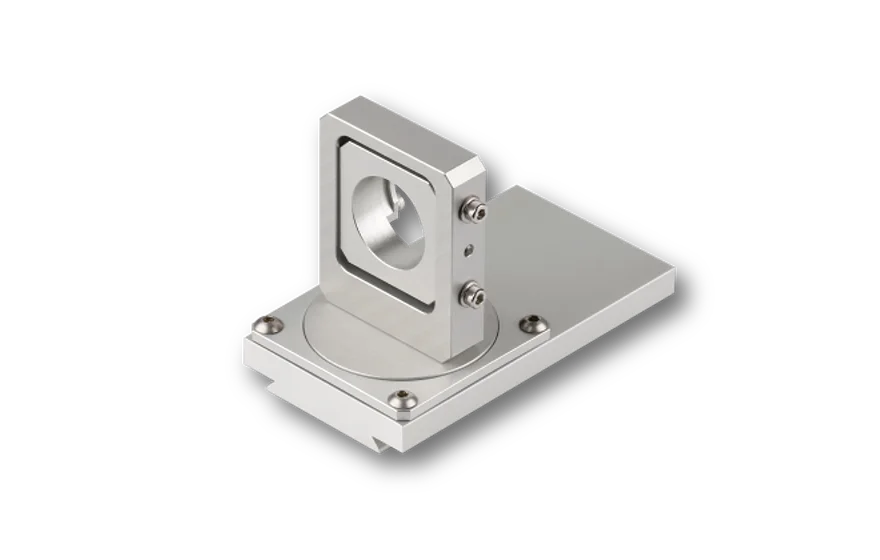

Mounting Console with base plate with dovetail profile

13MK-25-3D-M
13MK-25-3D-M
13MK-25-3D-M
13MK-25-3D-M
13MK-25-3D-M
13MK-25-3D-M

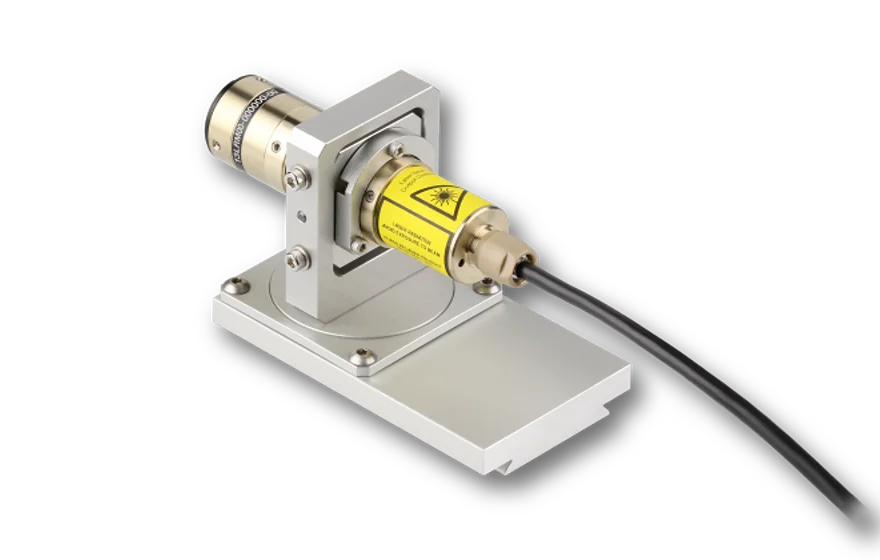

Example of use

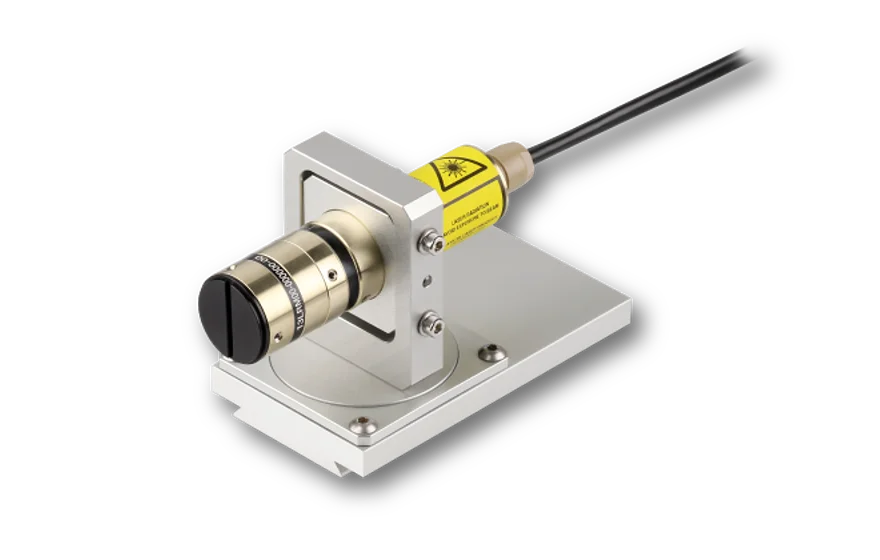

Example of use

Features

The Mounting Consoles of type 13MK-25-3D-M with base plate with dovetail profile allow a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar and the focussing and focus locking mechanism remain accessible.

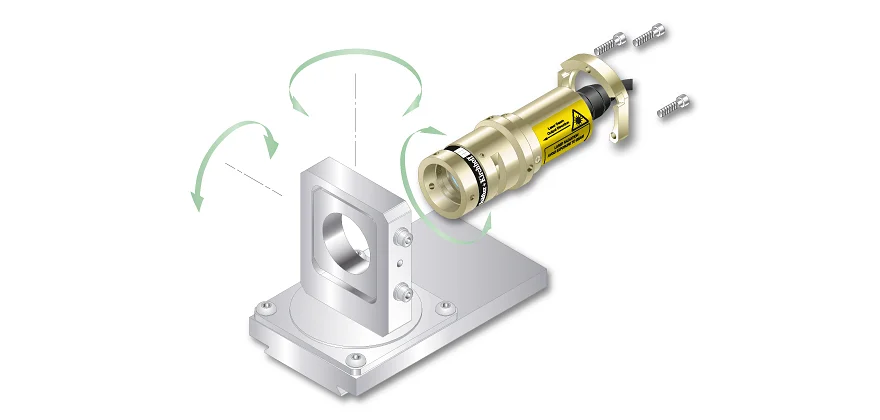

The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:
  • Rotation (0 - 360°) around the optical axis
  • In-plane rotation (0 - 360°)
  • Tilt (inclination, ± 5°)
The Mounting Console has a base plate with (compatible to Quick-Set 40 and XT66)

Description

The Mounting Consoles of type 13MK-25-3D-M with base plate with dovetail profile allow a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such away that the focussing and focus locking mechanism remain accessible. The Mounting Console provides 3 degrees of freedom:

  • Rotation (0 - 360°) around the optical axis
  • In-plane rotation (0 - 360°)
  • Tilt (inclination, ± 5°)

The Mounting Console has a base with dovetail (compatible to Quick-Set 40 and XT66)

The Mounting Console is designed for all lasers with Ø 25/28 mm. For Laser Line Generators with a fan angle, e.g. 13LR, 13LN or 5LM and 5LP the mounting console type 13MK-25-36-10-M might be sufficient.
13MK-25-3D-M

Downloads

Dimensional drawing
930412090400.pdf (Dimensional drawing)
