25BL1-20

Iris diaphragm for fiber collimators with diameter Ø 32/34.5 mm

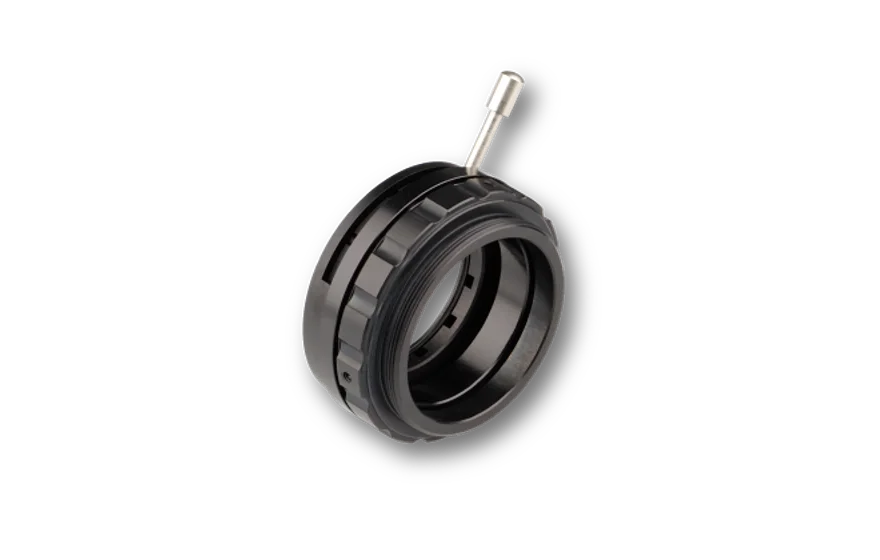

Iris diaphragm 25BL1-20

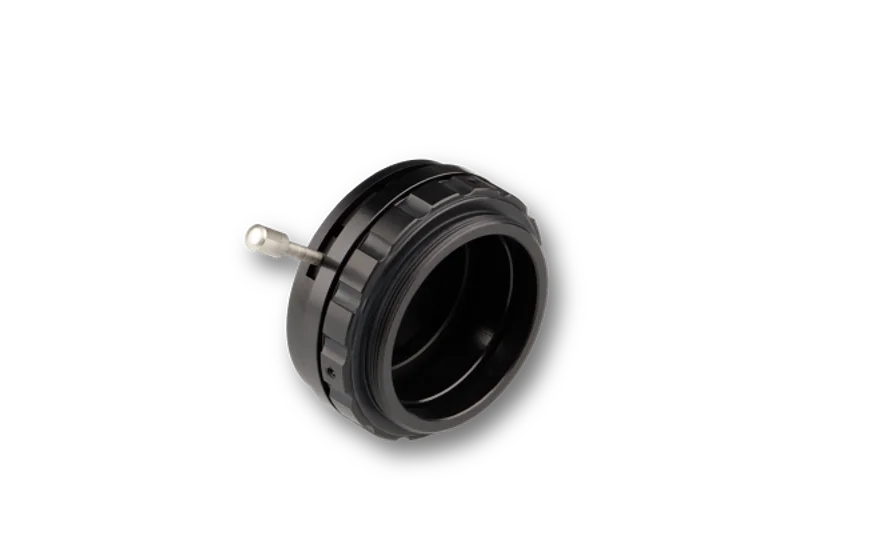

Iris diaphragm 25BL1-20

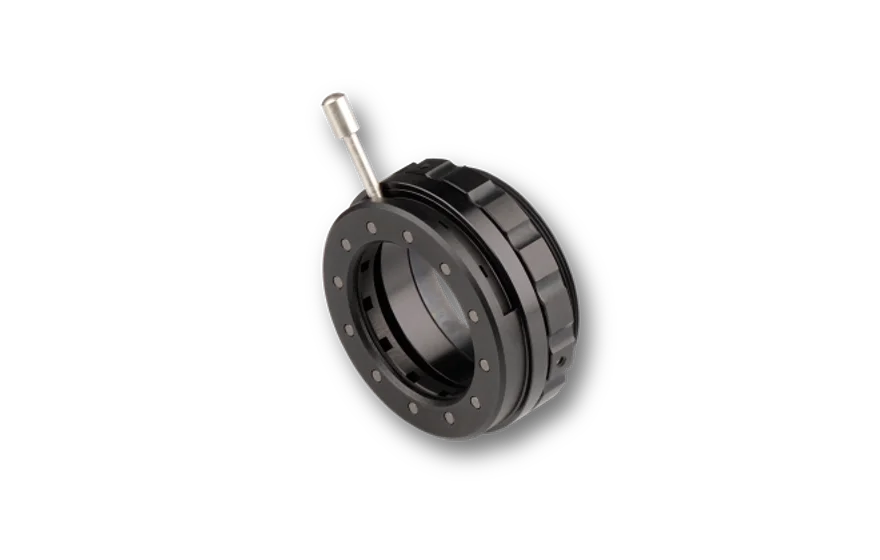

Iris diaphragm 25BL1-20
Iris diaphragm 25BL1-20
Iris diaphragm 25BL1-20
Iris diaphragm 25BL1-20
Iris diaphragm 25BL1-20
Iris diaphragm 25BL1-20

Features

Iris diaphragm with an variable aperture for fiber collimators series 60FC-L/T/Q
with an outer diameter Ø 32 mm.
  • Thread mount M27x0.5 mm
  • Min. aperture Ø 1 mm
  • Max. aperture Ø 20 mm
Please note: In case of use with a single-mode / PM-fiber, the Gaussian beam from the fiber collimator is truncated by the iris diaphragm or by the pinhole

Downloads

Dimensional drawing
980244030100.pdf (Dimensional drawing)
Dimensional drawing
980244030100.pdf (Dimensional drawing, for registered users only)
