Features
Compact collimator with elliptical Gaussian beam profile- Collimated beam diameter (1/e^2-level): 1.7 x 4 mm
- Beam divergence (1/e^2-level): 0.24 x 0.11 mrad
- Wavelength: 660 nm
Description

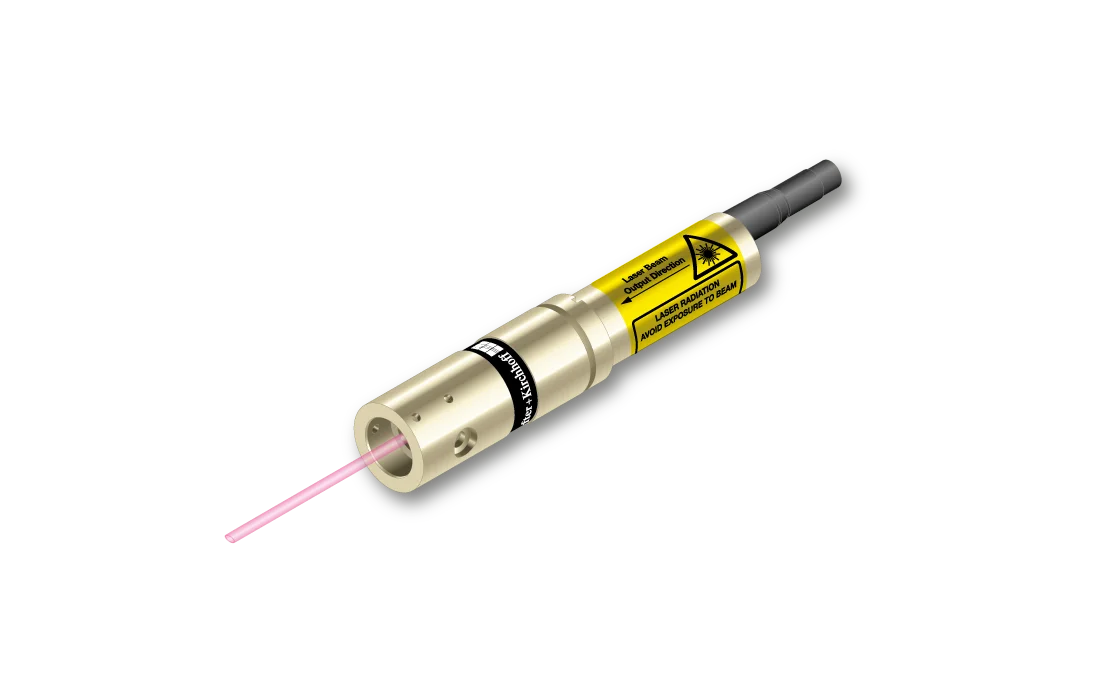

The Laser Diode Collimators type 25CM-660-25-M01-A6.2-S-6 transforms the divergent light of a laser diode into a collimated beam, while maintaining the Gaussian intensity distribution and the elliptical intensity profile.
The laser has integrated electronics type S for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

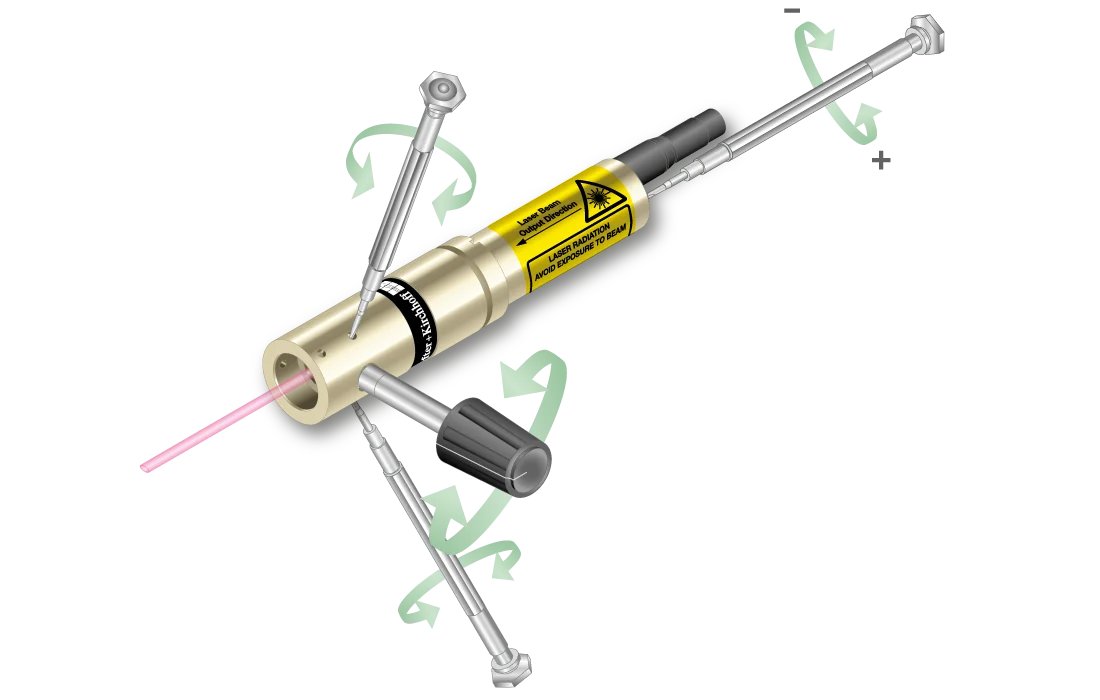

The collimation can be adjusted by using an eccentric key. Please note that this affects beam parameters like collimated beam diameter and beam divergence.
Technical data
25CM-660-25-M01-A6.2-S-6
Order Code
25CM-660-25-M01-A6.2-S-6
Laser type
CW Laser
Wavelength
660 +5/-5 nm
Laser output power
25 mW
Laser safety class
3B
Collimated beam diameter (1/e^2-level)
1.7 x 4 mm
Clear aperture
4.8 mm
Truncated
no
Beam divergence (1/e^2-level)
0.24 x 0.11 mrad
Diameter laser module
12 mm
Module length
59.5 mm
Installation length
89.5 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.25 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
50 kHz
1000 kHz
Modulation delay ON/OFF
4/0.5 µs
0.05/0.05 µs
Rise / Fall time
5/4 µs
0.1/0.02 µs
Dimensions (for a complete dimensional drawing please refer to the downloads section)
