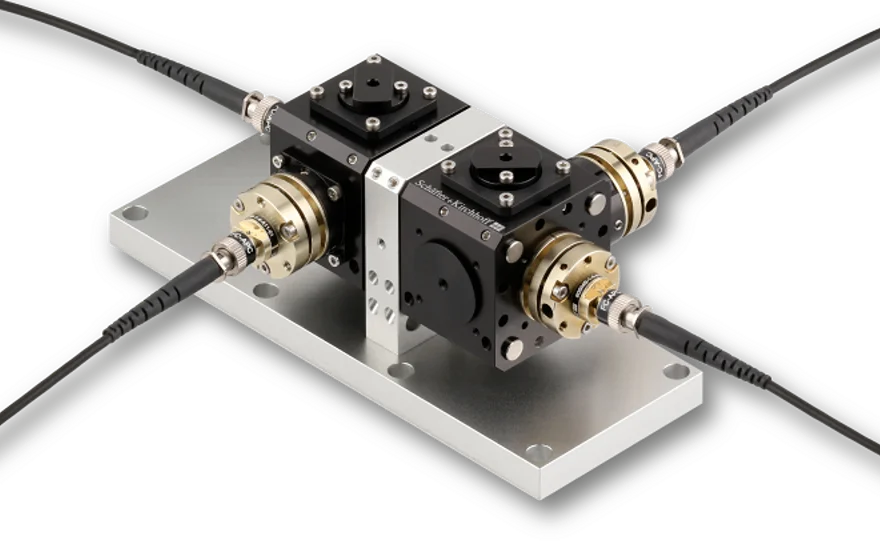

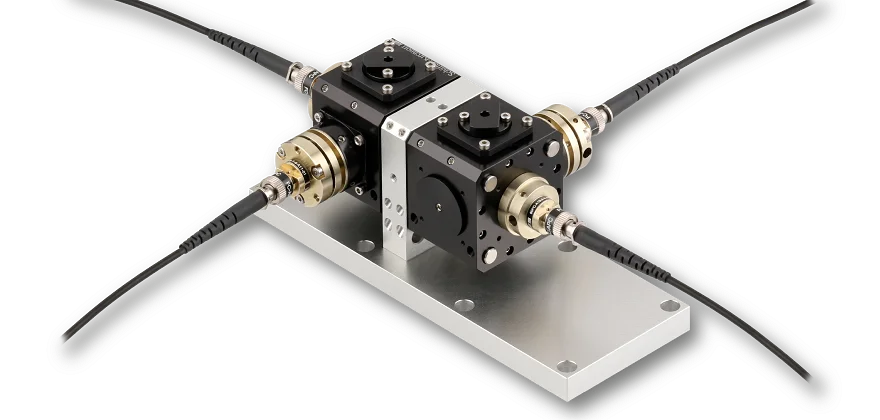

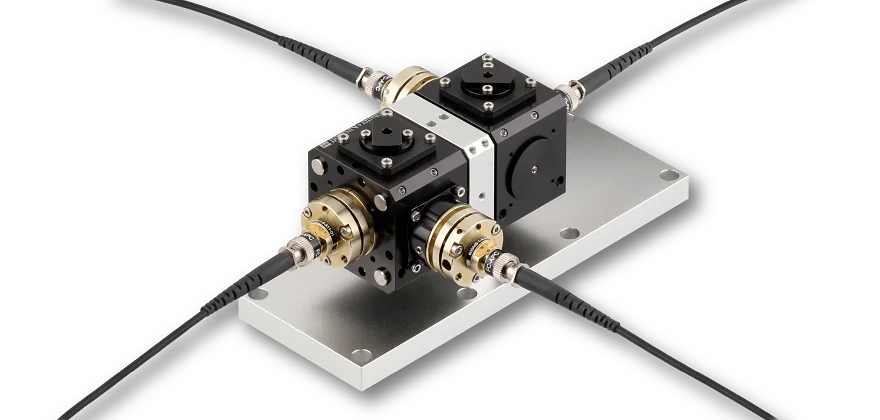

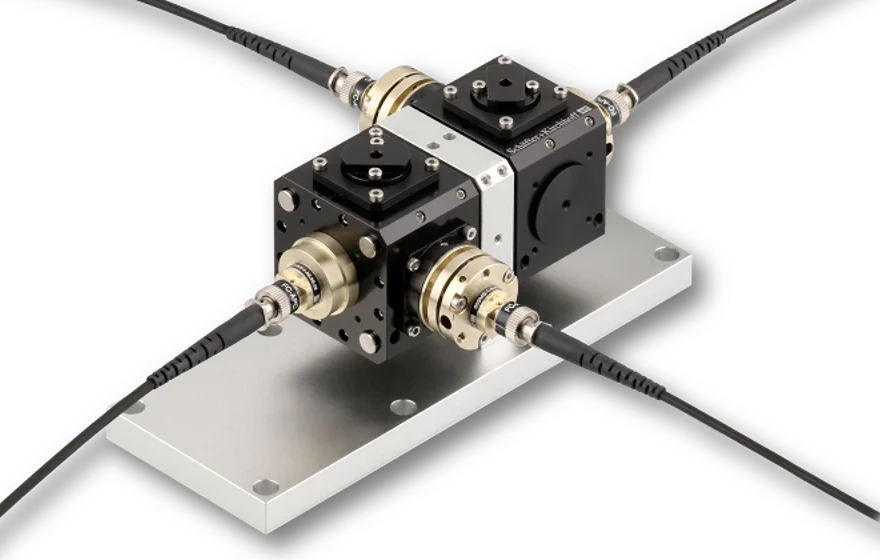

48-RGB-002

Dichroic RGB Beam Combiner multimode

48-RGB-002

RGB

Features

Dichroic RGB Beam Combiner

Configuration with 3 input ports
Based on dichroic long-pass or short-pass mirrors
Large variety of edge wavelengths
Highly efficient coupling into multimode fiber cables
Compact, rugged, transportable and sealed opto-mechanical units
Fully fiber-coupled
Very high long-term stability, efficiency and reproducability

Description

This dichroic RGB Beam Combiner is a compact opto-mechanical units that combines three fiber-coupled sources with different wavelengths into a common output fiber cable with high efficiency.

Optical Setup
The input ports are fiber-coupled to MM fiber cables.
The different wavelengths are superimposed by means of dichroic mirrors. A summery of typical splitters can be found here.

Fiber Couplers
A fundamental component of the fiber-coupled Beam Combiner is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation, respectively. The stability of the total fiber-coupled Beam Combiner is determined by the stability of the laser beam coupler.
