RGB fiber optic componentsRGB

Features

Dichroic RGB Beam Combiner
  • Configuration with 3 input ports
  • Based on dichroic long-pass or short-pass mirrors
  • Large variety of edge wavelengths
  • Polarizer for increasing the PER at the common output
  • Highly efficient coupling into polarization-maintaining fiber cables
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Fully fiber-coupled
  • Very high long-term stability, efficiency and reproducability

Description

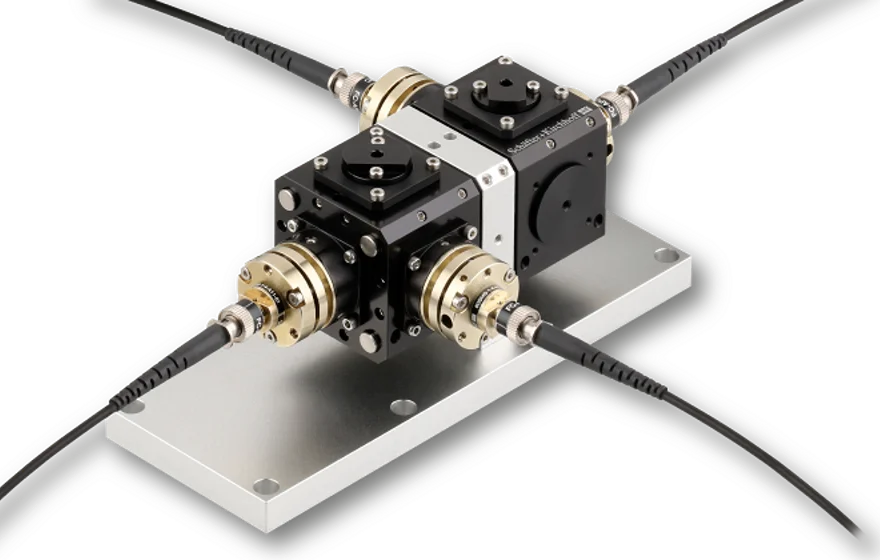

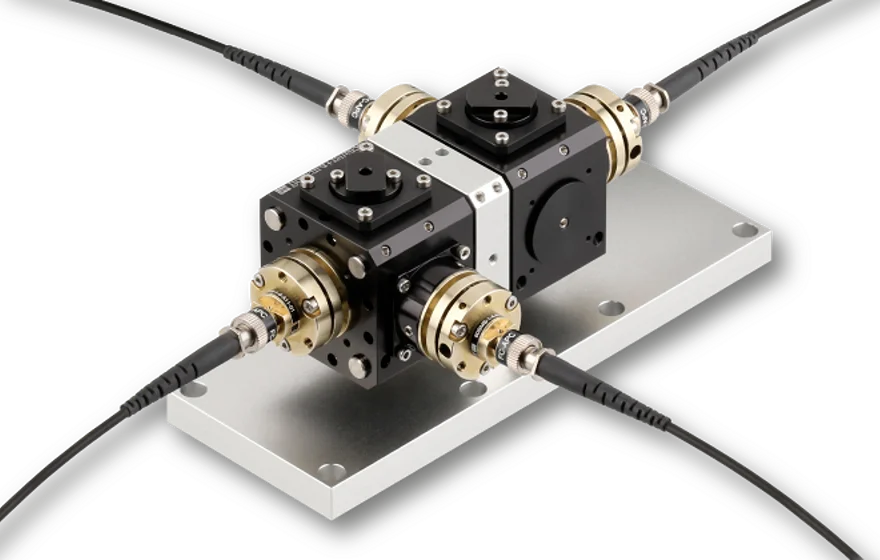

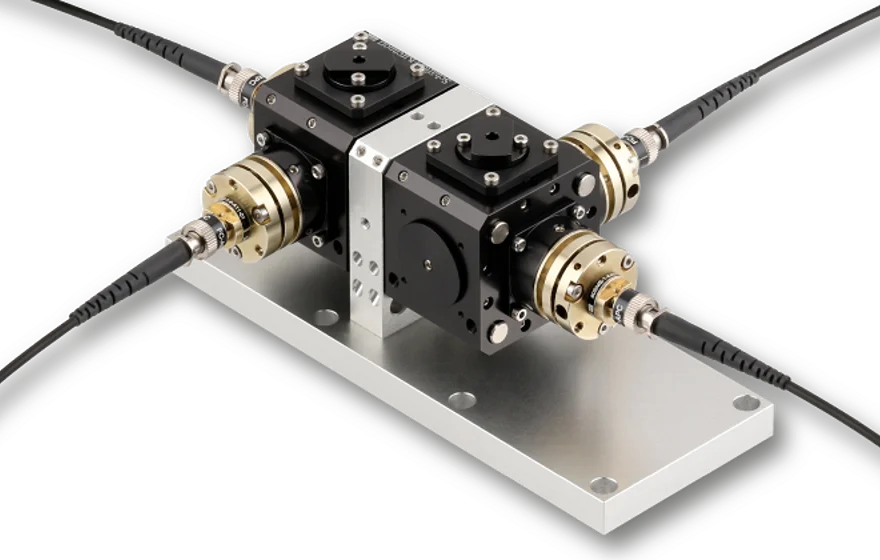

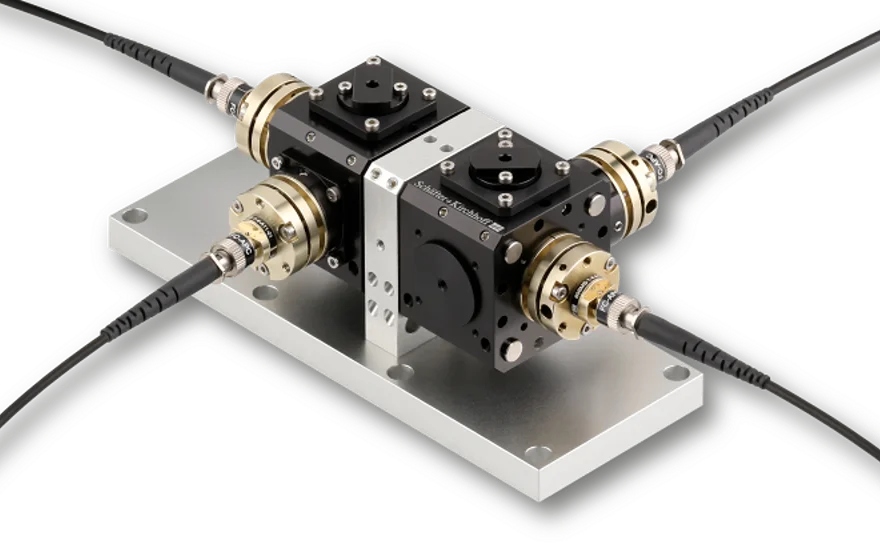

This dichroic RGB Beam Combiner is a compact opto-mechanical units that combines three fiber-coupled sources with different wavelengths into a common output fiber cable with high efficiency.

Optical Setup
The three input ports are fiber-coupled to PM fiber cables.
The different wavelengths are superimposed by means of dichroic mirrors. A summery of typical splitters can be found here.
At the output port, a polarizer is placed in order to define the polarization at output of the system.

Fiber Couplers
A fundamental component of the fiber-coupled RGB Beam Combiner is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation, respectively and, finally, couples the radiation back into the polarization-maintaining fiber cable. The stability of the total fiber-coupled Beam Combiner is determined by the stability of the laser beam coupler.
