RGBV fiber optic componentsRGBV

Features

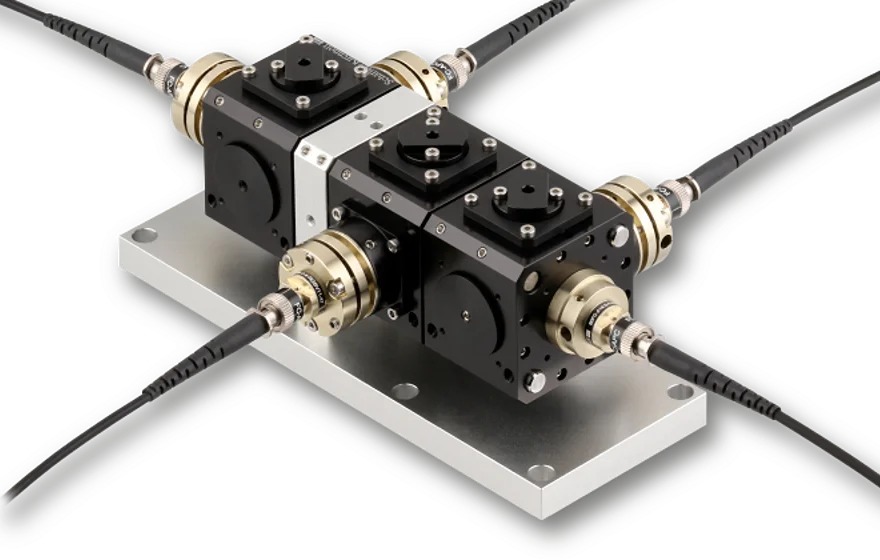

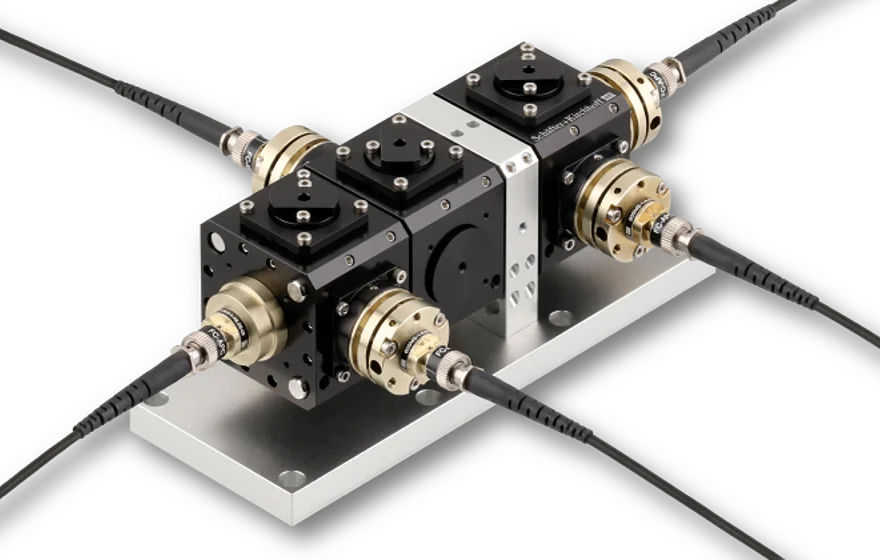

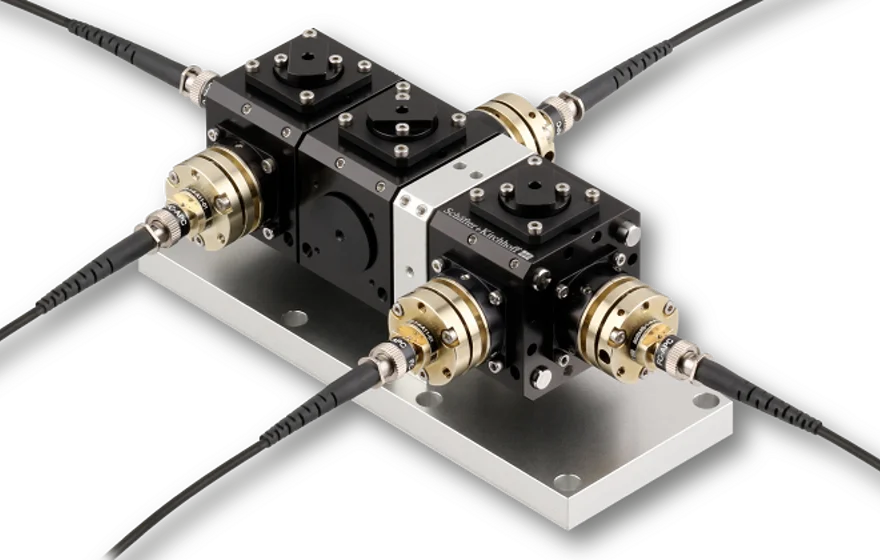

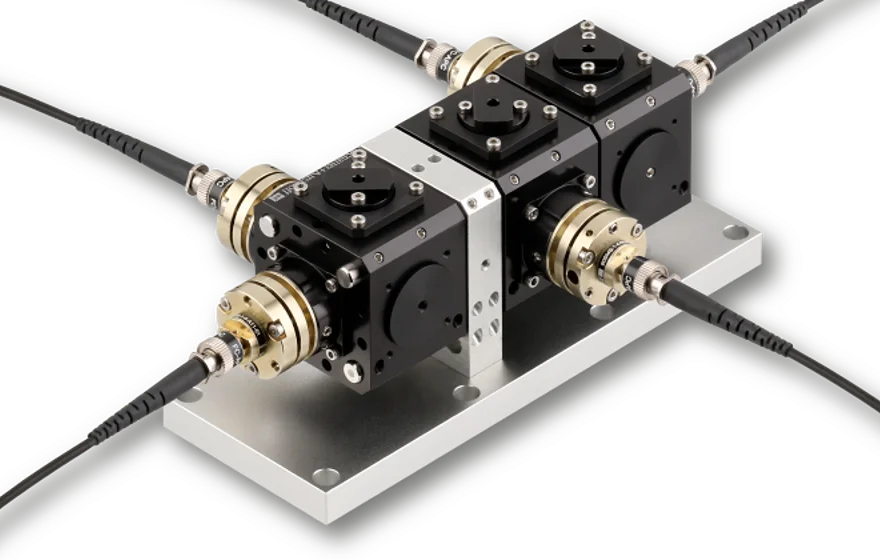

Dichroic RGBV Beam Combiner
  • Configuration with 4 input ports
  • Based on dichroic long-pass or short-pass mirrors
  • Large variety of edge wavelengths
  • Highly efficient coupling into multimode fiber cables
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Fully fiber-coupled
  • Very high long-term stability, efficiency and reproducability

Description

This dichroic RGBV Beam Combiner is a compact opto-mechanical units that combines three fiber-coupled sources with different wavelengths into a common output fiber cable with high efficiency.

Optical Setup
The input ports are fiber-coupled to MM fiber cables.
The different wavelengths are superimposed by means of dichroic mirrors. A summery of typical splitters can be found here.


Fiber Couplers
A fundamental component of the fiber-coupled Beam Combiner is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation, respectively. The stability of the total fiber-coupled Beam Combiner is determined by the stability of the laser beam coupler.

Technical data

48-RGBV-002

Order code
48-RGBV-002
Configuration
4 ⇾ 1
Wavelengths
Customer-specific
Fiber type
multimode
Connector type
FC APC (standard)
Cable lengths
Customer-specific
Transmission
Dependent on the used dichroics
