Features

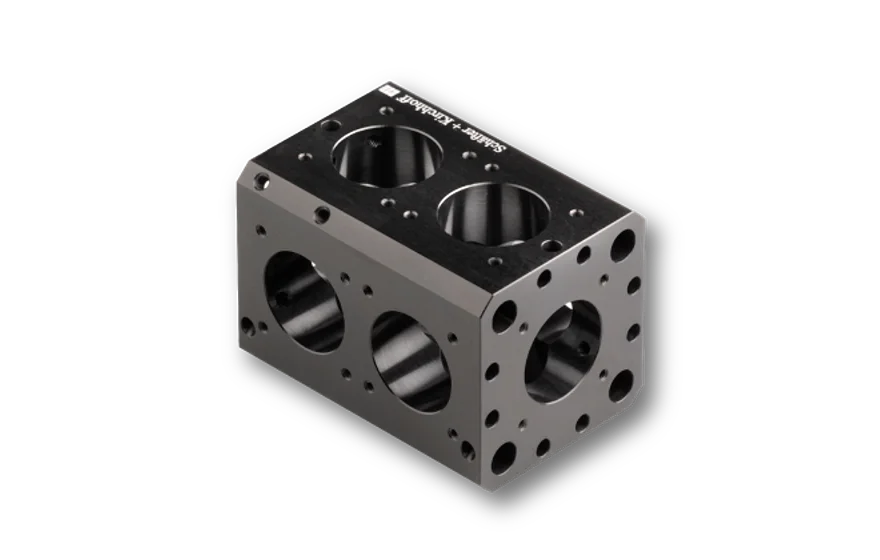

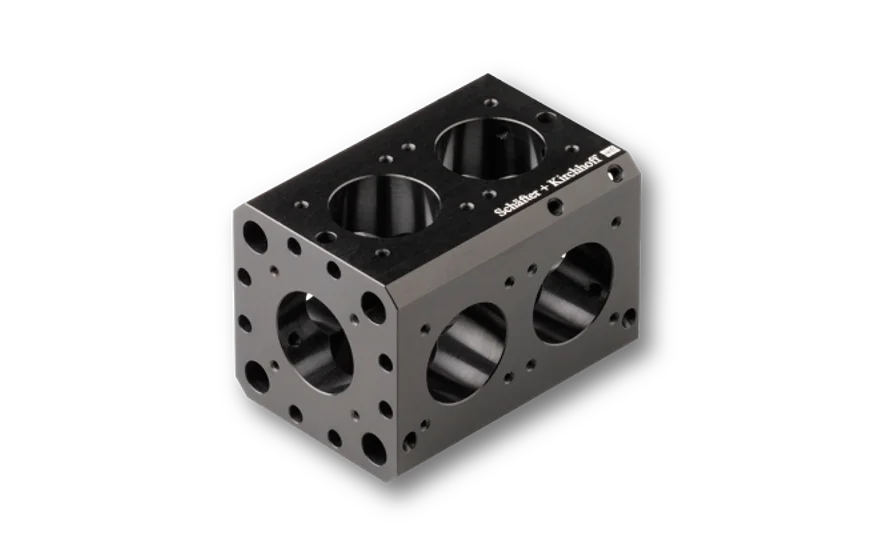

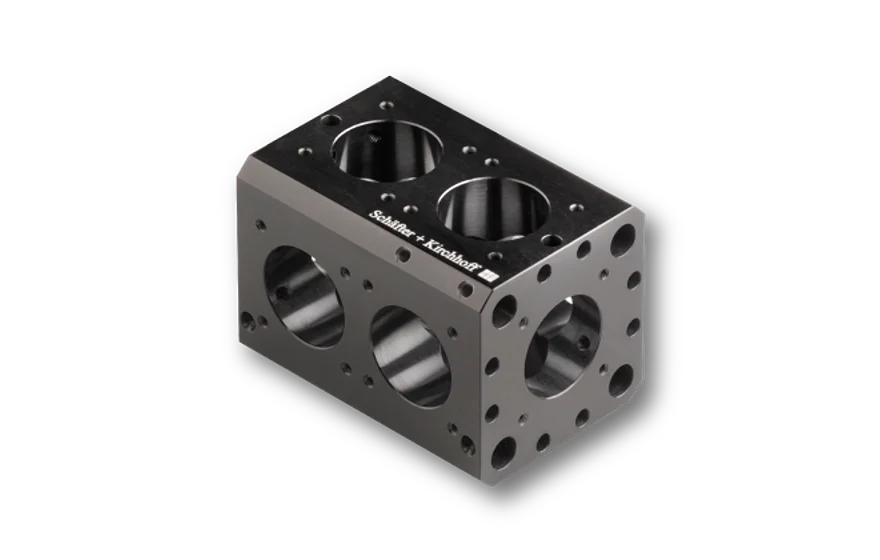

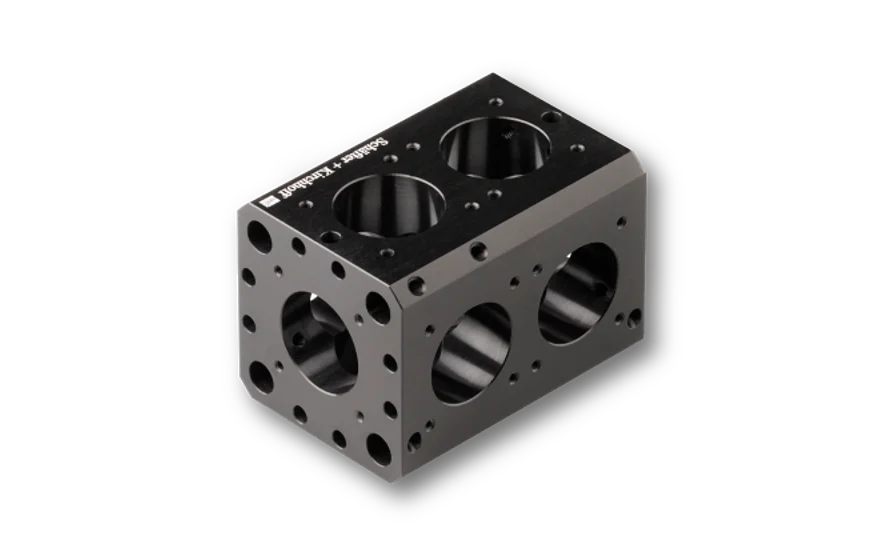

Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Double cube with through-holes for linear arrangements.
Technical data
48MC-LI-19.5
Order Code
48MC-LI-19.5
Type
Double cube
for linear configuration
Dimensions
42 x 42 x 60 mm
Fitting bore
Ø 19.5 mm
Material
Black anodized aluminum
Weight
129 g
FAQ
- Compatability of the multicube system
- Is my system compatible to established 30 mm cage systems or microbench systems?The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
- Is my system compatible to established 60 mm cage systems?
The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.
If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.
