Features
Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.

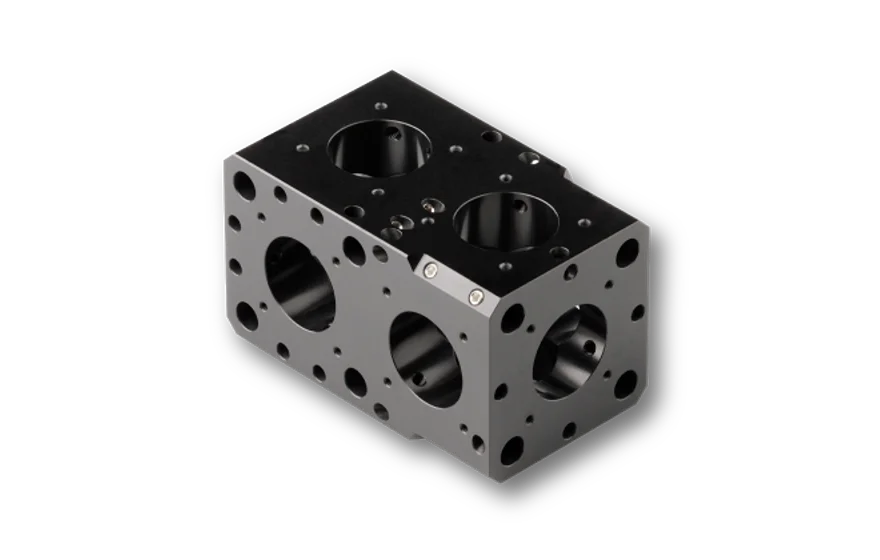

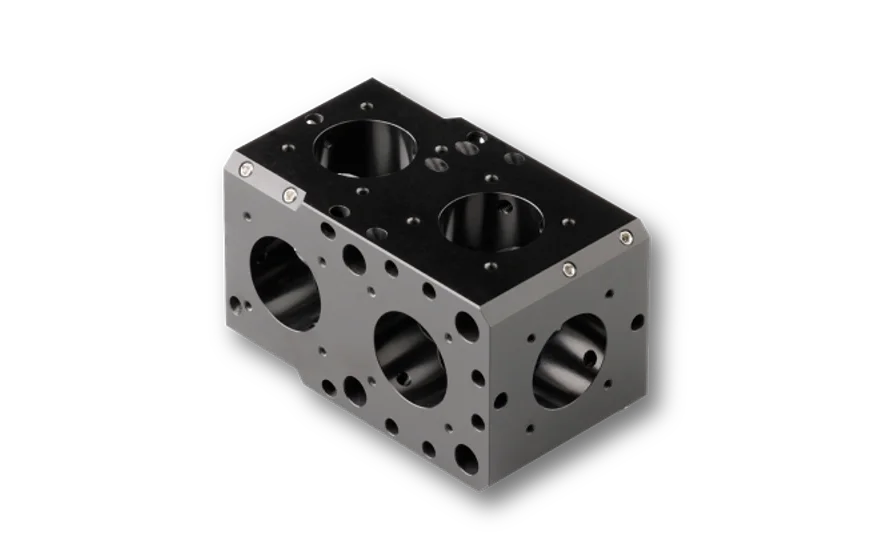

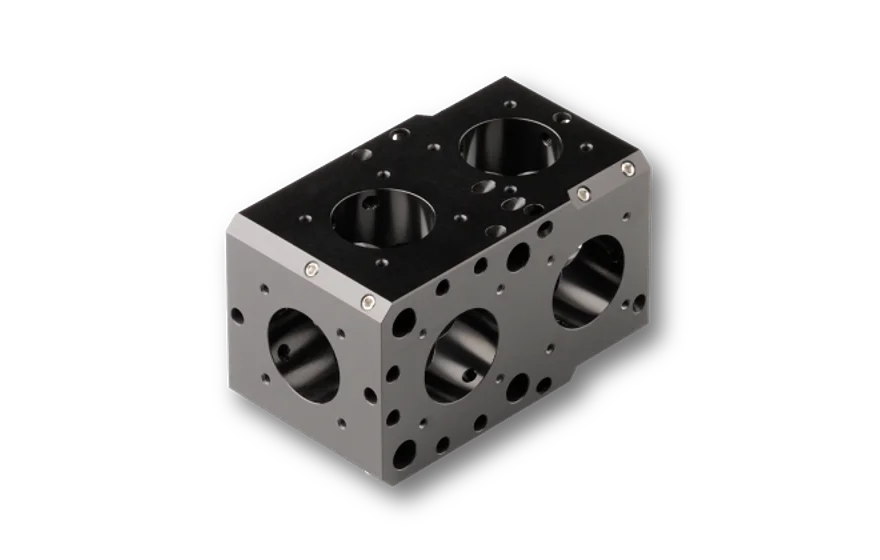

Double cube for T-arrangements.
Double cube for T-arrangements.
Technical data
48MC-LT-19.5
Order Code
48MC-LT-19.5
Type
Double cube
for 'T' configuration
Dimensions
42 x 42 x 72 mm
Fitting bore
Ø 19.5 mm
Material
Black anodized aluminum
Weight
181 g
FAQ
- Compatability of the multicube system
- Is my system compatible to established 30 mm cage systems or microbench systems?The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
- Is my system compatible to established 60 mm cage systems?
The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.
If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.
Downloads
Benefits of user registration include
- Extended information for download including stepfiles, software or manuals
- Direct download of user-specific downloads (e.g. user-specific software)
- Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
- Stored item list
